Vendor: ONKA

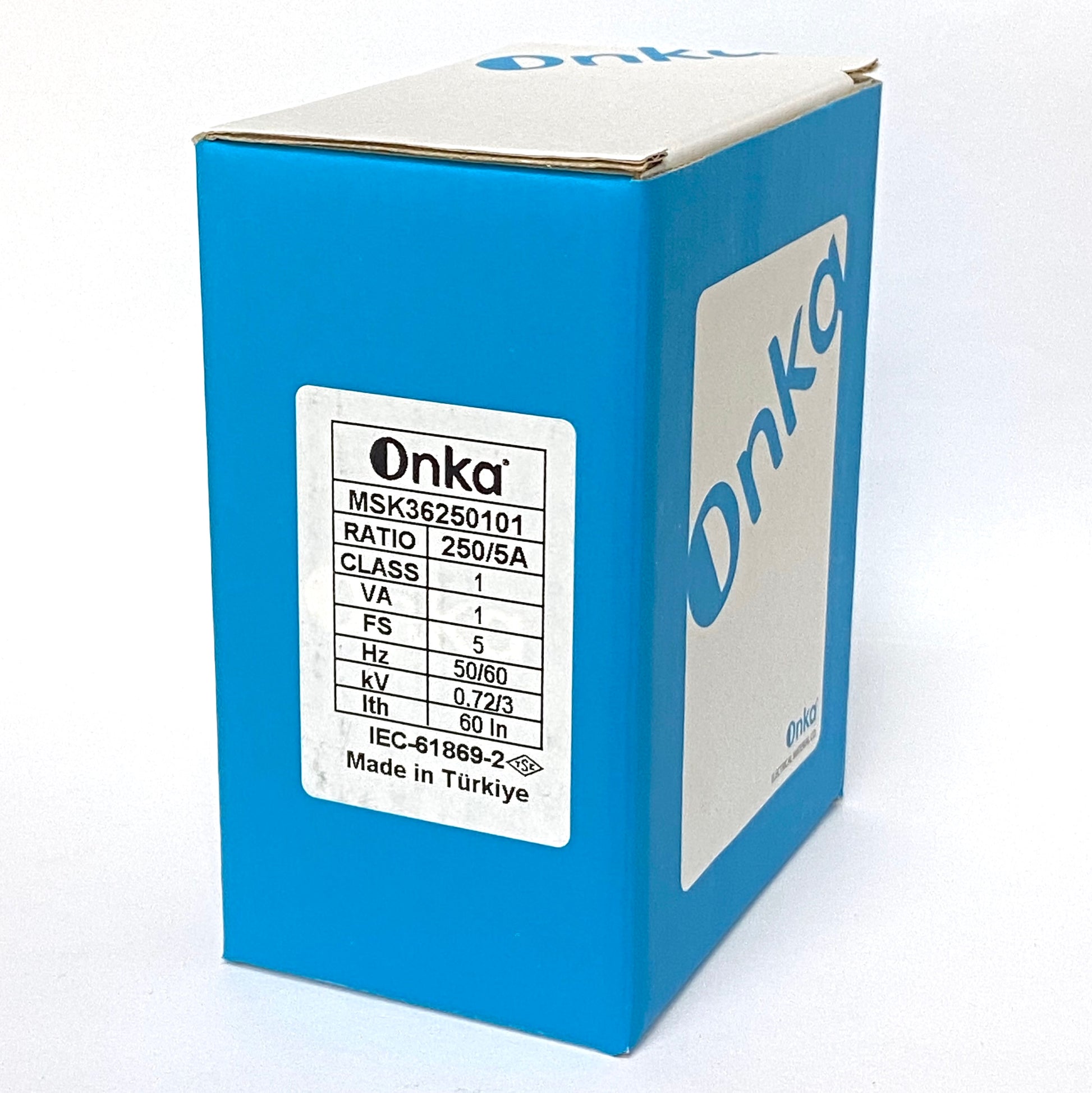

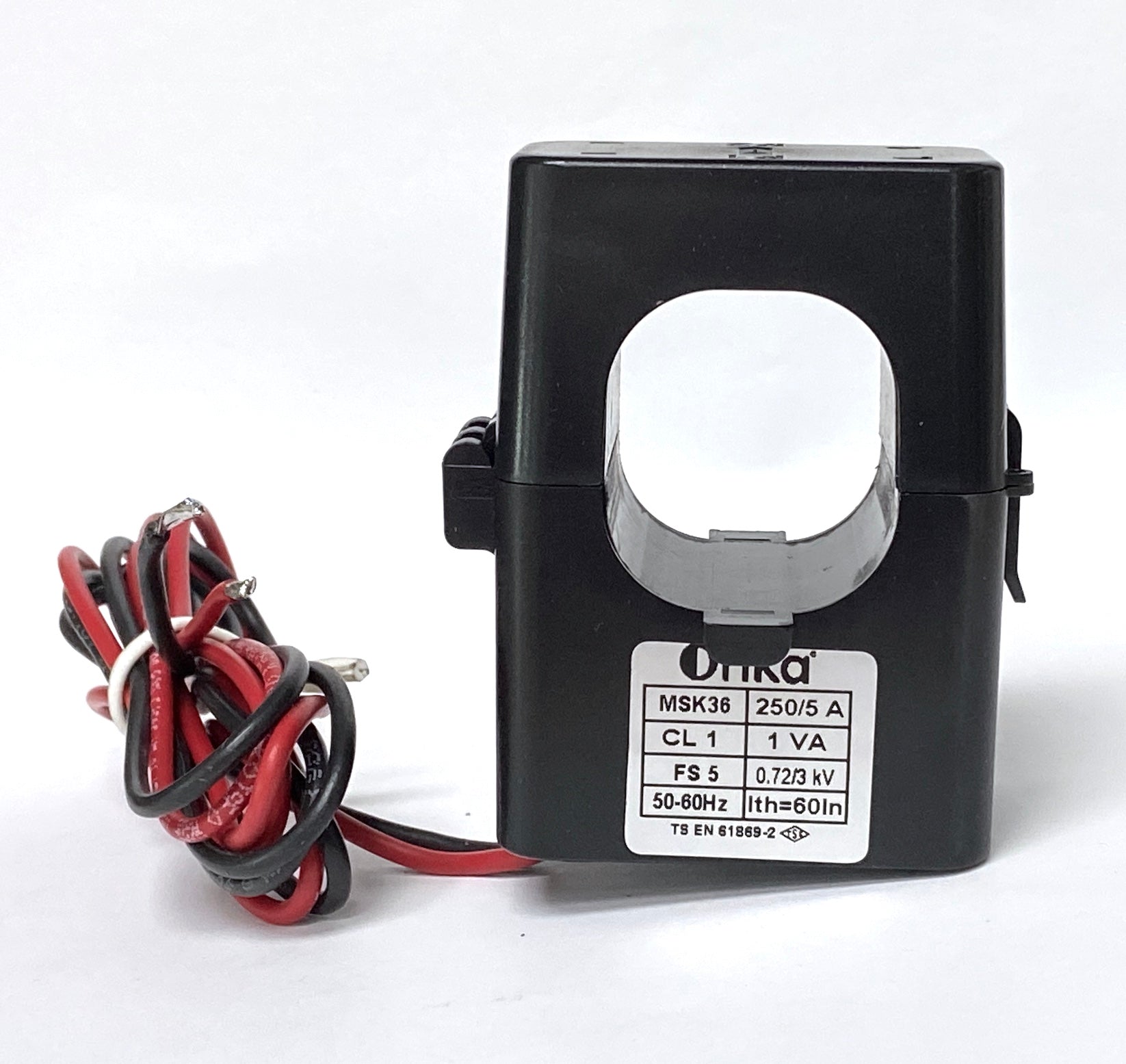

250/5A CT Split-Core Current transformer - ONKA, Cl 1, 1VA, 36 mm bore MSK362505 / BR-80011953

SKU: BR-80011953

Price including VAT:

£26.54
£26.54
27 in stock
  • Description
  • Payment methods
  • Warranty

ONKA 200/5 split core instrument measurement current transformer (burden - 1 VA), accuracy class 1, 36 mm bore.

This is a compact, moulded-case current transformer for primary currents up to 250A, featuring a split core design. It transforms primary AC currents into a standard 5A secondary current and accepts cables up to Ø36 mm. ONKA Compact split-core current transformers are ideal for retrofitting existing systems. They are perfect for applications where the current path cannot be disrupted.

Technical specifications:

  • Current ratio 250/5A
  • Burden: 1VA
  • Accuracy Class: 1
  • Mount Type: cable
  • Bore Size: Ø 36 mm
  • Rated short time thermal current: Ith = 60 * In
  • Rated continuous thermal current: Id = 1.2*In
  • Ambient temperature -25°C to + 85°C (0-95% relative humidity, non condensing)
  • Rated frequency: 50 Hz ... 60 Hz
  • Over current limiting factor: FS5
  • Rated isolation level: 0.72/3 kV
  • Standards/Approvals: IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN57414, BS3938, BS7626, EN 61869-2

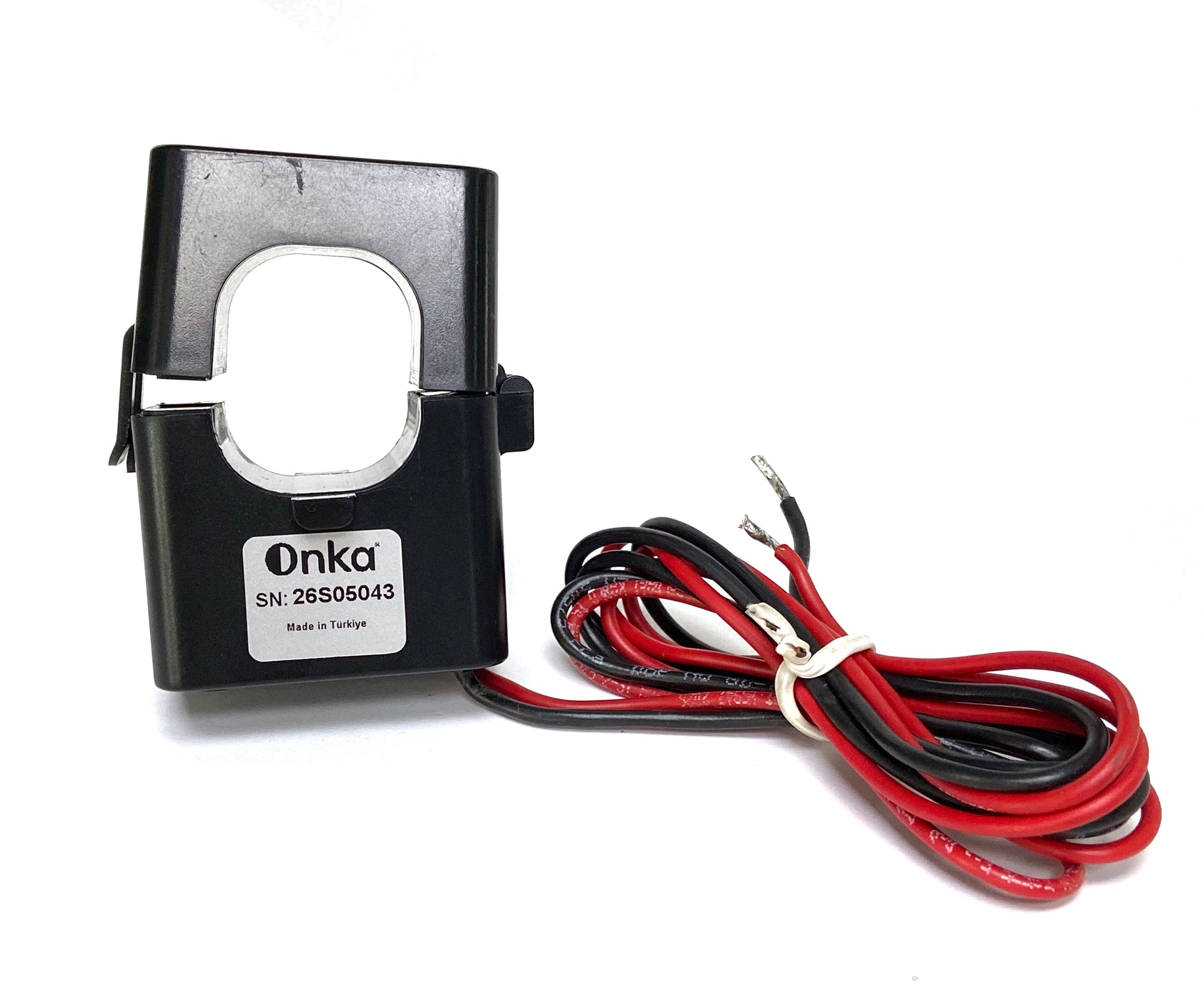

Each instrument current transformer is supplied with its own unique serial number and test report.

Online card / PayPal payment - after completing the order, you will be redirected to the payment gateway, payment confirmation will be sent to your email.

Bank deposit- you will transfers money from you bank account into our bank account to complete your purchase. You will receive an invoice to your email no later than the next working day.

We warrant that on delivery, and for a period of 12 months from the date of delivery any products which are goods shall:

  • conform in all material respects with their description and any relevant specification;
  • be free from material defects in design, material and workmanship;
  • be of satisfactory quality
  • In the event of any goods being materially defective, we will replace or repair the product or refund the purchase price.

These warranties shall not apply to any defect which arises from improper use, failure to follow the product instructions, or any repair or modification made without our consent.
