Stack Light / Signal tower double layer 2 flashing LED lights - RED + GREEN with buzzer, IP65, SNT-7022 / SNT-7013
- Regular price
- £79.00
- Regular price
-
- Sale price
- £79.00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Download
- Payment methods
- Warranty

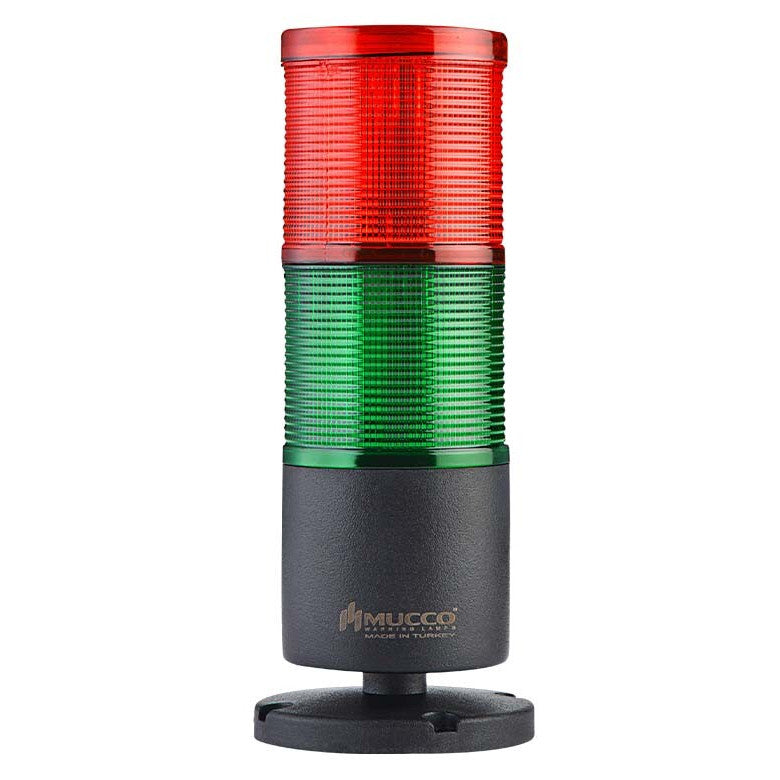

LED Stack Light / Signal tower double layer 2 LED lights - RED + GREEN with buzzer for surface mounting 12-24-40-250V AC/DC, SNT-7022 / SNT-7013, MUCCO (Turkey)
You can get clear visible warnings with this stack light. Its two-layer design includes red and green lights, which you can use to inform about danger or action signals.
Polycarbonate housing is highly resistant to impacts, while still being lightweight. LED sources of light offer bright light intensity and have an extremely long lifespan. The Mucco signal tower is suitable for mounting on top or on the side of machinery (indoor) and on top (outdoor) and has a flashing light effect (strobe/steady/rotary available is an option).
Application areas:
- Conveyors, packaging lines , extruders;
- Pharmaceutical and food industries;
- Robot / cobot applications.
| Current | 12~24V AC/DC ( SNT-7013-FB-2) | 130mA ±10% |
| 24V/DC (SNT-7024-FB2) | 180mA ±10% | |
| 40~250V AC/DC (SNT-7022-FB2) | 20mA ±10% 50-60 Hz | |
| 220V/AC (SNT-7012-FB2) | 20mA ±10% 50-60 Hz | |
| Body material | ABS (Body) + Polycarbonate (Lens) | |
| Lens colours | Red – Green (Customized Color Range Option Possible) | |

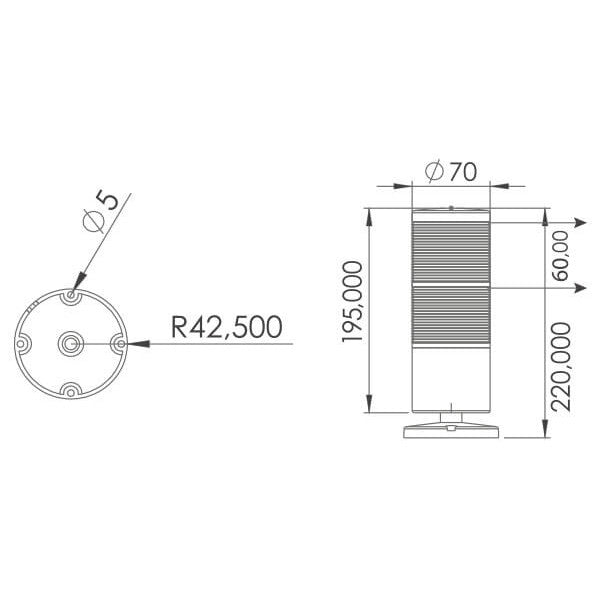

| Lens diameter | ø70mm | |
| Light source | SMD LED | |
| Light mode | Flashing (Steady, Strobe, Rotary as an option) | |
| Input response time | on/off: 10ms max. | |
| Tone | 1 tone (wire control) | |
| Alarm | 103~116dB at 1m (3.3ft) | |
| Connection | Wire | |
| Mounting type | Surface (Wall, Foldable Base & Ext.Tube Options) | |
| Operation conditions | -20°C to +50°C (-4°F to +122°F) | |
| Expected life | Min. 50,000 hrs | |
| Degree of protection | IP65 | |
| Protection | Water, Dust, Heat, and UV Ray Resistant | |
| Certificates & Quality Doc. | ISO-9001, CE, RoSH2 and EAC |
