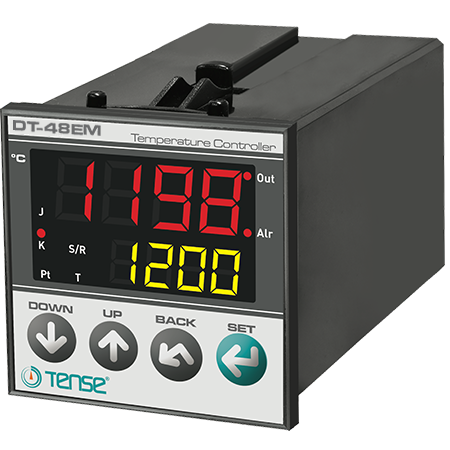

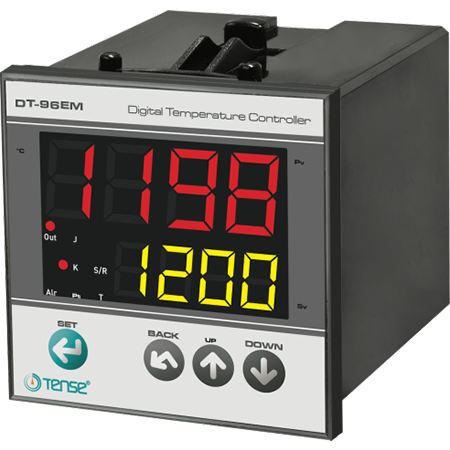

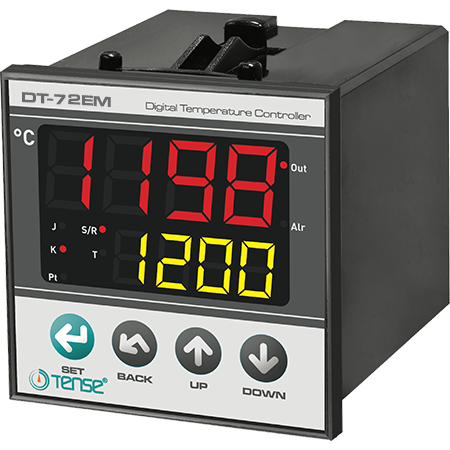

Dual Display Panel Mount PID Temperature Controller, Output Relay +SSR relay , -100°C ... +1750°C, resolution / step 0.1ºC

Dual Display Panel Mount PID Temperature Controller, Output Relay +SSR relay , -100°C ... +1750°C, resolution / step 0.1ºC, TENSE (Turkey)

New series of TENSE microprocessor PID Temperature Controllers wit dual display for set and process value (SV+PV) with wide temperature control range and universal input for temperature probes, two output relay including SSR - provides customers with powerful instrument for cost-effective and highly versatile temperature control in such applications as:

• OEM
• Food & Beverage
• Plastics Extrusion
• Furnaces & Ovens
• Catering Equipment
• Incubators
• R&D and lab equipment
• hot plates
• HVAC applications

Features

• Microprocessor Based, PID Temperature Controller
• Auto-tuning for PID Parameters
• Sensor Type: T/C (J,K,T,S,R), Pt100
• Selectable Control Type: P, PI, PD, PID or ON-OFF
• Automatic “Overshoot” Elimination in PID Mode
• Anti-windup
• Upper and Lower Limit for SET
• ON-delay for OUT in Cooling Mode
• Displays SET and PROCESS Values
• Cold-junction Compensation for T/C
• Line Compensation for Pt100
• Excellent Linearity with °C/mV and °C/Ohm Look-up Tables
• Input “Offset” Feature
• Password Protection
• High Accuracy
• EEPROM Memory to Store Settings
• SSR Output
• Easy Connection with Plug-in Connectors

You can order our temperature sensors - type J Fe-Const thermocouples (metric 6/8) with a temperature measurement scale: -100 °C - +600 °C by following this link
