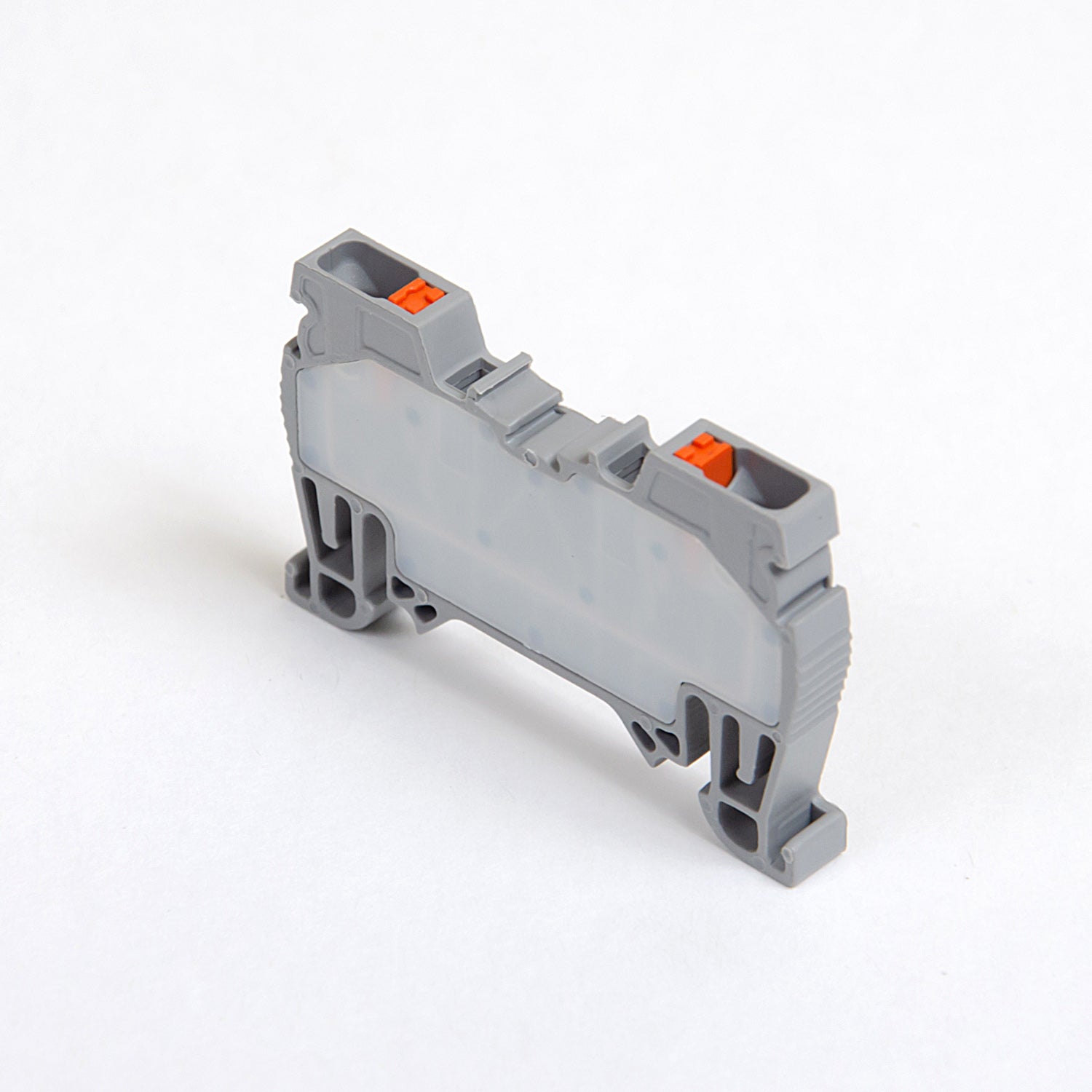

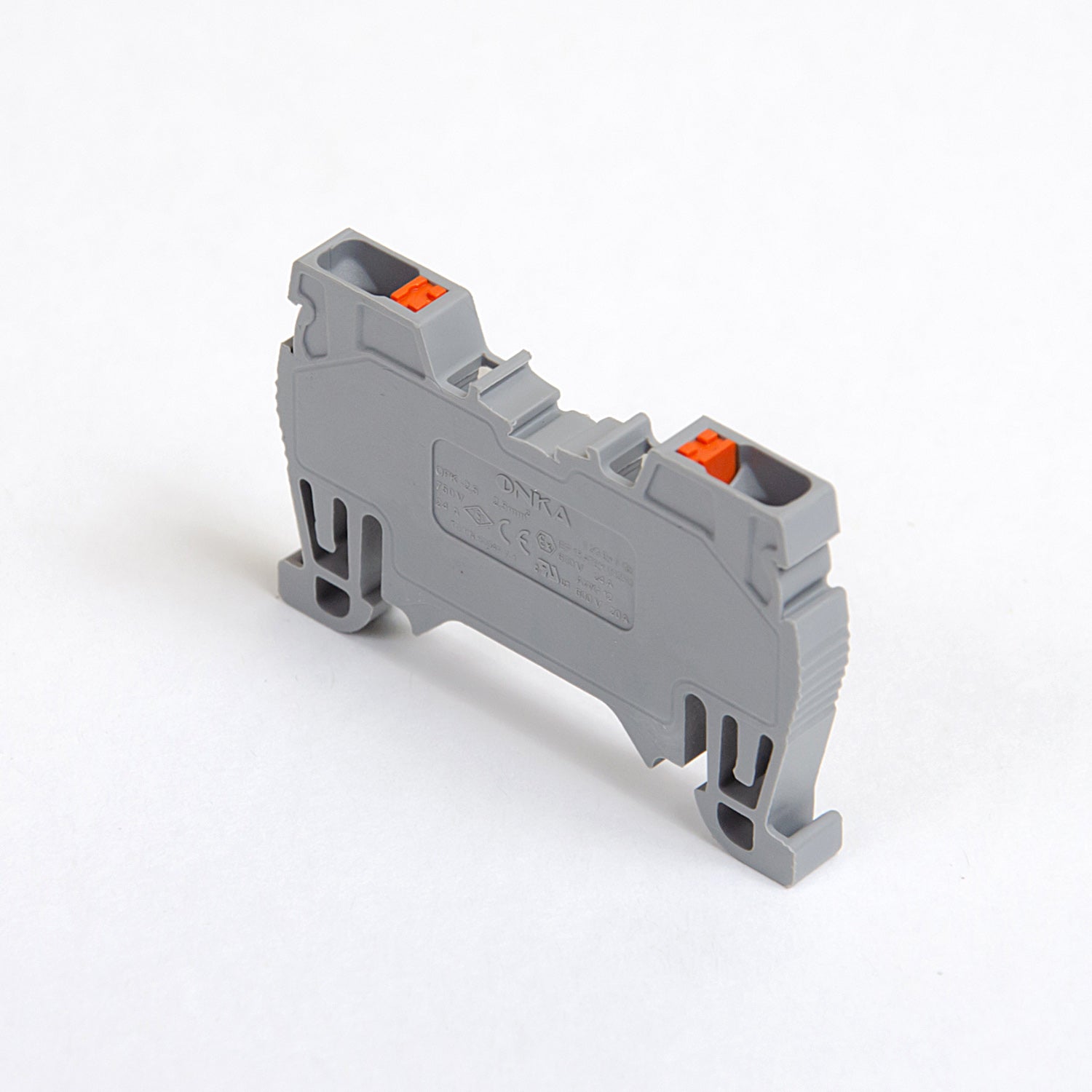

ONKA 2,5mm2 Spring Clamp / push-in type DIN rail terminal, grey, 1020013
- Regular price
- £0.61
- Regular price
-
- Sale price
- £0.61
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Push In / Spring Clamp connection type DIN rail terminal, grey colour, ONKA, made in Turkey.
Push-in type (or spring type) clamp terminals are usually part of an application where temperature deviation and vibration can affect tightness of standard screw connection.
These DIN rail mounting terminals are made for fast and practical connections of electrical conductors in control panels, distribution boards, and industrial automation systems. These terminal blocks cut wiring time and minimize possible troubleshooting.
The ONKA coupler/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations. Made of high quality materials, the coupling guarantees long term use and resistance to mechanical damage.
Technical parameters
Cross section of the connected single wire up to: 2.5mm2
Colour: grey
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: Top / top
Cable strip length: 9mm
Electrical connection type: spring clamp / retractable contact
Rated voltage: 750V
Rated current: 24A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
