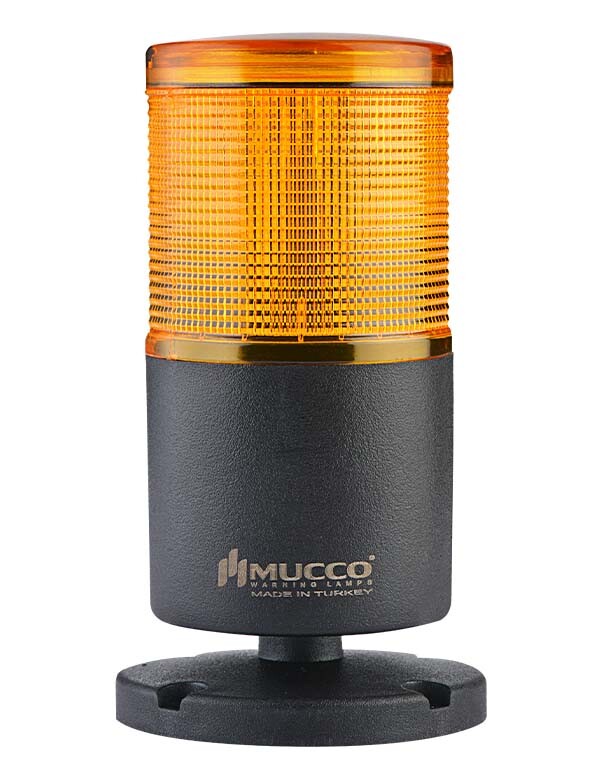

Signal tower one layer Flashing YELLOW or RED LED light, IP65, SNT-7013
- Regular price
- £57.60
- Regular price
-
- Sale price
- £57.60
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Download
- Payment methods
- Warranty
Surface mount signal tower YELLOW or RED LED light, 12-24 V AC/DC, SNT-7013, MUCCO (Turkey)
You can get clear visible warnings with this MUCCO stack light. Its one layer design includes red or yellow light, which you can use to inform about danger signals or signal of ongoing process / pause / attention needed.
Polycarbonate housing is highly resistant to impacts, while still being lightweight. LED sources of light offer bright light intensity and have an extremely long lifespan. The Mucco signal tower is suitable for mounting on top or on the side of machinery (indoor) and on top (outdoor) and has a flashing light effect (strobe/steady/rotary available is an option).
| Category | Stack Light | |
| Current | 12~24V AC/DC | 55mA ±10% |
| 24V/DC | 85mA ±10% | |
| 40~250V AC/DC | 10mA ±10% 50-60 Hz | |
| 220V/AC | 10mA ±10% 50-60 Hz | |
| Body material | ABS (Body) + Polycarbonate (Lens) | |
| Lens colors | Red, Yellow, Green, Blue, White | |

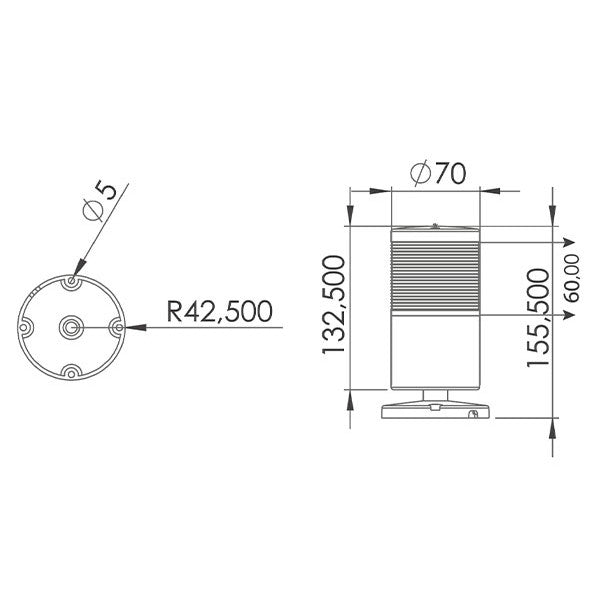

| Lens diameter | ø70mm | |
| Light source | SMD LED | |
| Light mode | Steady, Flashing, Strobe, Rotary | |
| Input response time | on/off: 10ms max. | |
| Tone | 1 tone (wire control) | |
| Alarm | 103~116dB at 1m (3.3ft) | |
| Connection | Wire | |
| Mounting type | Surface, Wall, Foldable Base & Ext.Tube Options | |
| Operation conditions | -20°C to +50°C (-4°F to +122°F) | |
| Expected life | Min. 50,000 hrs | |
| Degree of protection | IP65 | |
| Protection | Water, Dust, Heat, and UV Ray Resistant | |
| Certificates & Quality Doc. | ISO-9001, CE, RoSH2 and EAC |
Wiring diagrams:
Online card payment - after completing the order, you will be redirected to the payment gateway, payment confirmation will be sent to your email.
By bank transfer- you will receive an invoice to your e-mail no later than the next working day, on which you will find the account number that you will enter during payment.
All equipment we supply meets high quality standards and has a 24-month warranty, and complies with EU/UK requirements.
Our warranties shall not apply to any defect which arises from improper use, failure to follow the product instructions, or any repair or modification made without our consent.
