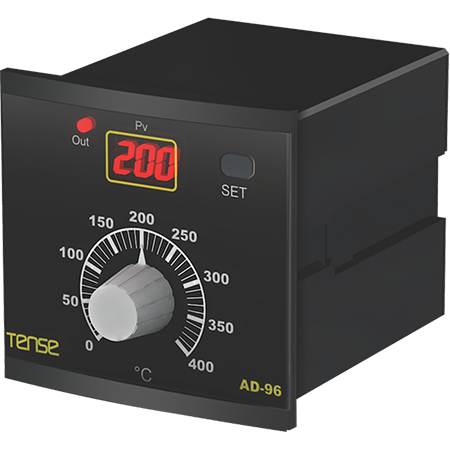

ON-OFF/Proportional Digital Temperature Controller, 1/4 DIN , up to 400ºC , Fe-Const, J type, T/C, NO-NC output relay 2A

Microprocessor Based Temperature controller / control relay, panel mounted, digital indicator, temperature set - 0°C ... +400°C ,  ON/OFF or Proportional control mode, resolution / step 1ºC, TENSE (Turkey)

Digital temperature control relays are designed maintain the temperature of the environments/ appliances required by user. If the temperature reached pre-set level, controller turns heater OFF, if temperature drops below set level  temperature dependent control at the set value controller turns heater ON. Easy panel mount by brackets, easy wire connection by plug-in type connector - secure hustle free operation.

You could quickly and efficiently set desired temperature by rotary knob and bright bid 3-digit display.

Our controller is suitable for system where temperature increases slowly such as:

• ovens,
• HVAC applications,
• catering,
• incubators,
• R&D and lab equipment,
• hot plates,
• furnaces,
• plastic processing machines.

Features of temperature controller AD-96

• Microprocessor Based, Temperature Controller
• Auto-tuning for PID Parameters
• Sensor Type: T/C, Fe-Const, J Type

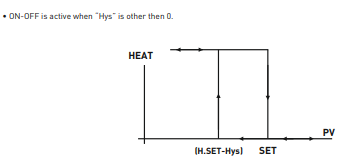

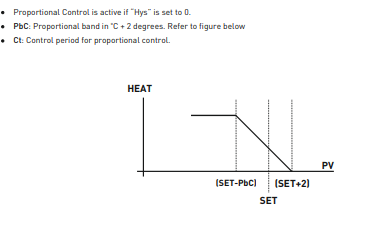

• ON-OFF or time proportional operation
• Displays SET or PROCESS Values
• Cold-junction Compensation for T/C
• Excellent Linearity with °C/mV and °C/W Look-up Tables
• EEPROM Memory to Store Settings

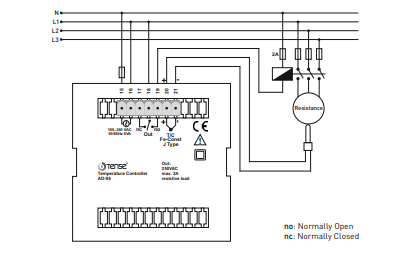

• Easy Connection with Plug-in Connector
• SensorRelay outputs OUT (NO+NC) 250VAC, 2A

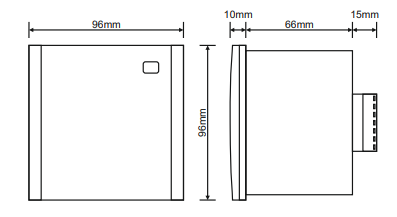

• 1/4 Din (96x96x91mm) case size, panel cut-out 90x90mm

You can also order J type Fe-Const thermocouple (6/8 metric) with temperature  scale: -100 °C - +600 °C.  by clicking this link
