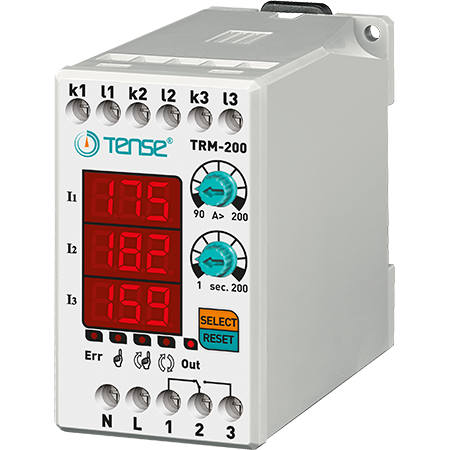

Digital overcurrent relay with 3×3 digit LED display TRM-200

Three-phase current relay for load current control / limitation in the range of 90-200 A, manufacturer TENSE (Turkey)

The TRM-200 digital overcurrent relays are designed to protect loads from damage caused by high currents while allowing monitoring of operation.

- 90-200 A (adjustable overcurrent value)
- 50% fixed current asymmetry
- Adjustable error delay time
- Adjustable operating mode (automatic, semi-automatic, manual)

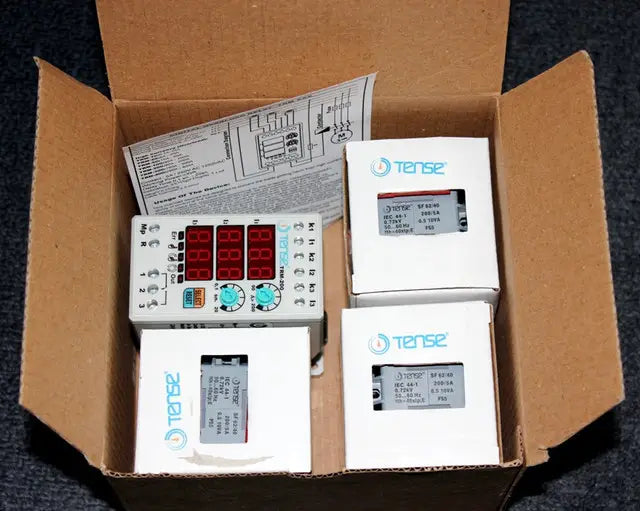

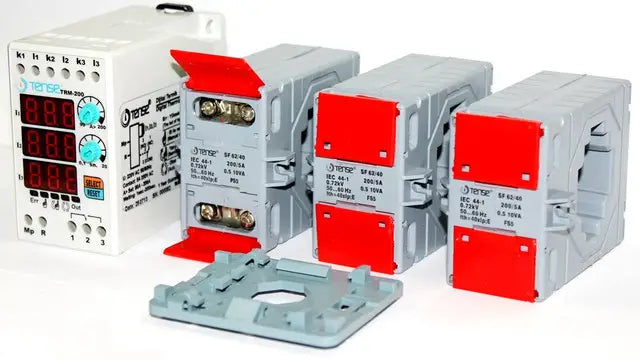

- When you purchase a TENSE brand current relay, you get a ready-to-use device - current transformers included.

Use of the device and principle of operation

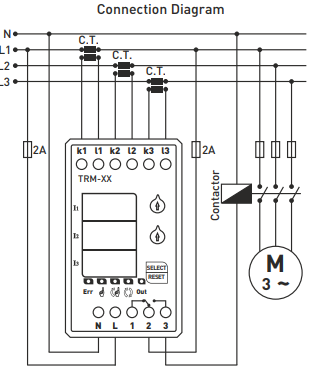

1. Connect the device according to the wiring diagram.
2. When the wiring is complete, apply power. After switching on, the display shows the set values for 5 seconds.
3. Use the "A>" controller to set the overcurrent value. The set value is shown on the left display.
4. Use the "t" controller to set the delay time. The set value is also shown on the left display.

When the device is switched on:
- The relay will switch on, the output contact will switch to terminal 3 and the OUT indicator will light up.
- If the current exceeds the overcurrent set value (A>), the device will start counting down the delay time and the ERR indicator will light up.
- When the set time has elapsed, the relay will switch off, the contact will switch to terminal 1 and the OUT indicator will go off.

Description

The TRM-200 series electronic current relay is designed to automatically disconnect appliances when the maximum allowable current is exceeded.
It has a programmable tripping range, the ability to set the delay time and the return time.
There are 3 modes of return to operating state - MANUAL, SEMI-AUTOMATIC, AUTOMATIC.

Reset Modes:

- Manual Mode: After an overcurrent fault, the device must be reset by pressing the Reset button. In this mode, the corresponding LED is lit.
- Semi-automatic Mode: the system automatically resets three times after an overcurrent error, then waits for a manual reset on the next error. In this mode, the corresponding LED is lit.
- Automatic mode: the system resets automatically after each overcurrent error. In this mode, the corresponding LED is lit.

Note: To change the mode, hold the SELECT button for 10 seconds. When the mode is changed, the corresponding LED light will illuminate.

Asymmetry 50% (fixed)

If the difference between the largest and smallest phase current exceeds 50%, the device enters the asymmetry error mode within 2 seconds.
(This prevents damage to the system in the event of a phase failure during motor operation.)

When an asymmetry error occurs:
- The display group of the two phases that caused the fault will flash and the ERR indicator will illuminate.
- To return from asymmetry error mode, the device must be reset manually.

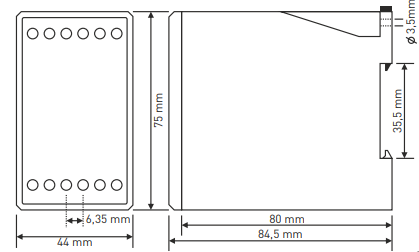

Technical parameters:

- Operating voltage: 150-260 V AC
- Operating frequency: 50/60 Hz
- Power: < 6 VA
- Operating temperature: -20 °C to +55 °C
- Display: 3x3 digits, 5 LEDs
- Overcurrent setting (A>): 90-200 A
- Delay time: 1 s - 200 s
- Connection type: terminal
- Contacts: 5 A / 250 V AC (active load)
- Wire diameter: 2.5 mm²
- Weight: max. 250 g
- Mounting: on DIN rail
- Operating altitude: < 2000 m

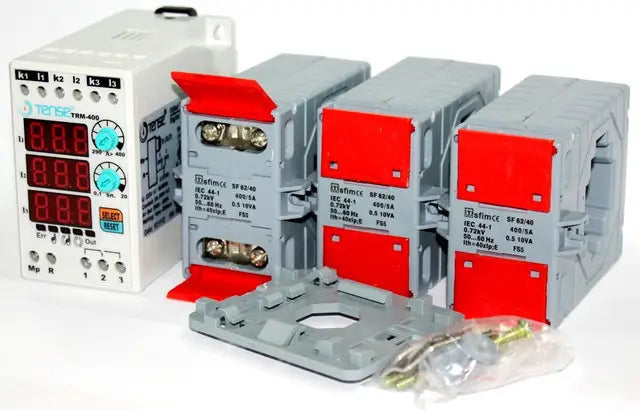

Note: Models TRM-50, TRM-100, TRM-200 and TRM-300 can only be used with the current transformers included in the scope of delivery.

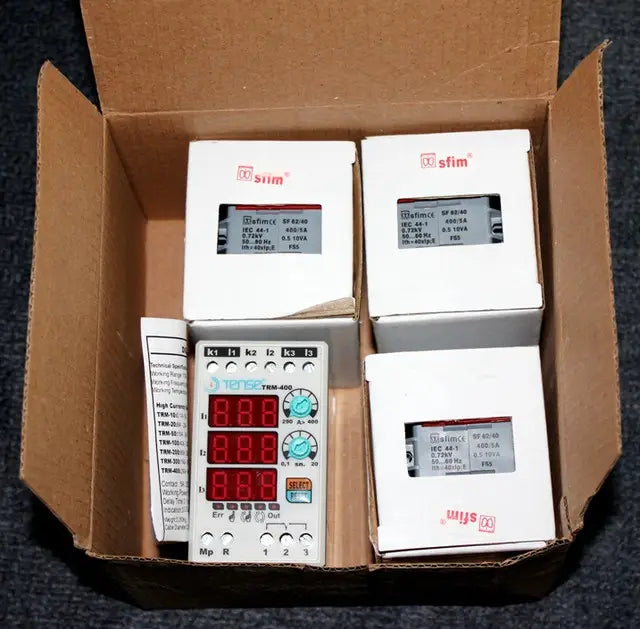

The TRM-400 can be used with the 400/5 current transformer supplied with the TRM-400.

Basic
