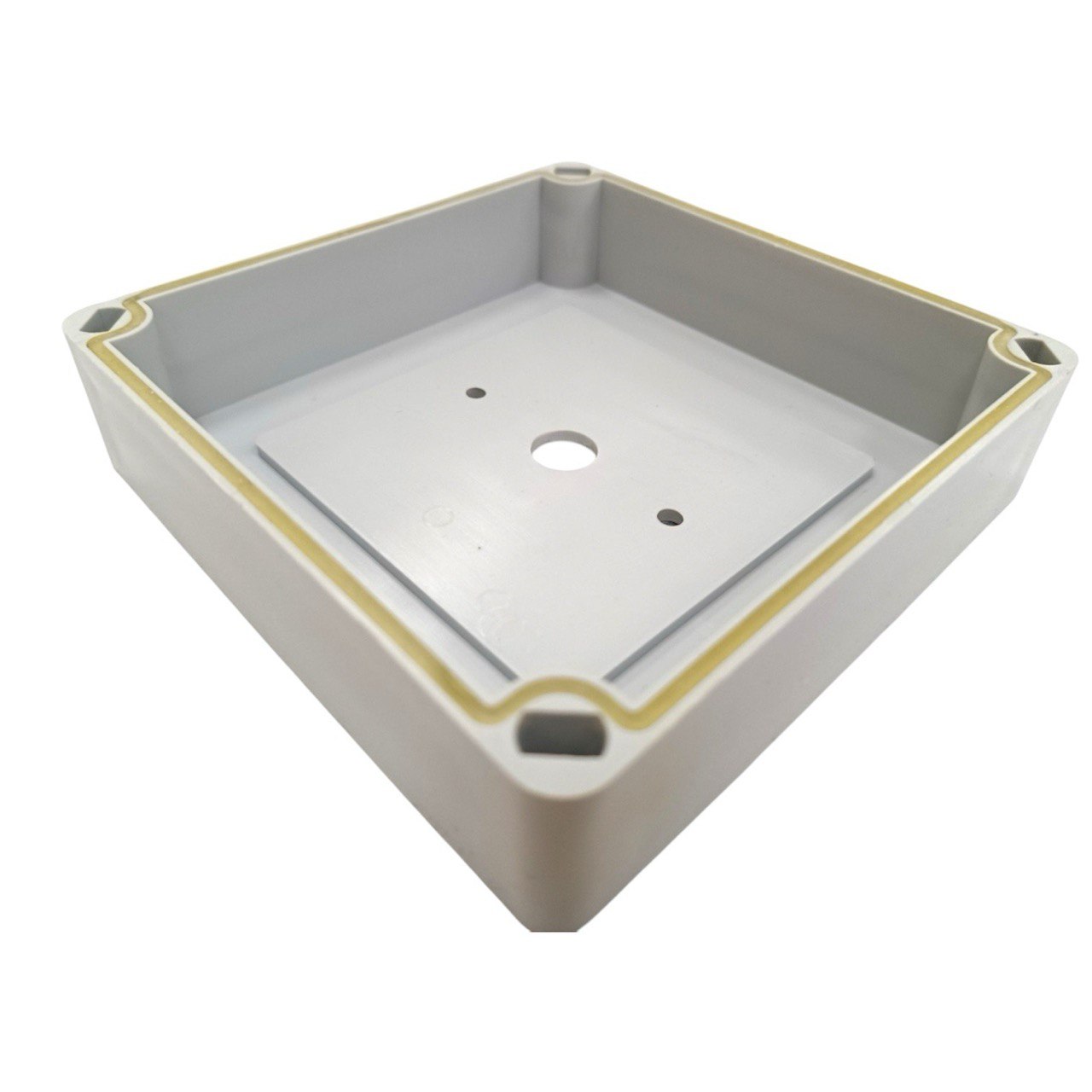

IP65 Plastic Enclosure For All type Rotary Cam Switches, OPAŞ

IP65 plastic enclosure for  rotary cam switches , OPAŞ (Turkey)

OPAŞ rotary cam switches are specialized electrical devices designed to control multiple circuits through a single switch mechanism. They operate by rotating a shaft that engages various contacts, allowing the user to make or break connections between different electrical circuits. This functionality enables precise control over complex electrical systems, making rotary cam switches essential in various applications, from industrial machinery to household appliances.

Reliable OPAS rotary cam switches are being produced since 1982 and developed according to the standards EN6097-3, EIC and CE and designed for harsh industrial environments and use special materials for contacts (AR-GE) and terminals (screws and bolts are nickel-coated) are fully comply with EN60947-3 for a long mechanical and electric lifespan.

IP6501 /  IP6502 / IP6503 / IP6504 / IP6505 / IP6506 - OPAŞ enclosure to secure IP65 protection rate for its cam switched and give possibility to use rotary cam switches in harsh outdoor applications without any problems.

IP6501

• for On-OFF/0-1 rotary switches for 16-25a, 1/2/3 or 4 poles

• for 0-1-2-3 multistep switches for 16-25a
• for 0-1-Start rotary switches for 16-25a, 1-2 poles

IP6502

• for 1-0-2 Changeover switches 16-25-32a for 1/2/3 or 4 poles
• for 0-1-2-3 integrator switches for 16-25a
• for 0-1-2-3-4 integrator switches for 16-25a
• for 0-1-2-3-4 multistep switches for 16-25a
• for motor reversing 1-0-1 / L-0-R switches for 16-25a

• for 0-1-Start rotary switches for 16-25a, 3-4 poles

IP6503

• for On-OFF/0-1 rotary switches for 16-25-32-40a, 1-2-3-4 poles
• for 1-0-2 Changeover switches 16-25-32-40a for 1 or 2 poles
• for 0-1-2-3 multistep switches for 16-25-32-40a
• for 0-1-Start rotary switches for 16-25-32-40a, 1-2 poles
• 7 position voltmeter rotary switches for 16-25a
• 4 position ammeter rotary switches for 16-25a

IP6504

• for 0-1-2-3 integrator switches for 16-25-32-40a
• for 0-1-2-3-4 multistep switches for 16-25-32-40a
• for 0-1-2-3-4 integrator switches for 16-25-32-40a
• for motor reversing 1-0-1 / L-0-R switches for 16-25-32-40a
• for Star-Delta rotary switches for 16-25-32-40a
• for 7 position voltmeter rotary switches for 16-25-32-40a
• for 4 position ammeter rotary switches for 16-25-32-40a

IP6505

• for On-OFF/0-1 rotary switches for 40-50-63-80a, 1-2-3-4 poles
• for 1-0-2 Changeover switches for 40-40-60a for 1 or 2 poles
• for 0-1-2-3 multistep switches for 40-50-63-80a
• for 0-1-2-3 integrator switches for 40-50-63-80a
• for 0-1-2-3-4 multistep switches for 40-50-63-80a
• for 0-1-2-3-4 integrator switches for 40-50-63-80a

IP6506

• for On-OFF/0-1 rotary switches for 100-115-125-160-200-250-315-400a, 1-2-3-4 poles
• for 1-0-2 Changeover switches for 40-50-63-80a for 3 or 4 poles
• for 1-0-2 Changeover switches for 100-115-125-160-200-250-315a, 1-2 or 3 poles
• for 1-0-2 Changeover switches for 200-250-315-400a, 1 or 2 poles
• for Star-Delta rotary switches for 40-50-63a
• for motor reversing 1-0-1 / L-0-R switches for 40-50-63-80a
• for 0-1-2-3 multistep switches for 100...400a
• for 0-1-2-3 integrator switches for 100...400a
• for 0-1-2-3-4 multistep switches for 100...400a

If you could not find your switch in the list above, please contact us via e-mail and we will help you to make the proper choice.

Technical specifications:

• Type of switch: IP65 Protection Box
• Switching scheme: Any
• Number of poles: Any
• Contacts rating (AC23): 16A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 115A, 125A, 160A, 200A, 250A, 315A, 400A
• Type: Surface mounting
• Degree of protection against dust and water: IP65
• Number of operating positions: -
• Operation life (Mechanical cycles): -
• Operation life (Electrical cycles): -
• Switching per hour: -
• Ui: 660V
• Ue: 230V / 400V
• Frequency: 50 ... 60 Hz
• Body heat-resistant: -
• Medium operating temperature range: -20 to +60 °C
• Standards: EN6097-3, EN60947-3, EIC, CE
• Manufacturer: OPAŞ
• Country of origin: Turkey
