3 Ph Digital Multifunction Panel Meter, 1/4DIN, Current/Voltage/Frequency , X/5, 100A or 250A, TENSE
- Regular price
- £34.00
- Regular price
-
- Sale price
- £34.00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Download
- Payment methods
- Warranty

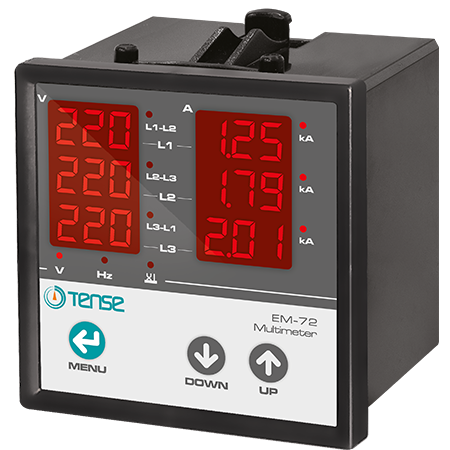

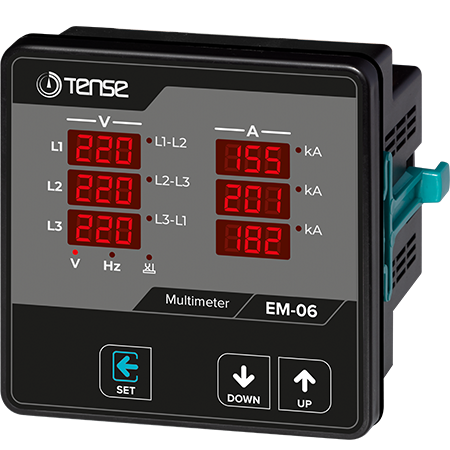

3 Phase digital multi-function panel mount meter, Current/Voltage/Frequency, 6xLED displays, connection X/5 or 100A or 250A, TENSE
New design of 3 phase TENSE panel type multi-function meters are designed to delivers precise data within 0-9995A (Current Transformer primary side programmable up to 9995A for EM-06DIN) ranges for accurate current , voltage and frequency measurement and trend analysis in industrial power systems.

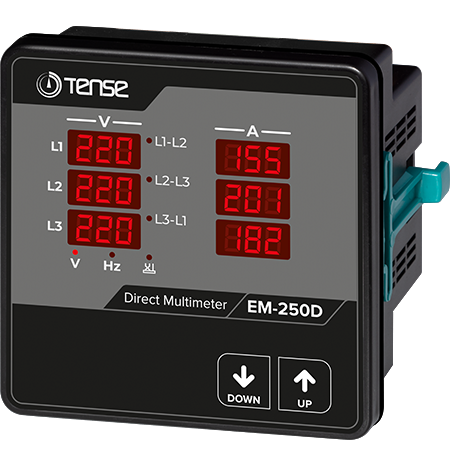

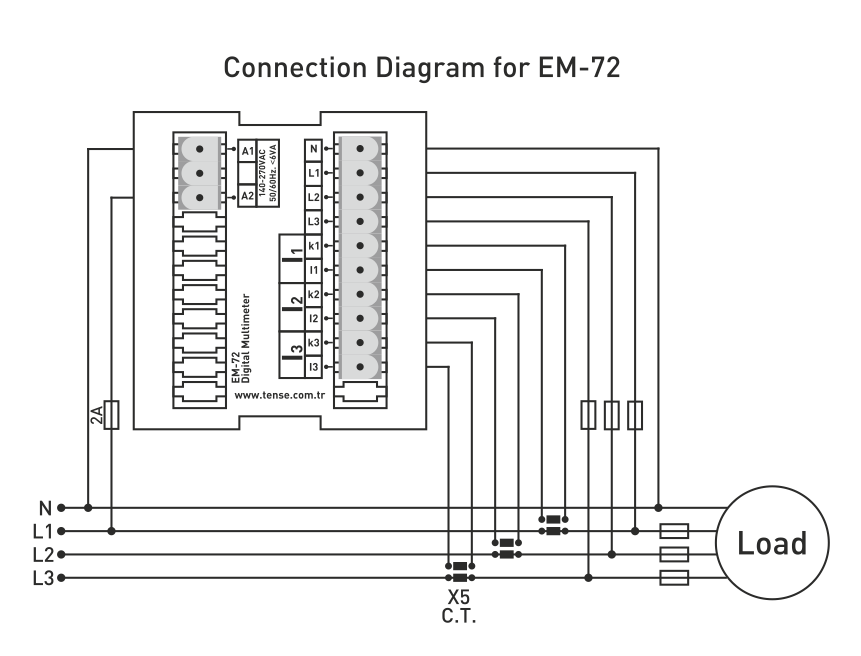

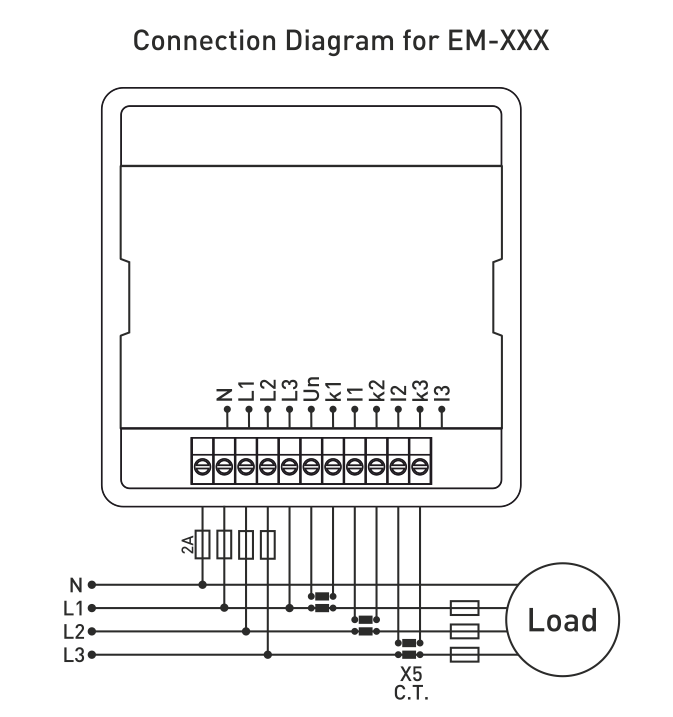

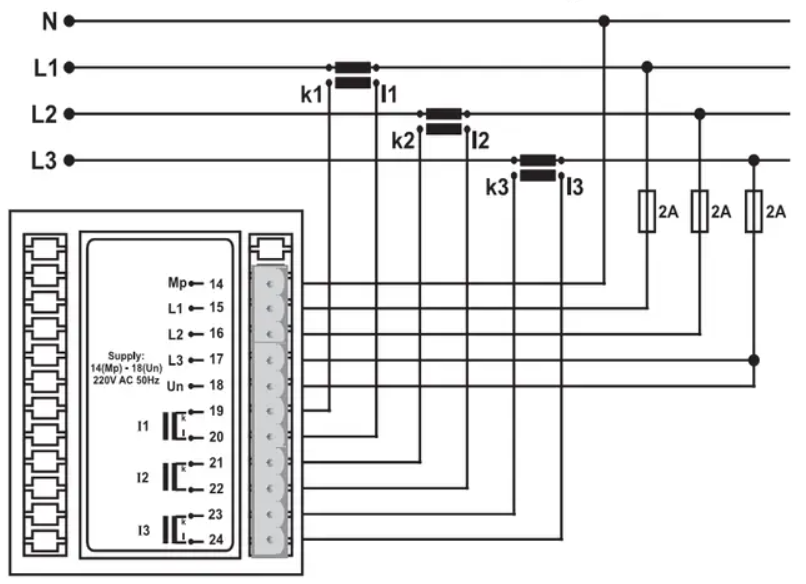

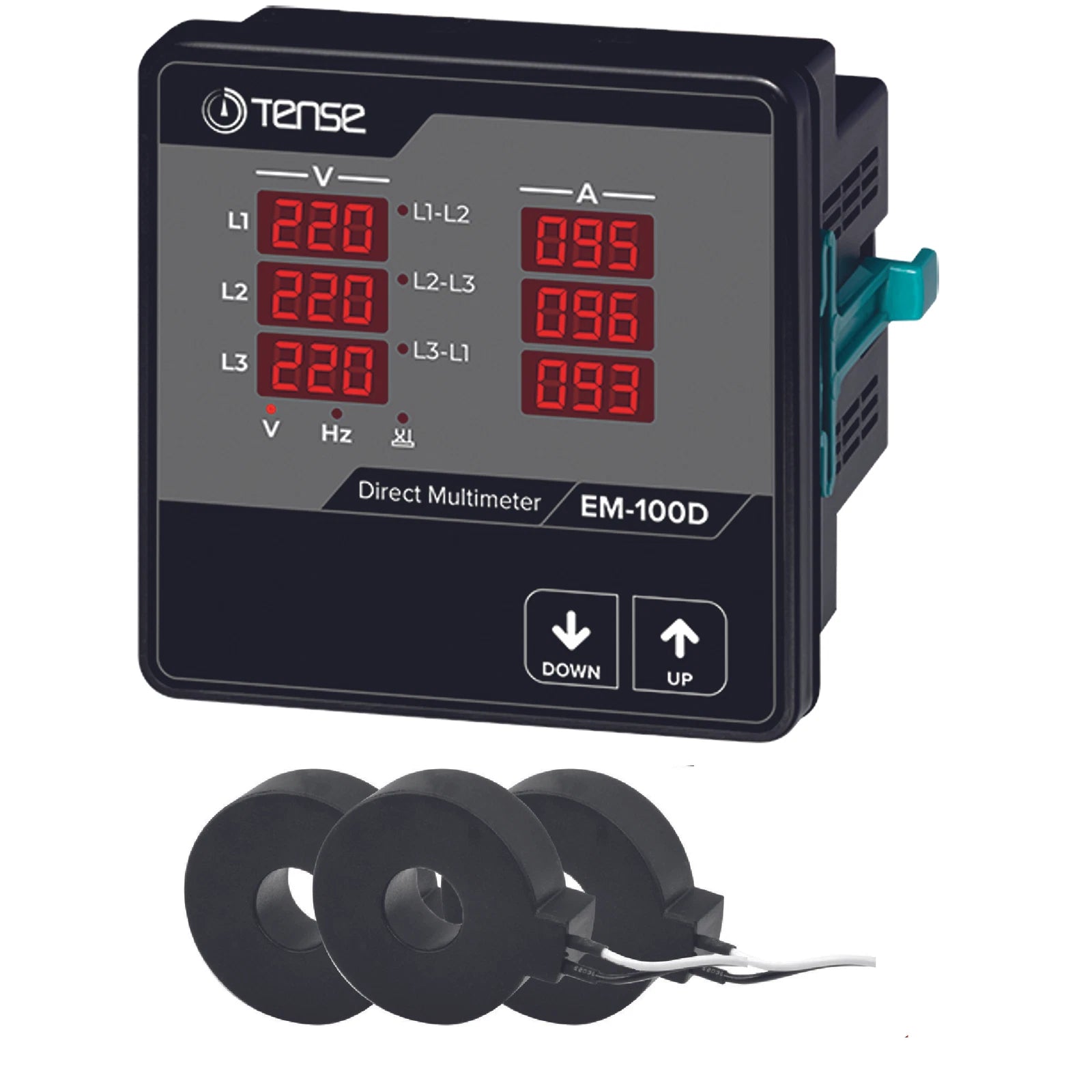

You can choose from 3 options - connect your own CTs (EM-06) or buy EM-100D / EM-250D with Current Transformers already included into the scope of delivery.
Main features:
- Measurement of current 0-9995A (via CTs, EM-06), 1A-100A (EM-100D), 2A-250A (EM-250D);
- Measurement of voltage: 1V-300V AC (N-L), 1V-500V (L-L);
- Measurement of frequency: 40Hz-60Hz
- Phase sequence LED
- CTs included for EM-100D and EM250D
Technical Specification:
- Power supply: 150V...270V AC
- Frequency: 50/60 Hz
- Power consumption: <6VA
- Working temperature: -20C...+55C

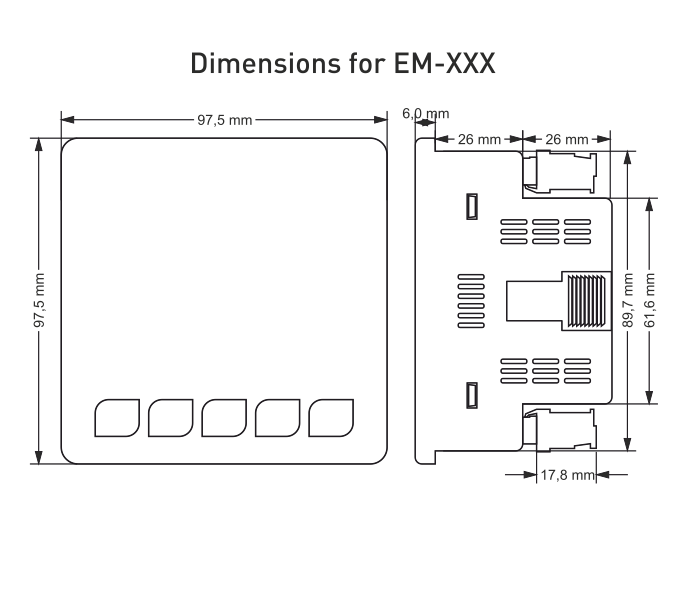

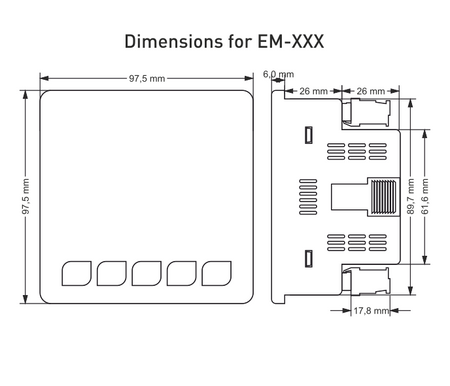

- Panel cut-out: 91x91mm
