1-0-2, 3 Position Changeover Rotary Cam Selector Control Switch 1-0-2, 1-2-3-4 poles, 16A 25A 32A 40A 50A 63A 80A 100A 115A 125A 160A 200A

Changeover Rotary cam switch 1-0-2 , 1-2-3-4 poles, 16A 25A 32A 40A 50A 63A 80A 100A 115A 125A 160A 200A 250A 315A 400A , YPT105 /  YPT205 / YPT305 / YPT405, OPAŞ (Turkey)

OPAŞ rotary cam switches are specialized electrical devices designed to control multiple circuits through a single switch mechanism. They operate by rotating a shaft that engages various contacts, allowing the user to make or break connections between different electrical circuits. This functionality enables precise control over complex electrical systems, making rotary cam switches essential in various applications, from industrial machinery to household appliances.

Reliable OPAS rotary cam switches are being produced since 1982 and developed according to the standards EN6097-3, EIC and CE and designed for harsh industrial environments and use special materials for contacts (AR-GE) and terminals (screws and bolts are nickel-coated) are fully comply with EN60947-3 for a long mechanical and electric lifespan.

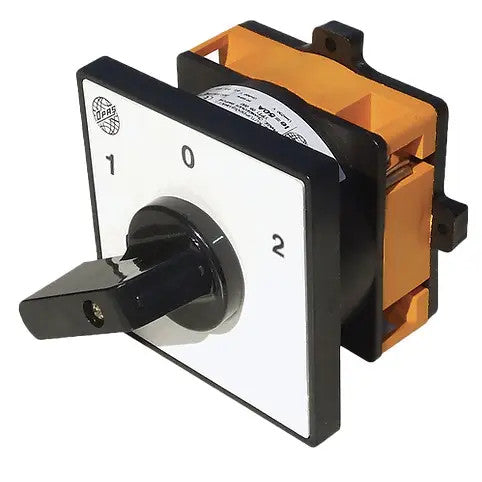

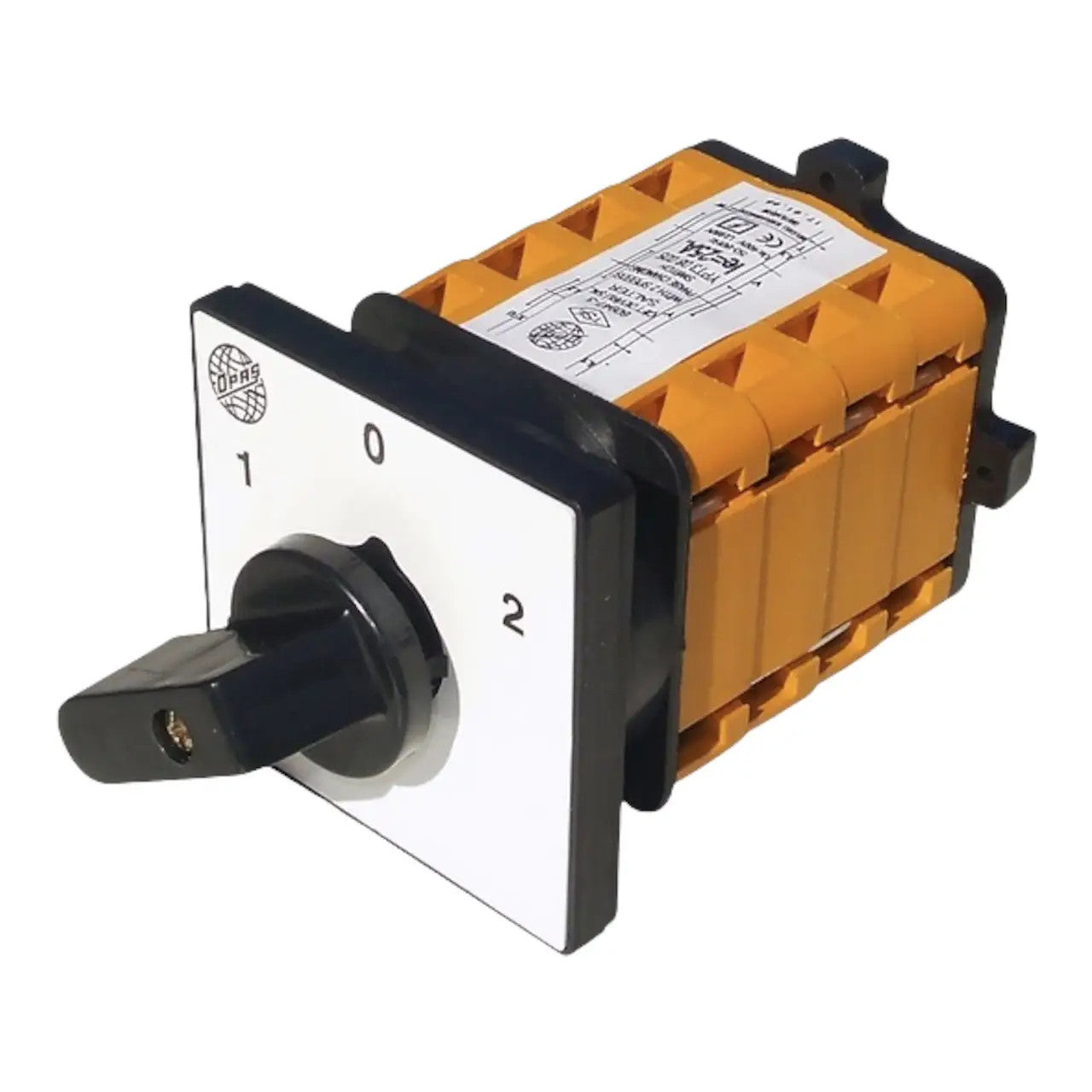

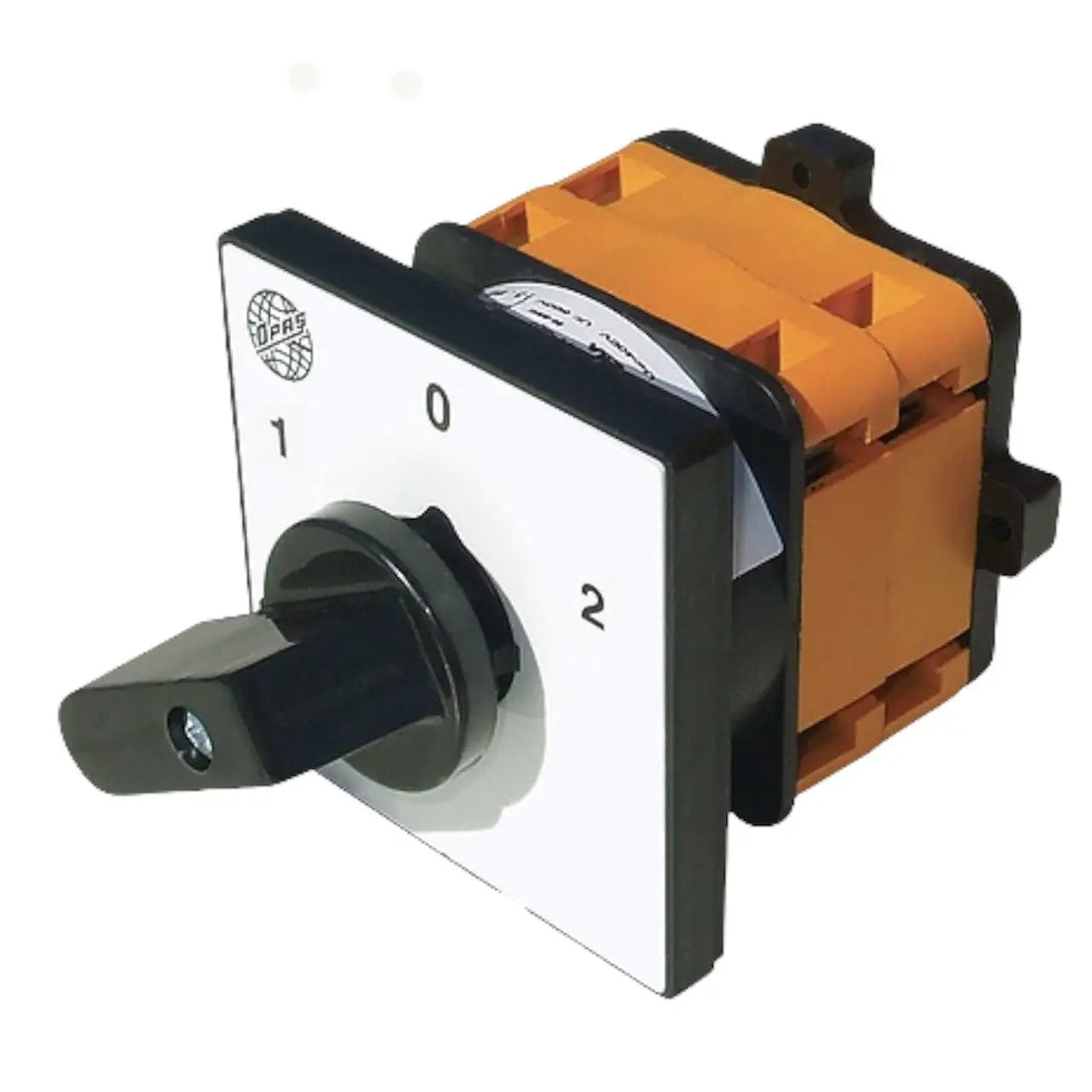

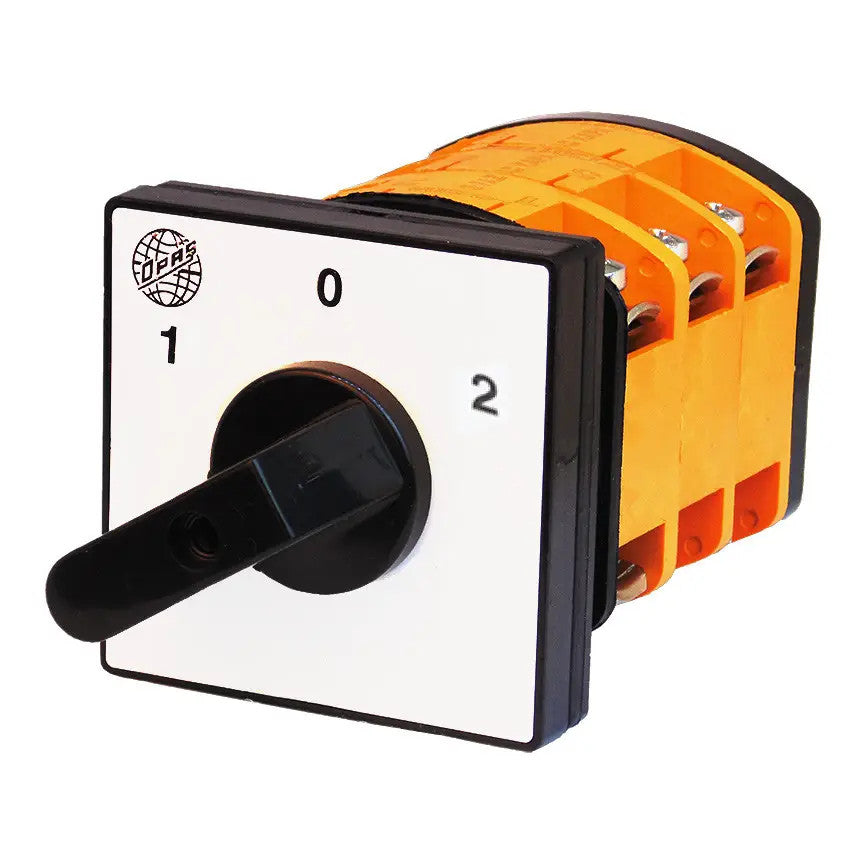

YPT105 / YPT205 / YPT305 / YPT405  OPAŞ 3-position rotary cam switches / Selector Control Switches are universal devices are used when you need to switch the load between different power sources (e.g. main grid and generator, one or another signal source) or to direct current flow towards chosen load (like to switch on one or another light) or to switch between two speeds of motor or to move blinds/jalousie/barrier up and down.

Technical specifications:

• Type of switch: Changeover Switch

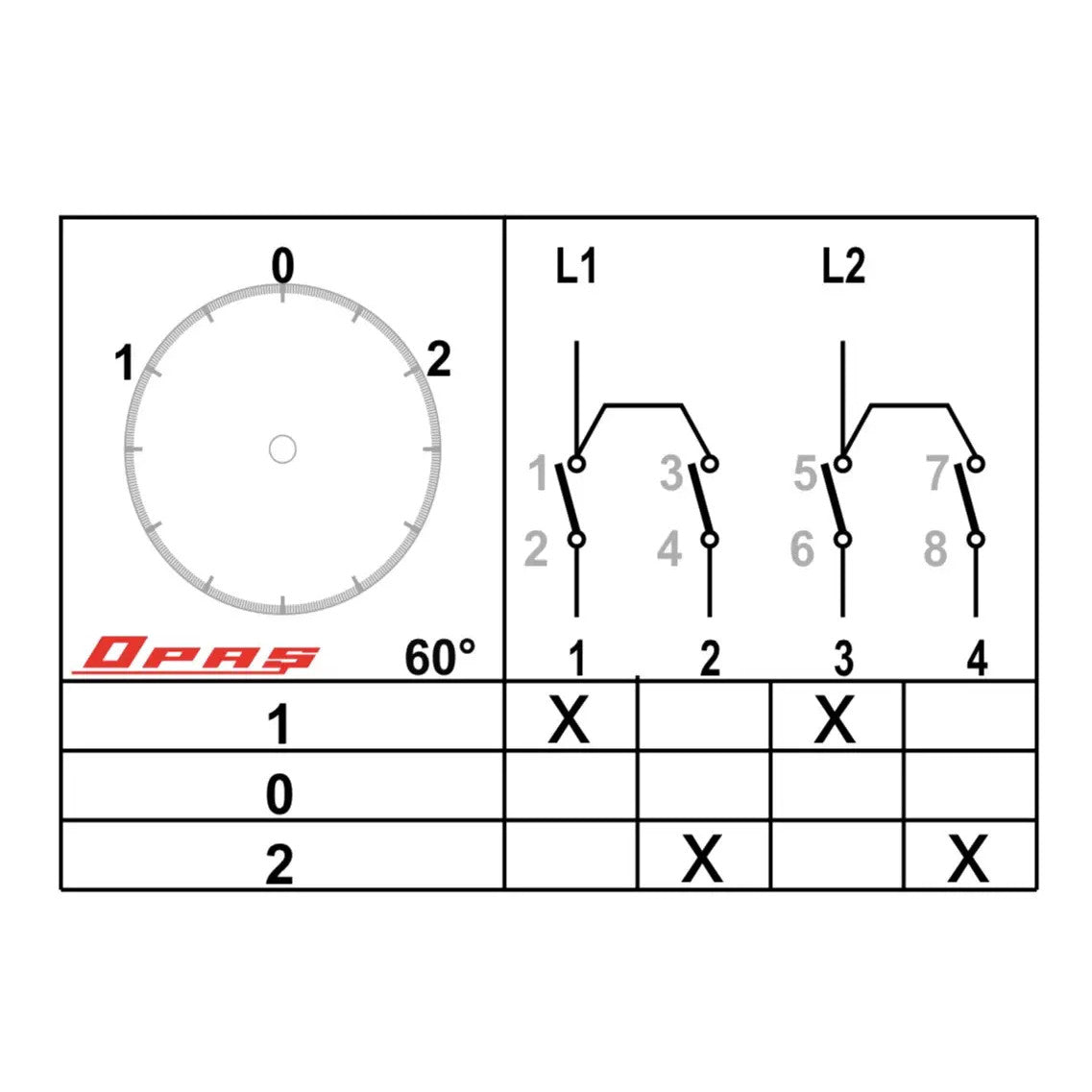

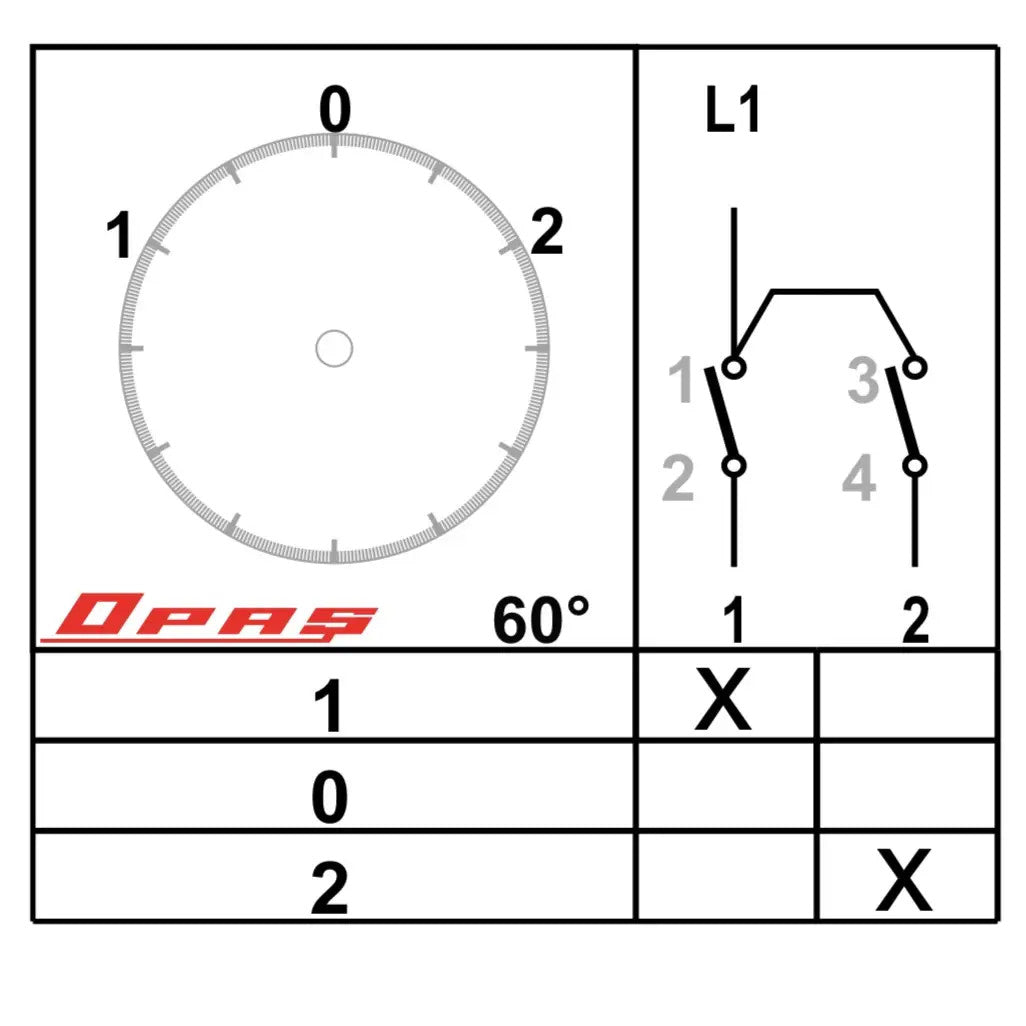

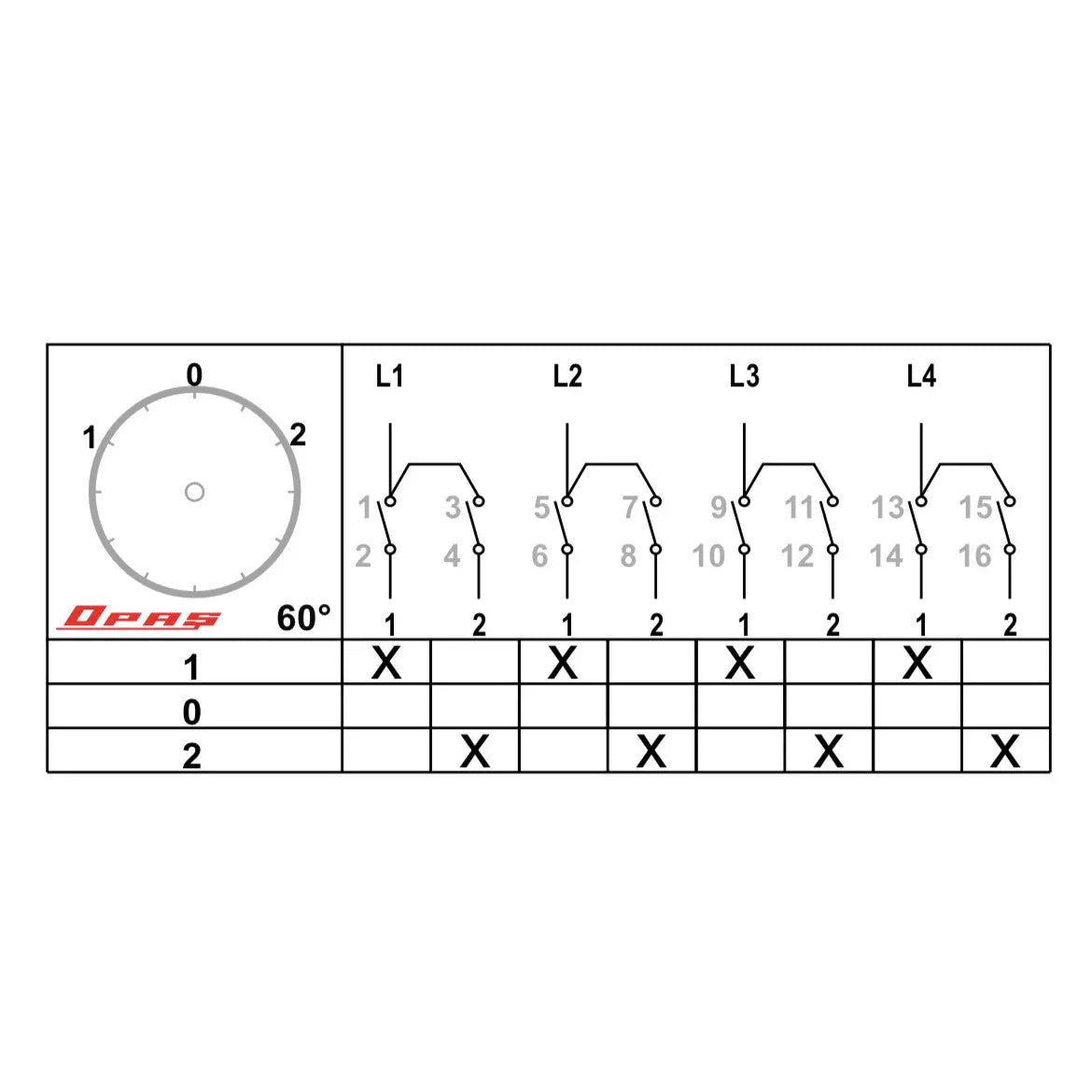

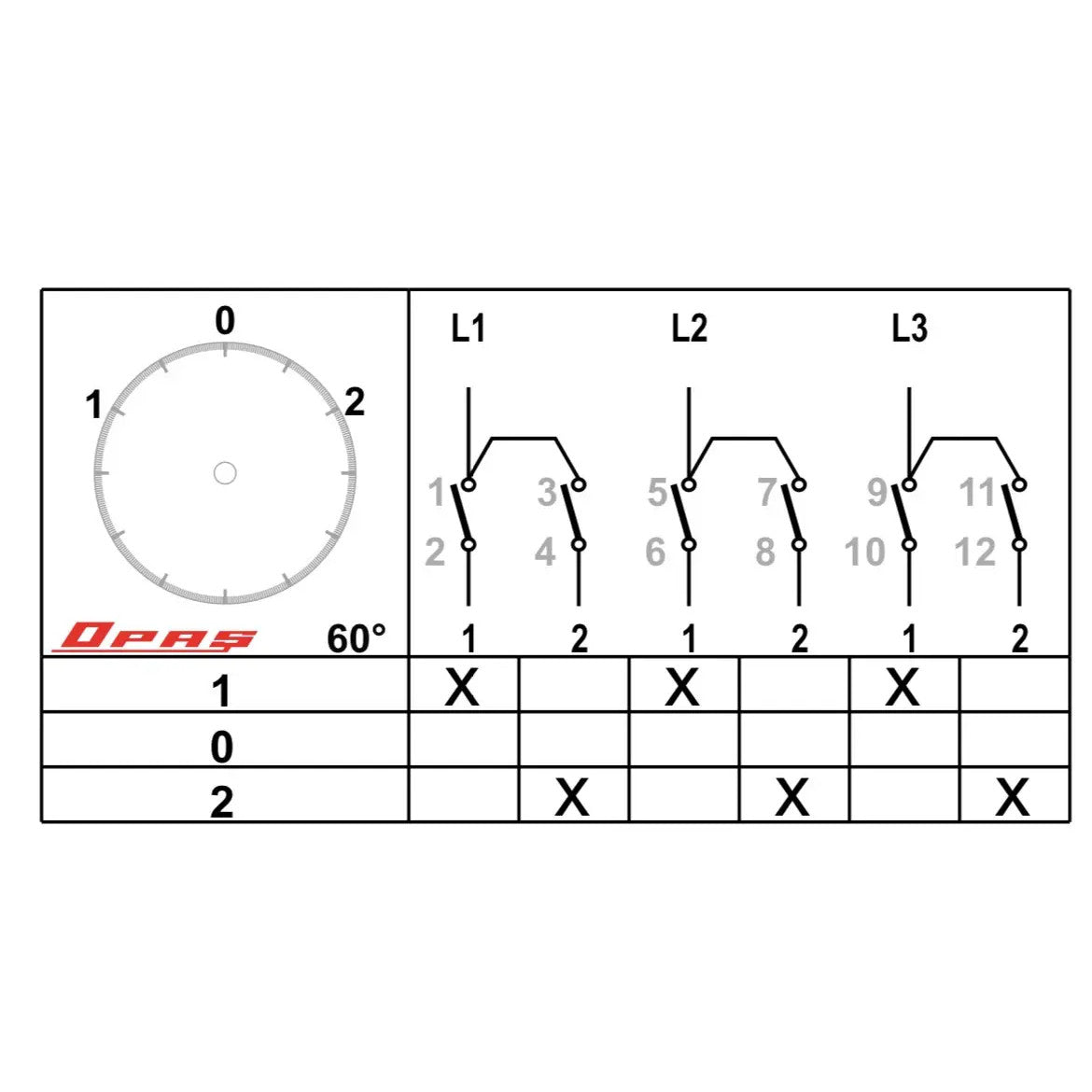

• Switching scheme: 1-0-2
• Number of poles: 1, 2, 3, 4
• Contacts rating (AC23): 16A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 115A, 125A, 160A, 200A, 250A, 315A, 400A
• Type: Built-in
• Degree of protection against dust and water: IP20 (Frontal Protection), IP65 (with optional box)
• Number of operating positions: 3
• Operation life (Mechanical cycles): 500000 (32A and up) / 750000 (up to 25A)
• Operation life (Electrical cycles): 50000
• Switching per hour: 600
• Ui: 660V
• Ue: 230V / 400V
• Frequency: 50 ... 60 Hz
• Body heat-resistant: up to 1200 °C
• Medium operating temperature range: -20 to +60 °C
• Standards: EN6097-3, EN60947-3, EIC, CE
• Manufacturer: OPAŞ
• Country of origin: Turkey

You can use our plastic IP65 enclosure with this rotary cam switch to secure water and dust protection, please follow this link.
