ONKA 6mm2 Hybrid Screw / Spring clamps Terminal DIN Rail Terminal Block 2-wires, grey, 1040012
- Regular price
- £1.04
- Regular price
-
- Sale price
- £1.04
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Screw + Spring (Push-in) clamps hybrid connector / DIN rail terminal for 2-wires, grey, ONKA, made in Turkey
ONKA's compact installation rail couplers provide great possibilities for connecting any wire of different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. The original ONKA quick couplers are a convenience in installation and 100% connection reliability.

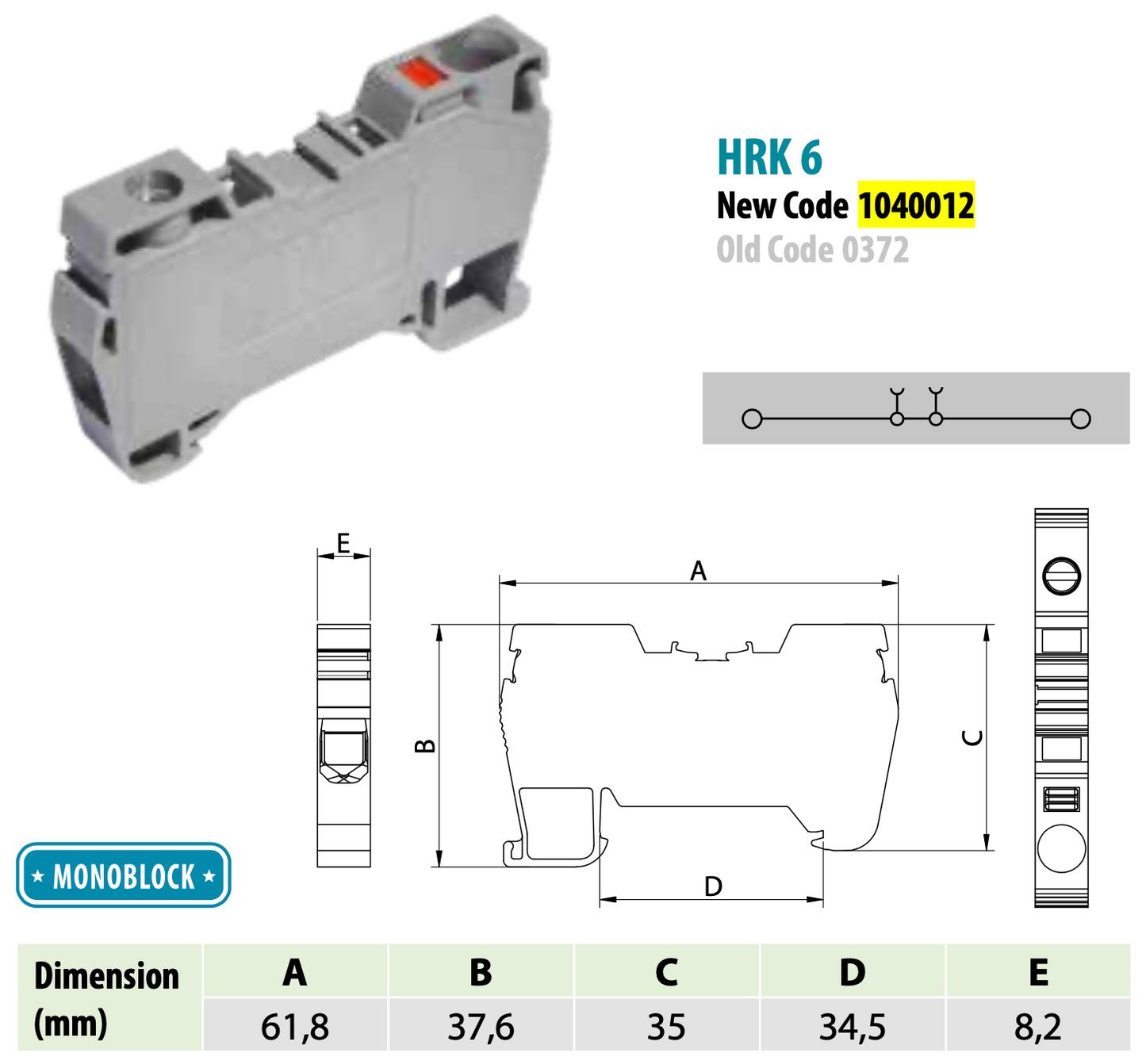

Technical parameters
Cross section of the connected single wire up to: 6mm2
Colour: grey
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 Steel/ Stainless steel/ Copper
Torque: 0.4 Nm
Connection position: Top / Side
Cable strip length: 10mm
Electrical connection type: screw clamp / spring clamp
Rated Voltage: 750V
Rated current: 41A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
