Vendor: ONKA
1200/5A CT Current transformer ONKA, Cl 0.5s, 15VA TK8012005309 / BR-80011770
SKU:
BR-80011770
Price including VAT:
- Regular price
- £26.70
- Regular price
-
- Sale price
- £26.70
- Unit price
- per
30 in stock
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty

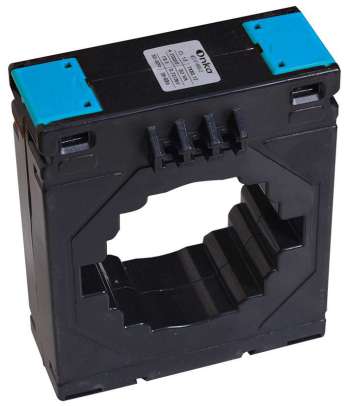

ONKA 1200/5 instrument measurement current transformer with rated output 15 VA, accuracy class 0.5s, sealable cover. Panel/cable/busbar mount adapter included.

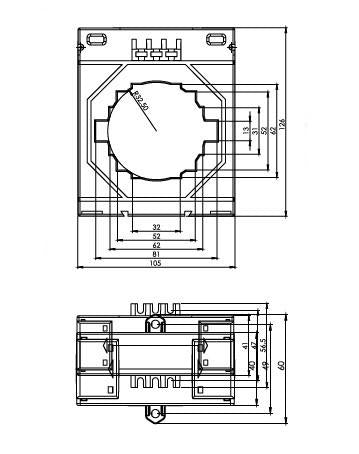

A compact, moulded-case current transformer for primary currents up to 1200A, with built-in sealable terminal covers. It transforms primary AC currents into a standard 5A secondary current and accepts cables up to Ø65 mm, busbar 13mm x 81 mm, 31mm x 62mm, 52mm x 52mm
Technical specifications:
- Current ratio 1200/5A
- Burden: 15VA
- Accuracy Class: 0,5s
- Mount Type: Panel, cable, busbar
- Bore Size: Ø 65 mm, 13mm x 81 mm, 31 mm x 62 mm, 52 mm x 52 mm
- Rated short time thermal current: Ith = 60 * In
- Rated continuous thermal current: Id = 1.2*In
-
Ambient temperature -25°C to + 85°C (0-95% relative humidity, non condensing)
- Rated frequency: 50 Hz ... 60 Hz
- Over current limiting factor: FS5
- Rated isolation level: 0.72/3 kV
- Standards/Approvals: IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN57414, BS3938, BS7626, EN 61869-2
