0-1-START rotary cam switch (OFF-ON-START) with spring, 1 or 3-poles 16-40A, YPT1S1 / YPT3S1, 3 position motor control switch

ON-OFF + Start rotary cam switch (0-1-start) motor control switch, 1-3 poles, YPT1S1 / YPT3S1, OPAŞ (Turkey)

OPAŞ rotary cam switches are specialized electrical devices designed to control multiple circuits through a single switch mechanism. They operate by rotating a shaft that engages various contacts, allowing the user to make or break connections between different electrical circuits. This functionality enables precise control over complex electrical systems, making rotary cam switches essential in various applications, from industrial machinery to household appliances.

Reliable OPAS rotary cam switches are being produced since 1982 and developed according to the standards EN6097-3, EIC and CE and designed for harsh industrial environments and use special materials for contacts (AR-GE) and terminals (screws and bolts are nickel-coated) are fully comply with EN60947-3 for a long mechanical and electric lifespan.

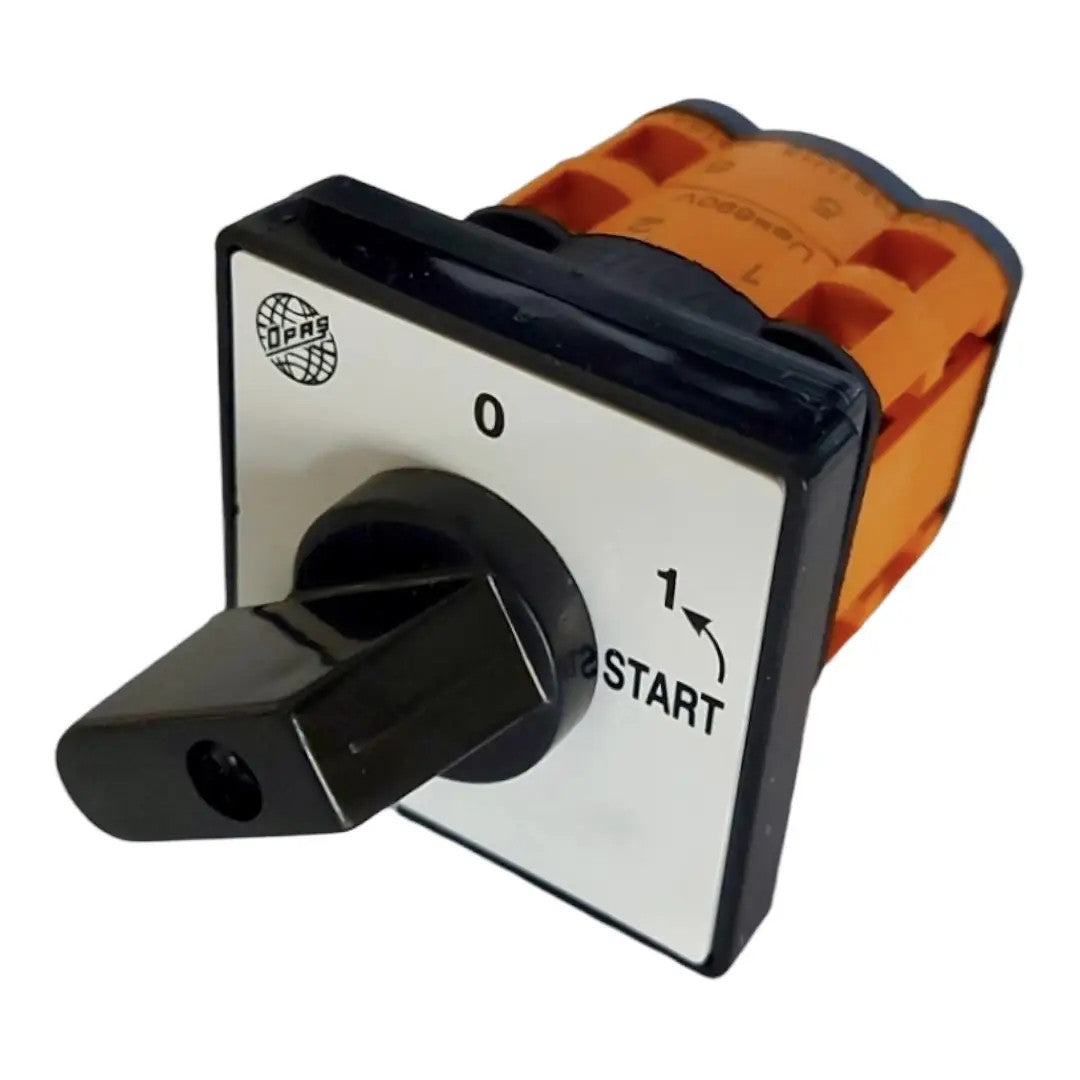

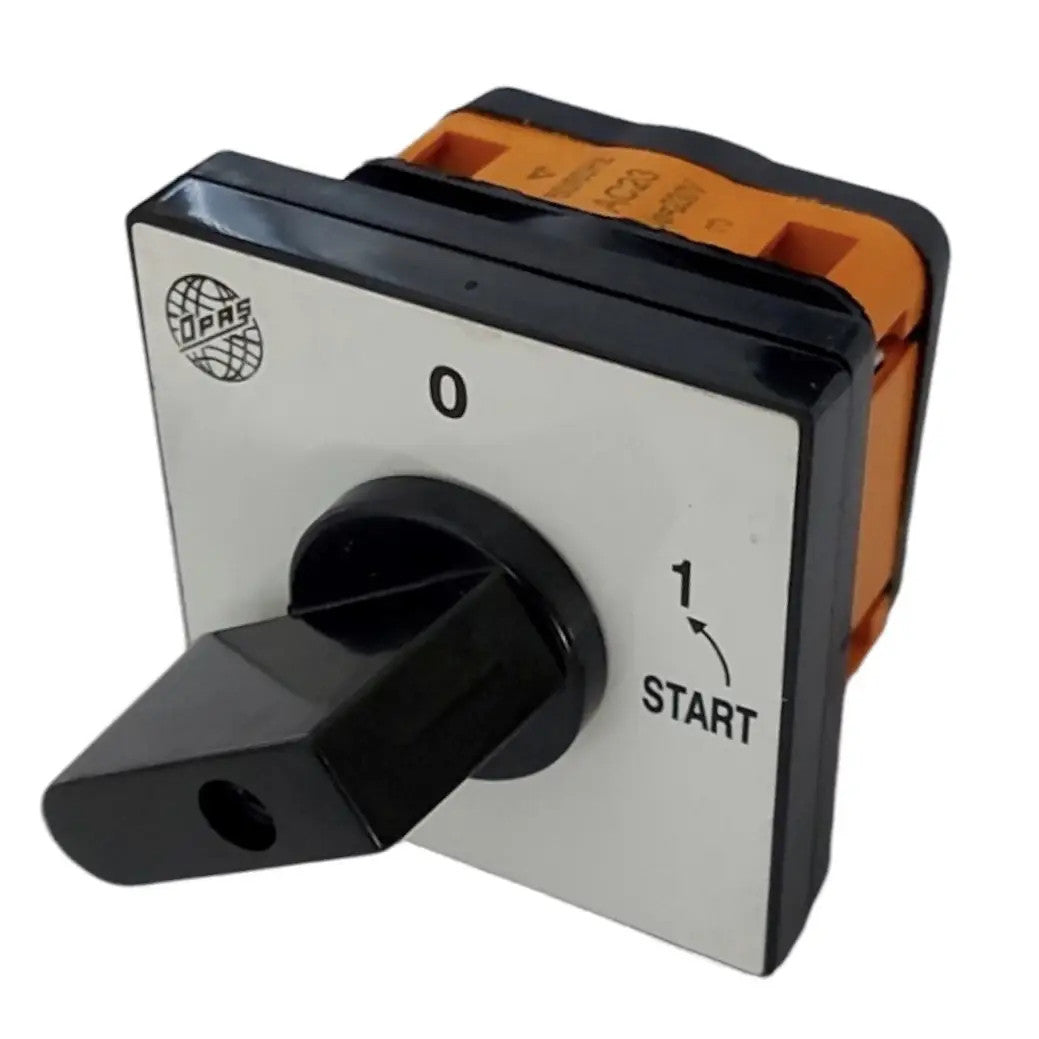

YPT1S1 / YPT3S1 rotary cam switches are suitable for circuit connection, switching ON and OFF as well as motor starting (switch returns to position "1" from position "start" after you release the knob)

Technical specifications:

• Type of switch: Motor Control Switch

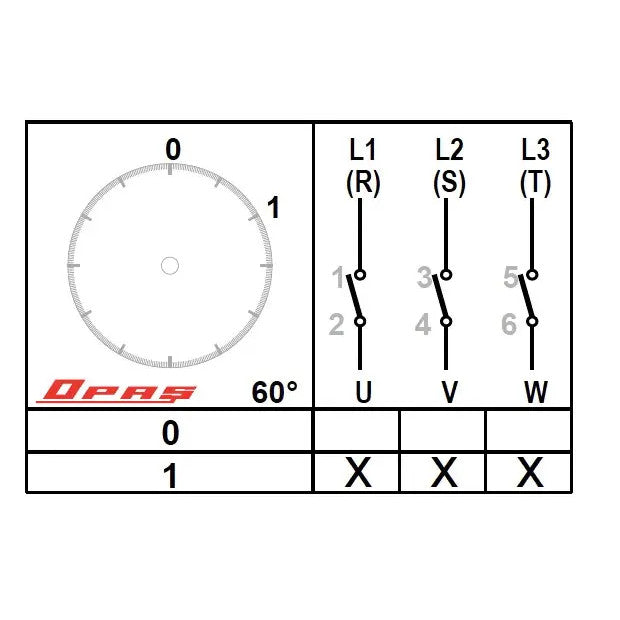

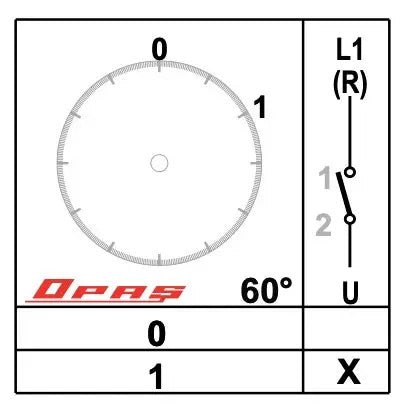

• Switching scheme: 0-1-START
• Number of poles: 1, 3
• Contacts rating (AC23): 16A, 25A, 32A, 40A
• Motor power rating (AC23/400V): 5kW, 8kW, 17kW
• Type: Built-in
• Degree of protection against dust and water: IP20 (Frontal Protection), IP65 (with optional box)
• Number of operating positions: 3
• Operation life (Mechanical cycles): 500000 (32A and up) / 750000 (up to 25A)
• Operation life (Electrical cycles): 50000
• Switching per hour: 600
• Ui: 660V
• Ue: 230V / 400V
• Frequency: 50 ... 60 Hz
• Body heat-resistant: up to 1200 °C
• Medium operating temperature range: -20 to +60 °C
• Standards: EN6097-3, EN60947-3, EIC, CE
• Manufacturer: OPAŞ
• Country of origin: Turkey

You can use our plastic IP65 enclosure with this rotary cam switch to secure water and dust protection, please follow this link.
