10A 250V Red DIN Rail Bimetal Enclosure Thermostat NC / Temperature controller / Temperature Switch, For Heating, 0-60°C, For Electrical or Automation Cabinets / Panels, PTOT01, OPAS
Price including VAT:
- Regular price
- £5.95
- Regular price
-
- Sale price
- £5.95
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Download
- Payment methods
- Warranty

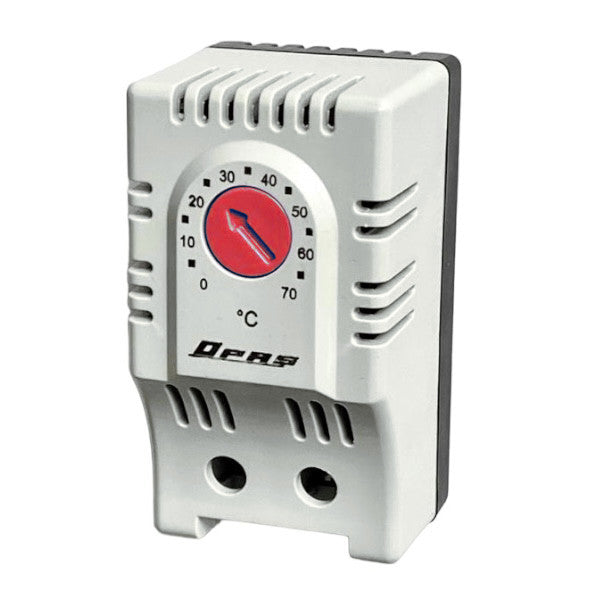

DIN Rail Temperature Controller Enclosure Thermostat Switch For Electrical Cabinets 0 To 60°C Range Bimetal Sensor Compact Size, OPAŞ (Turkey)
This compact size bimetal thermostat provides reliable control over electrical heaters, fans, cables making sure that desired temperature will be kept in automation or communication cabinets, electrical panels, kiosks, mail boxes, money machines , etc.
Simple thermostat. 220(250) V AC. Bimetal sensor with type, heating function. electrical connection with 2 terminals 2,5 mm2. mounting mode on 35mm DIN rail.
With wide control range from 0°C to 60°C, it could cover any temperature requirements for heating applications.
Constructed with a plastic shell and temperature-sensing components, this DIN rail thermostat is built to last - for over 100,000 operational cycles, this device guarantees long lifespan in harsh environment.
Thermostat opens on temperature rise - for regulating heaters or for switching signal devices. Comes with red temperature dial.
|
Characteristics |
PTOT001 |
|
Contact type |
NC |
|
Setting range |
0-60 °C |
|
Potentiometer colour |
Red |
|
250V AC / 120V AC |
10 (2) A |
|
Sensor type |
Bimetal |
|
Mounting Type |
Snap-on |
|
Lifetime |
> 100.000 |
|
Electrical connection |
2-pole, screw clamp terminals |
|
Plastic material |
UL94 V0 ABS Flame Retardant |
|
Degree of protection |
IP20 |
|
Operating temperature |
-25 / +80 °C |
|
Storage temperature |
-45 / +80 °C |
|
Installation |
DIN rail 35mm |
|
Dimensions HxWxD |
61x34x38 mm |
|
Weight |
43g |
As long as this thermostat is a mechanical temperature regulator, please accept that the scale of the device is quite approximate. Therefore, when setting the required temperature, please conduct several tests and make sure that the thermostat operates in the range you need (hysteresis is about 7K)
