Vendor: TENSE

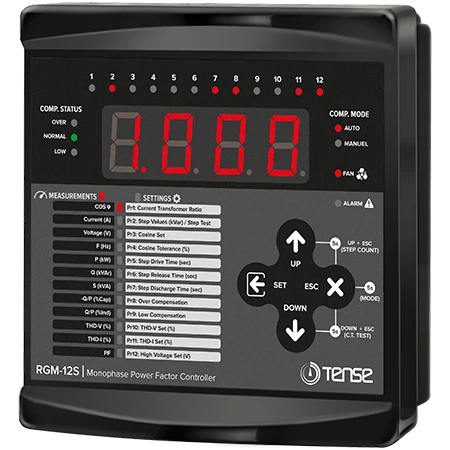

12 level reactive power controller with LED screen

SKU: RGM-12S
£151.96
£151.96
Out of stock
  • Description
  • Download
  • Payment methods
  • Warranty

12 steps Single-phase connection Power factor controller for power factor control in networks with symmetrical loads (TENSE)

The RGM-12S reactive power control relay is designed to reduce inductive powers that do not use loads but are drawn from the grid. When inductive reactive power is drawn from the grid, it intervenes by activating the capacitors of the appropriate value. In this way, it tries to get the Cos fi value to the desired level.

  • 7 Different power factor compensation programs

  • Manual power factor compensation programs

  • Can only compensate inductive systems

  • Automatic step measurement

  • Step drive, release and discharge times are adjustable

  • Harmonic alarm values of voltage and current adjustable

  • Over and under compensation alarm values can be set

  • Voltage, harmonic voltage/current, over and under compensation alarm output

  • Voltage, current and frequency values can be monitored

  • Active power, reactive power and apparent power values can be monitored

  • Up to 15th harmonic THD-I can be monitored

  • Up to 15th harmonic THD-V can be monitored

  • Cosine value can be monitored

  • Power factor value can be monitored

  • Automatic fan output

  • Equal aging in steps (in some compensation programs)
