DIN rail mounted pump / hydrophore control sequencing relay (2 pump switch), HSR-02X TENSE (Turkey)

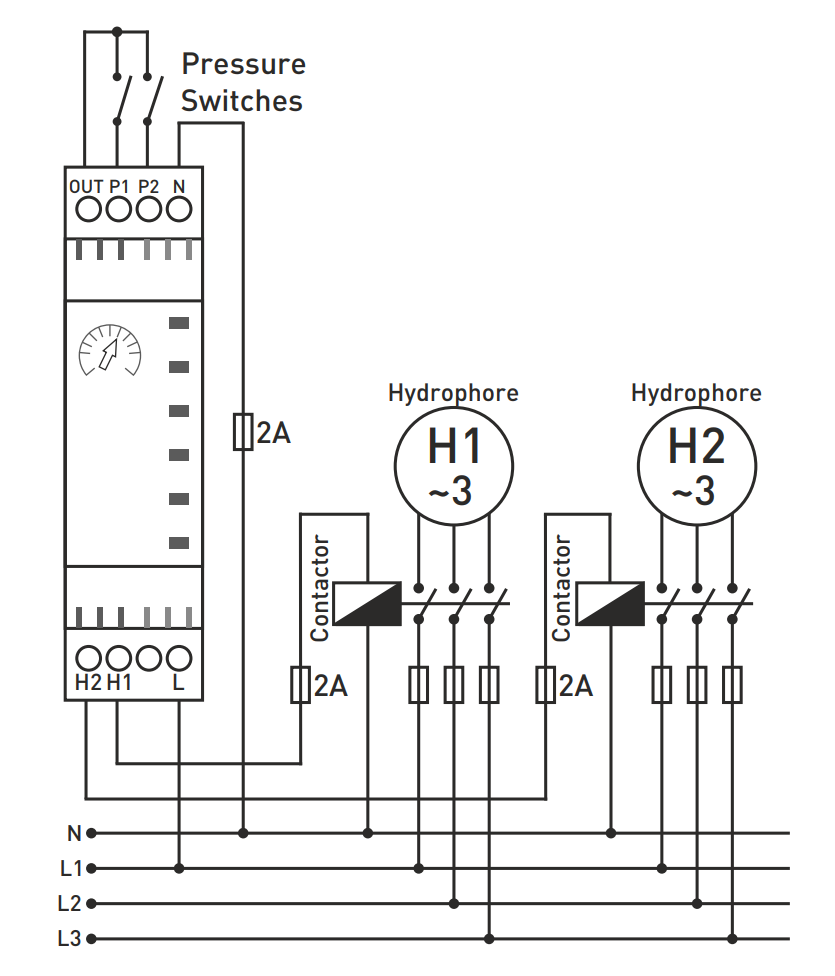

TENSE HSR-02X is developed for hydrophore pump systems that contain 2 pumps to make the pumps work in sequence and with equal time periods. The operating time can be set by the user between 10 minutes and 12 hours. Controller has 2 Pressure Switch Inputs and 2 Pump Outputs.
Main task of this relay is to make pumps to be run alternately for equal periods to ensure equal wear and therefore longer service intervals for both pumps and to minimised pump failures through nearly equal operating time.
Operation modes:
- Alternating time dependent pump activation
- Pressure Pump activation
Application area:
- Water management systems
- Sewage pumping station
- Centrifugal Pumps
Main parameters
- Operating voltage: 150V ... 260V AC
- Operating frequency: 50/60Hz
- Power consumption: less than 6VA
- Operating temperature: -20C ... +55C
- Output relay: max 3A, 250VAC (resistive load)
