3-phase network parameter analyzer of power frequency voltage currents RS485

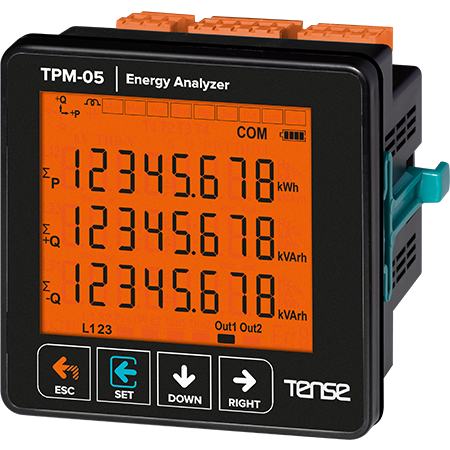

3-phase network parameter analyzer - three-phase multifunction digital panel meter, current, voltage, frequency and total power indicator, with two relay outputs and digital input, RS485 ModBus RTU - TPM-05 manufacturer TENSE (Turkey) panel meters.

Power analyzers are designed to measure and monitor electrical values. Thanks to the communication function, energy measurements can be monitored and reported independently. Analyses such as energy quality, efficiency and unit cost calculations can be performed using energy analyzers.

Main advantages:

• RS485 Modbus RTU (1200-115200bps)
• 3-phase voltage transformer and 3-phase current transformer.

• Displays voltage and current harmonics up to 55th harmonic

• Shows active power per phase (P)

• Shows reactive power per phase (Q, inductive and capacitive)

• Shows apparent powers in phase (S)

• Shows the Cosφ and power factor values of each phase

• Shows the phase-neutral, phase-to-phase voltage (V) and current (I) values of each phase, measuring frequency

• Displays total active energy import and export values (ΣkWh)

• Displays total inductive and capacitive reactive energy values (ΣkVArh)

• Displays minimum and maximum values, max. need

• 2 relay outputs, 1 digital input

• Event logs (high/low voltage/current, voltage/current imbalance, THD-I, power interruption)

• Actual date and time (RTC)

• Menu is password protected.

Usually this network analyzer is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can buy such transformers in our e-shop, If you are going to connect the analyzer to ModBus, we will send you on request a Register Table with ModBus addresses
