Air conditioning for switchboards / Cooler 1600W, PAD1600.01, Plastim
- Regular price
- £1,785.89
- Regular price
-
- Sale price
- £1,785.89
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Download
- Payment methods
- Warranty
Air conditioner for switchboard / cooler 1600 watt (Design Series) for switchboard and automation board side or wall mount.
The PAD1600.01 (PLASTIM) switchboard air conditioner features HIGHLY's state-of-the-art open type rotary compressor, Dixell thermostat, condensate evaporator and limit switch for controlling switchboard door opening.
Everything needed to install the air conditioning for the cabinet is included - gaskets, waste pipe, mounting screws, power connector.
|
TECHNICAL DETAILS |
PAD1600.01 |
|
Cooling Capacity L35 / L35 |
1600W / 5500BTU |
|
Operating Voltage |
230VAC |
|
Frequency |
50/60 Hz |
|
Starting Current |
8A |
|
Operating Current |
3.2A |
|
Fuse |
10A |
|
Power Consumption |
725W |
|
Operational Range |
0-55 °C |
|
Thermostat Factory Setting |
35 °C |
|
Differential |
4 °C |
|
Max. Air Volume Internal Circuit |
510 m³/h |
|
Max. Air Volume External Circuit |
510 m³/h |
|
Type of Refrigerant |
R134a |
|
Amount of Refrigerant |
600gr |
|

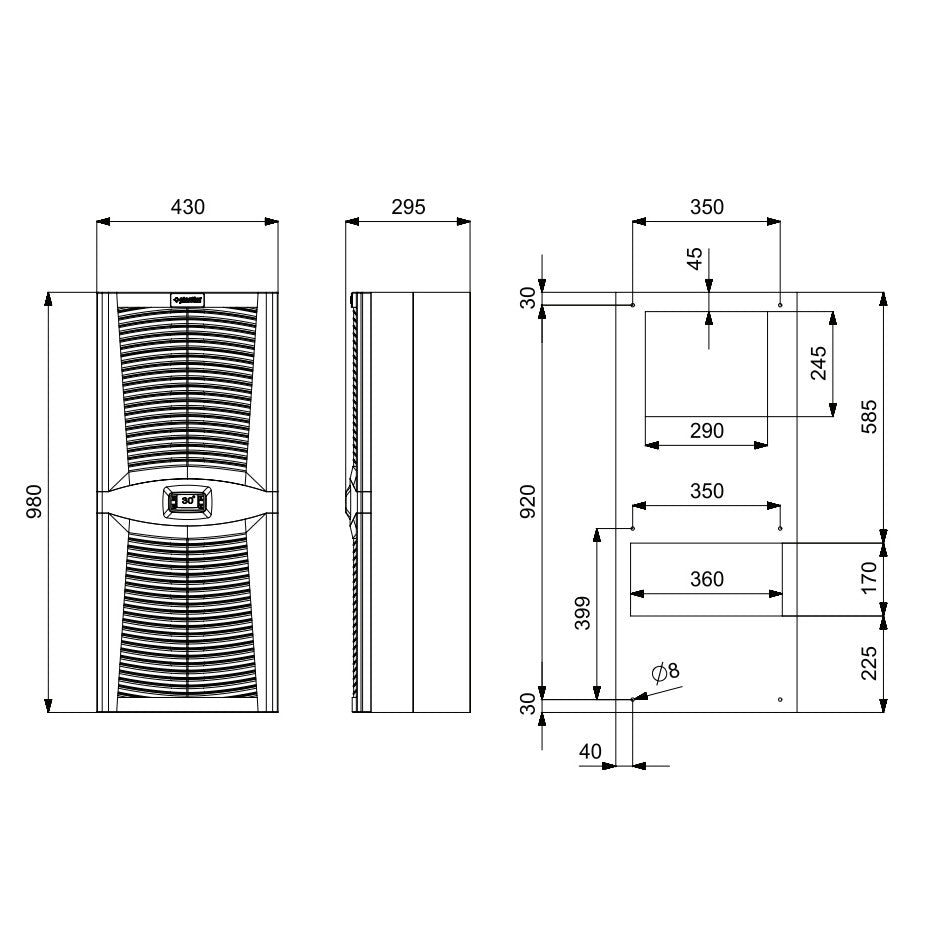

Dimensions |
980x430x270mm |
|
Weight |
45kg |
|
Sound Level |
79dB |
|
Protection Degree (Internal Circuit) |
IP 54 |
|
Protection Degree (External Circuit) |
IP 34 |
|
Color |
RAL7035 |
|
Compressor |
HIGHLY/HITACHI |
|
Compressor Type |
Rotary |
|
Fans |
EBMPAPST |
|
Mounting Method |
Wall Mount |
