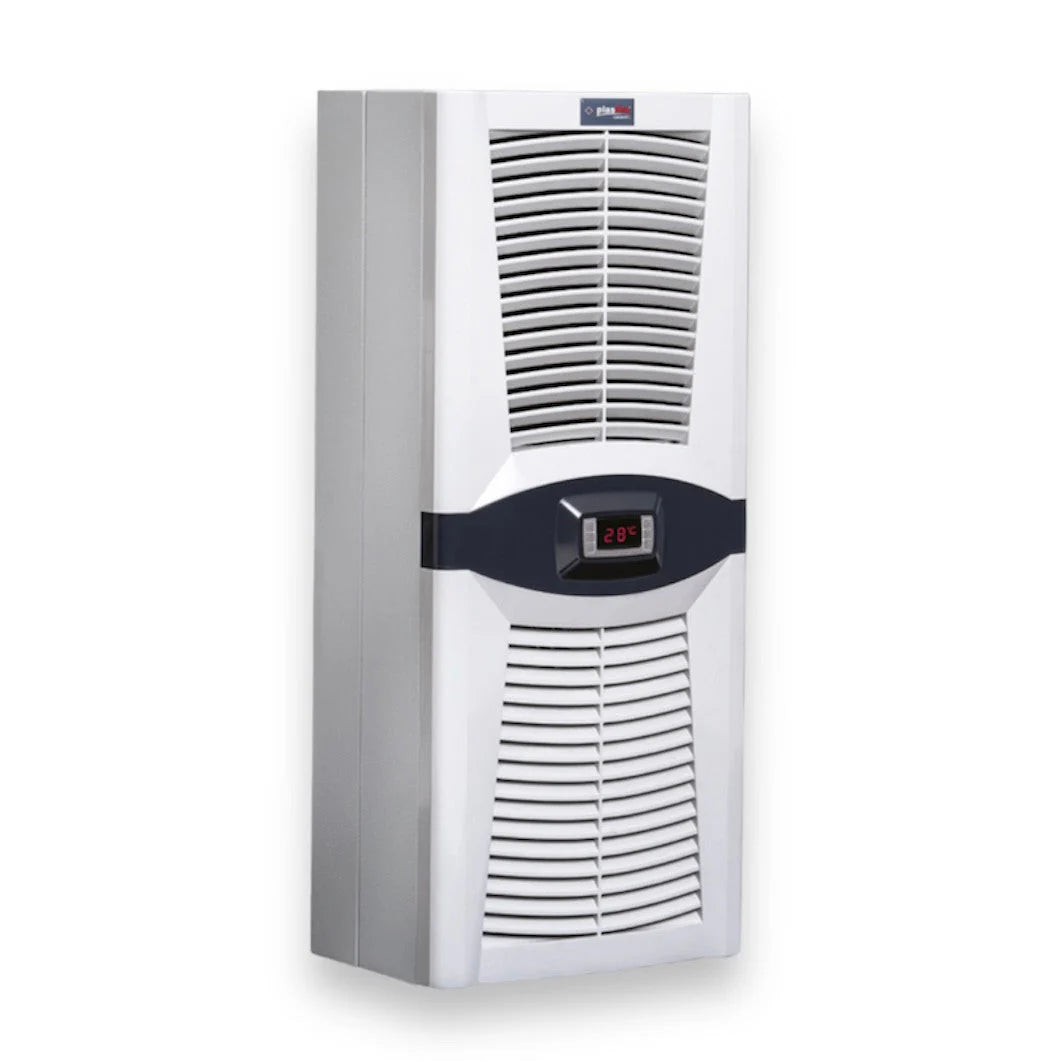

Air conditioning for switchboards / Cooler 3550W PAD3550.01

Sold
SKU: PAD3550.01
Common price £2,802.10 including VAT

"Design Series" Air conditioner for switchboard / chiller 3500 Watt for switchboard and automation board side or wall mount.

The PAD3550.01 (PLASTIM) air conditioner for switchboards features HIGHLY's state-of-the-art open type rotary compressor, Dixell thermostat, condensate evaporator and limit switch for controlling switchboard door opening.

Everything needed to install the air conditioning for the cabinet is included - gaskets, waste pipe, mounting screws, power connector.

TECHNICAL DETAILS

PAD3550.01

Cooling Capacity L35 / L35

3500W / 11970BTU

Operating Voltage

230VAC

Frequency

50/60 Hz

Starting Current

11A

Operating Current

3.8A

Fuse

16A

Power Consumption

800W

Operational Range

0-55 °C

Thermostat Factory Setting

35 °C

Differential

4 °C

Max. Air Volume Internal Circuit

510 m³/h

Max. Air Volume External Circuit

625 m³/h

Type of Refrigerant

R134a

Amount of Refrigerant

750gr

Dimensions

1200x430x270mm

Weight

47kg

Sound Level

82dB

Protection Degree (Internal Circuit)

IP 54

Protection Degree (External Circuit)

IP 34

Color

RAL7035

Compressor

HIGHLY/HITACHI

Compressor Type

Rotary

Fans

EBMPAPST

Mounting Method

Wall Mount
