Air conditioning for switchboards / Cooler 380W, PAD0380.01, Plastim
- Regular price
- £1,078.74
- Regular price
-
- Sale price
- £1,078.74
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Download
- Payment methods
- Warranty

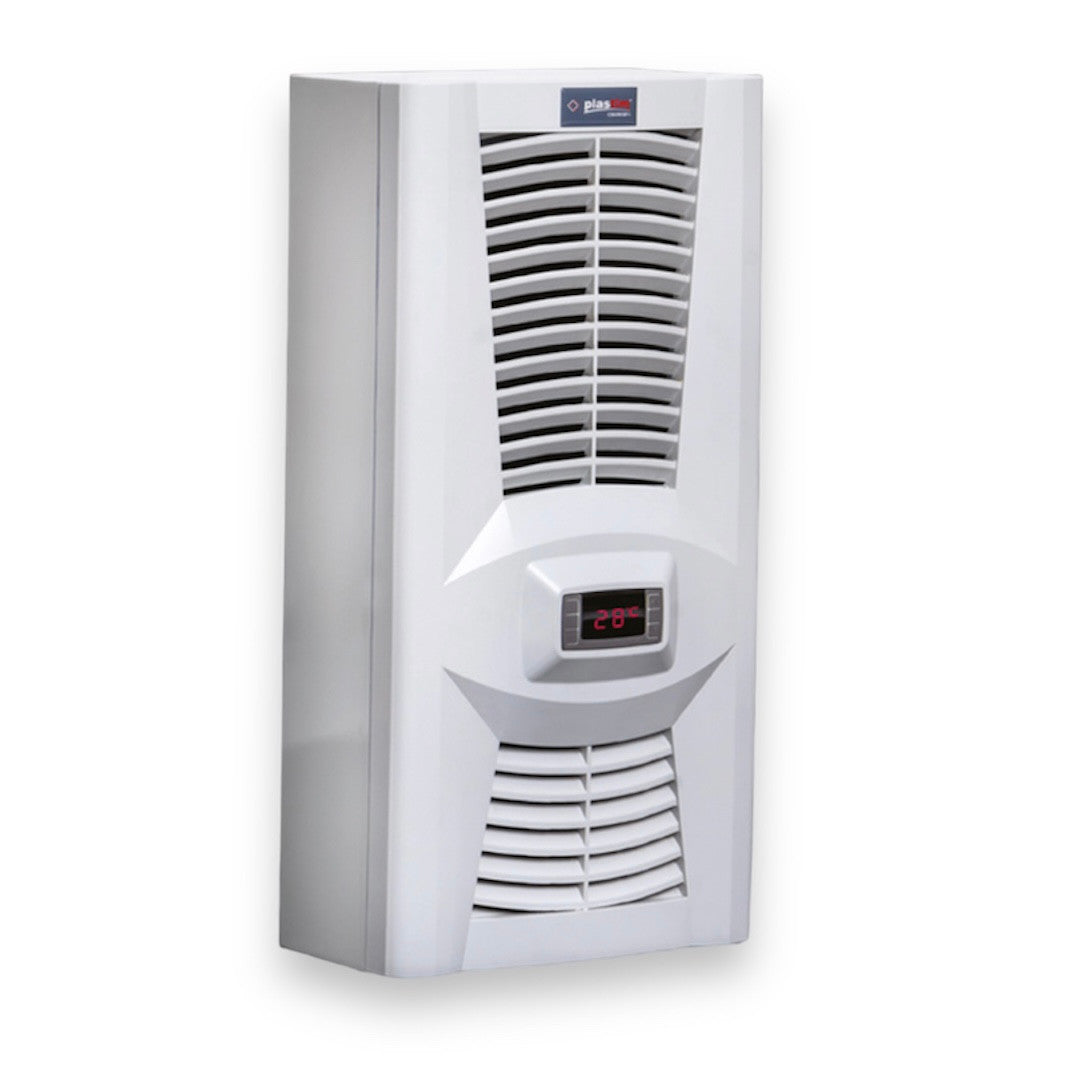

"Design Series" air conditioner for switchboard / chiller 380 Watt / 1300 BTU for switchboard and automation board side or wall mount.
The PAD0380.01 (PLASTIM) air conditioner for switchboards features HIGHLY's state-of-the-art open type rotary compressor, Dixell thermostat, condensate evaporator and limit switch for controlling switchboard door opening.
Everything needed to install the air conditioning for the cabinet is included - gaskets, waste pipe, mounting screws, power connector.
| TECHNICAL DETAILS | PAD0380.01 |
| Cooling Capacity L35 / L35 | 380W / 1300BTU |
| Operating Voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting Current | 3.7A |
| Operating Current | 1.1A |
| Fuse | 5A |
| Power Consumption | 325W |
| Operational Range | 0-55 °C |
| Thermostat Factory Setting | 35 °C |
| Differential | 4 °C |
| Max. Air Volume Internal Circuit | 340 m³/h |
| Max. Air Volume External Circuit | 340 m³/h |
| Type of Refrigerant | R134a |
| Amount of Refrigerant | 120gr |
| Dimensions | 560x285x150mm |
| Weight | 15kg |
| Sound Level | 75dB |
| Protection Degree (Internal Circuit) | IP 54 |
| Protection Degree (External Circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor Type | Rotary |
| Fans | EBMPAPST |
| Mounting Method | Wall Mount |
Description
Online card / PayPal payment - after completing the order, you will be redirected to the payment gateway, payment confirmation will be sent to your email.
Bank deposit- you will transfers money from you bank account into our bank account to complete your purchase. You will receive an invoice to your email no later than the next working day.
We warrant that on delivery, and for a period of 12 months from the date of delivery any products which are goods shall:
- conform in all material respects with their description and any relevant specification;
- be free from material defects in design, material and workmanship;
- be of satisfactory quality
- In the event of any goods being materially defective, we will replace or repair the product or refund the purchase price.
These warranties shall not apply to any defect which arises from improper use, failure to follow the product instructions, or any repair or modification made without our consent.
