Air conditioning for switchboards / Cooler 550W, PAD0550.01, Plastim
- Regular price
- £1,154.52
- Regular price
-
- Sale price
- £1,154.52
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Download
- Payment methods
- Warranty
"Design Series" air conditioner for switchboard / cooler 550 Watt / 1900BTU for switchboard and automation board side or wall mounting.
The PAD0550.01 (PLASTIM) air conditioner for switchboards features HIGHLY's state-of-the-art open type rotary compressor, Dixell thermostat, condensate evaporator and limit switch for controlling switchboard door opening.
Everything needed to install the air conditioning for the cabinet is included - gaskets, waste pipe, mounting screws, power connector.
| TECHNICAL DETAILS | PAD0550.01 |
| Soğutma Kapasitesi L35 / L35 | 550W / 1900BTU |
| Operating Voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting Current | 1.2A |
| Operating Current | 1.1A |
| Fuse | 6A |
| Power Consumption | 330W |
| Operational Range | 0-55 ° |
| Thermostat Factory Setting | 35 ° |
| Differential | 4 ° |
| Max. Air Volume Internal Circuit | 340 m³/h |
| Max. Air Volume External Circuit | 505 m³/h |
| Type of Refrigerant | R134a |
| Amount of Refrigerant | 245gr |

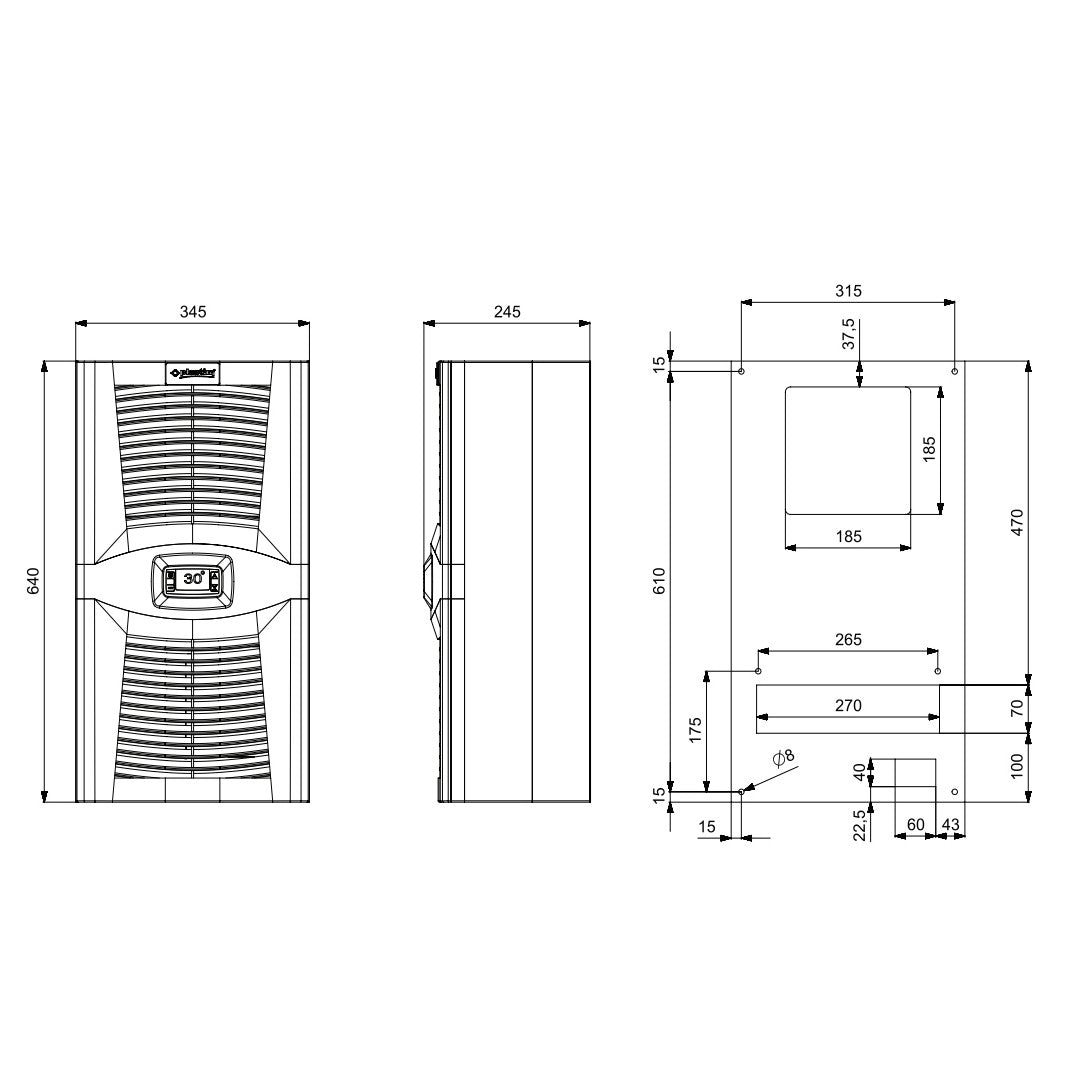

| Dimensions | 640x345x223mm |
| Weight | 27kg |
| Sound Level | 76dB |
| Protection Degree (Internal Circuit) | IP 54 |
| Protection Degree (External Circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor Type | Rotary |
| Fans | EBMPAPST |
| Mounting Method | Wall Mount |
