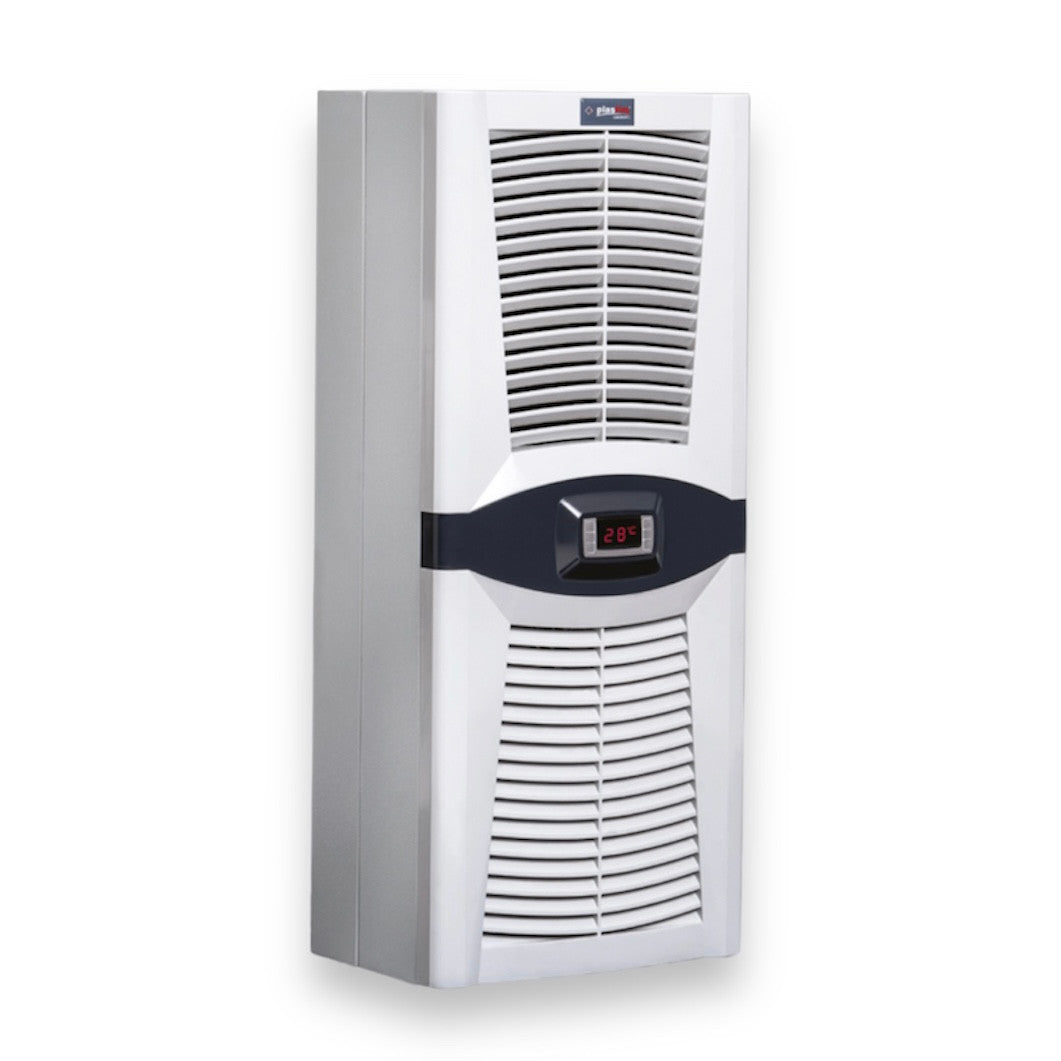

Air conditioning for switchboards / Cooler 850W, PAD0850.01, Plastim
- Regular price
- £1,352.95
- Regular price
-
- Sale price
- £1,352.95
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Download
- Payment methods
- Warranty
"Design Series" air conditioner for switchboard / chiller 850 Watt / 2990BTU for switchboard and automation board side or wall mount.
The air conditioner for switchboards PAD08500.01 (PLASTIM) is equipped with a modern open type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator and a limit switch to control the opening of the switchboard door.
Everything needed to install the air conditioning for the cabinet is included - gaskets, waste pipe, mounting screws, power connector.
| TECHNICAL DETAILS | PAD0850.01 |
| Cooling Capacity L35 / L35 | 850W / 2900BTU |
| Operating Voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting Current | 6A |
| Operating Current | 1.7A |
| Fuse | 10A |
| Power Consumption | 394W |
| Operating Range | 0-55 °C |
| Thermostat Factory Setting | 35 °C |
| Differential | 4 °C |
| Max. Air Volume Internal Circuit | 340 m³/h |
| Max. Air Volume External Circuit | 505 m³/h |
| Type of Refrigerant | R134a |
| Amount of Refrigerant | 290gr |
| Dimensions | 800x345x223mm |
| Weight | 30kg |
| Sound Level | 76dB |
| Protection Degree (Internal Circuit) | IP 54 |
| Protection Degree (External Circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor Type | Rotary |
| Fans | EBMPAPST |
| Mounting Method | Wall Mount |
