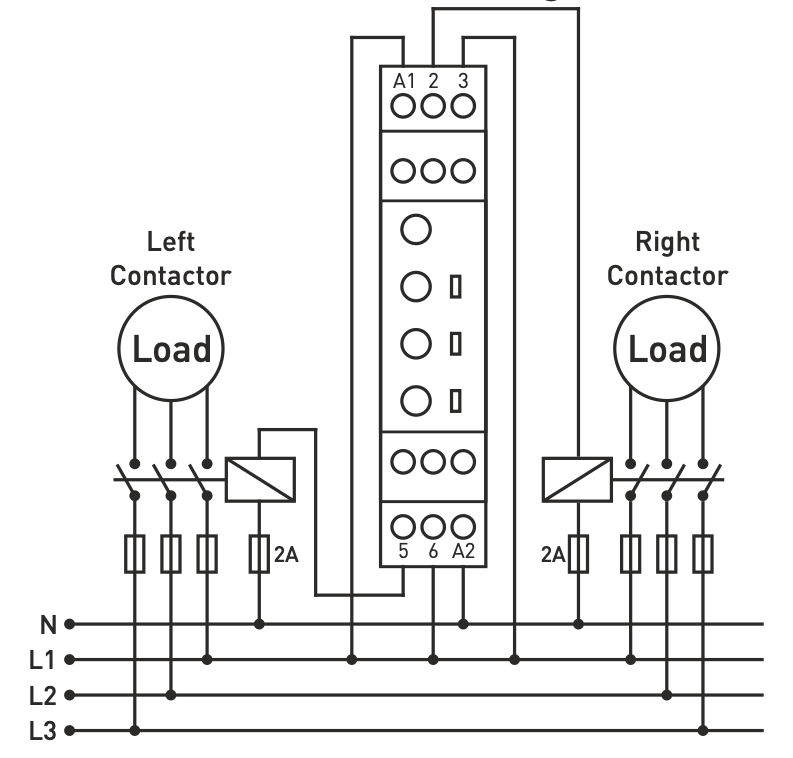

DIN rail mount asymmetric and symmetric cycle timer Right-Left / Up-Down / Forward-Backward / Inversor relay, DPDT, TENSE (Made in Turkey)
The ERS-07 by Tense Electronics is an Asymmetric Cyclic Right-Left (Inversor) Relay. It is designed to control two independent loads sequentially, commonly used for reversing electric motors or managing directional movements (e.g., "left-right," "up-down," "forward-backward").
Key Technical Specifications
- Operating Voltage: 150V – 260V AC.
- Time Ranges: Highly adjustable between 0.1 seconds and 100 minutes. Older or specific variants may list steps like 10s, 100s, 10m, or 100m.
- Contact Capacity: 5A / 250V AC (Resistive Load).
- Mounting: Standard DIN rail or panel mount.
- Indicators: Features LED indicators for Left, Right, and Off (waiting) states.
Operating Principle (The Cycle)
The relay operates in a continuous loop as long as power is supplied:
- Work (Left/Right 1): The first load is activated for the set duration (Time 1).
- Wait (Off): Both loads are deactivated for a set interval (Time 2) to allow for safe switching/deceleration.
- Work (Left/Right 2): The second load is activated for the set duration (Time 1).
- Wait (Off): Both loads are deactivated again for the set interval (Time 2) before the cycle repeats.
Common Applications
- Industrial Automation: Conveyor belts, mixers, and motor reversing systems.
- Agriculture: Irrigation systems in greenhouses.
- Commercial: Pool automation, advertising signage, and amusement park rides.
Technical Specification:
- Power supply: 150V...260V AC;
- Frequency: 50/60 Hz;
- Timer settings: 0,1s ...100m;
- Power consumption: <5VA;
- Operating temperature: -20C...+55C ;
- Mounting: 35mm DIN.
