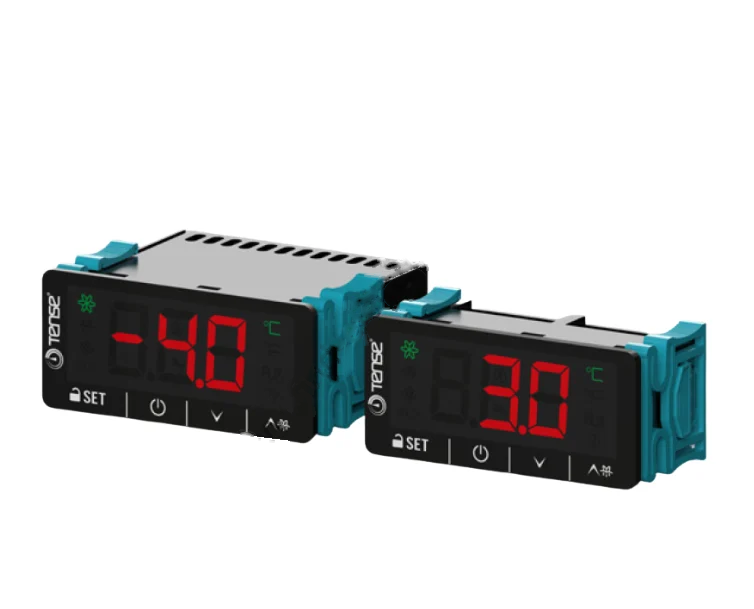

Cooling Digital Thermostat / Temperature controller, panel mounted, -50ºC ...+150ºC, 3 relay outputs , 2 temperature probes, digital input

SKU: DT-DF2

Price including VAT:

Regular price: £24.00
Regular price
Sale price: £24.00
Unit price: per

Out of stock

Product variants

Description
Download
Payment methods
Warranty

Standard controller for low-temperature freezers, bottle coolers, refrigerated cabinets, food storage systems, and pizza prep counters. Features integrated energy-saving algorithms and automated defrost management.

This controller provides accurate temperature management and integrated I/O for refrigeration systems, helping installers and engineers streamline panel builds and improve operational reliability.

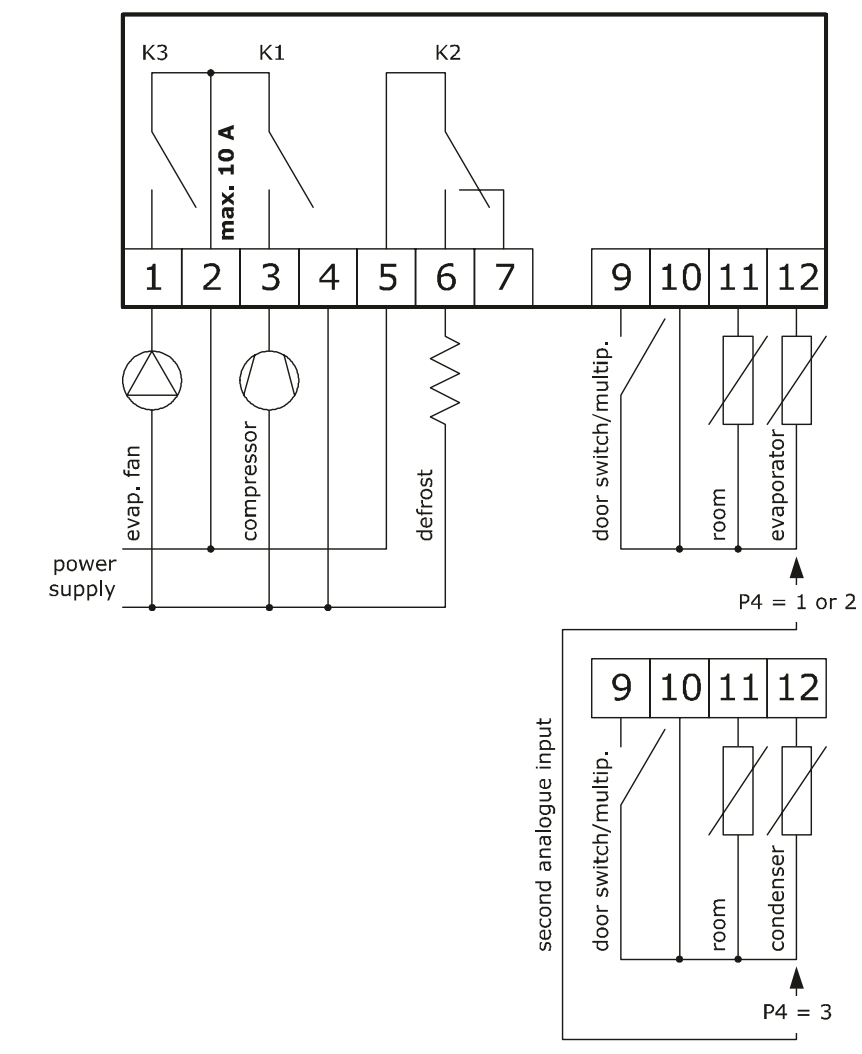

Compressor output: High-capacity (1 x SPST) up to 16A (3.7 HP)
Defrost management: One SPDT output up to 10A
Evaporator fan: One SPST output up to 5A
Digital input: Door switch (configurable as a multifunctional input for alarm or energy-saving functions)

Best suited for small-to-medium cold rooms where you need a dependable, all-in-one controller without additional complexity. Integrated refrigeration, defrost, fan outputs. Night energy-saving mode. Ideal for standard cold storage and display refrigeration.

Measuring and control scale: -50 °C to +150 °C
Resolution: 0.1 °C
Microprocessor-based
Probe type: NTC or PTC
Control form: ON-OFF
Settings: Compressor protection, defrost management (intervals, type), and evaporator fan settings
Digital input: For door switch, energy-saving mode, or external alarm
Security & Memory: Password protection and EEPROM memory to store settings
Installation: Easy connection with plug-in connectors

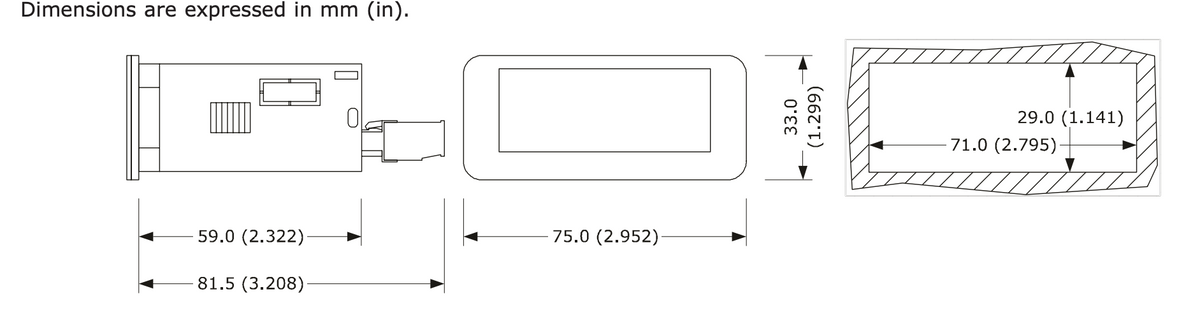

Dimensions: 33 x 75 x 82 mm (panel cut-out 29 x 71 mm)
Supply voltage: 230V AC, 50Hz, 2VA

Package Contents:

1 x DT-DF2 temperature controller with mounting brackets
2 x NTC probes (-40°C to 105°C / -40°F to 221°F), wire length approx. 145 cm*
1 x User manual (English)

* The wire can be extended by up to 10 metres. If extended, parameter "CA1/CA2" must be adjusted to compensate for the additional wire resistance (refer to the "WORKING SETPOINT AND CONFIGURATION PARAMETER" section of the user manual).

User Manual

User manual

Online card / PayPal payment - after completing the order, you will be redirected to the payment gateway, payment confirmation will be sent to your email.

Bank deposit- you will transfers money from you bank account into our bank account to complete your purchase. You will receive an invoice to your email no later than the next working day. Your order will be dispatched once we receive your payment

We warrant that on delivery, and for a period of 12 months from the date of delivery any products which are goods shall:

conform in all material respects with their description and any relevant specification;
be free from material defects in design, material and workmanship;
be of satisfactory quality
In the event of any goods being materially defective, we will replace or repair the product or refund the purchase price.

These warranties shall not apply to any defect which arises from improper use, failure to follow the product instructions, or any repair or modification made without our consent.
