Vendor: ONKA

4000/5A CT Current transformer ONKA, Cl 0.5s, 30VA for busbar mount DK12540005312 / BR-80011783

SKU: BR-80011783

Price including VAT:

£70.22
£70.22
12 in stock
  • Description
  • Payment methods
  • Warranty

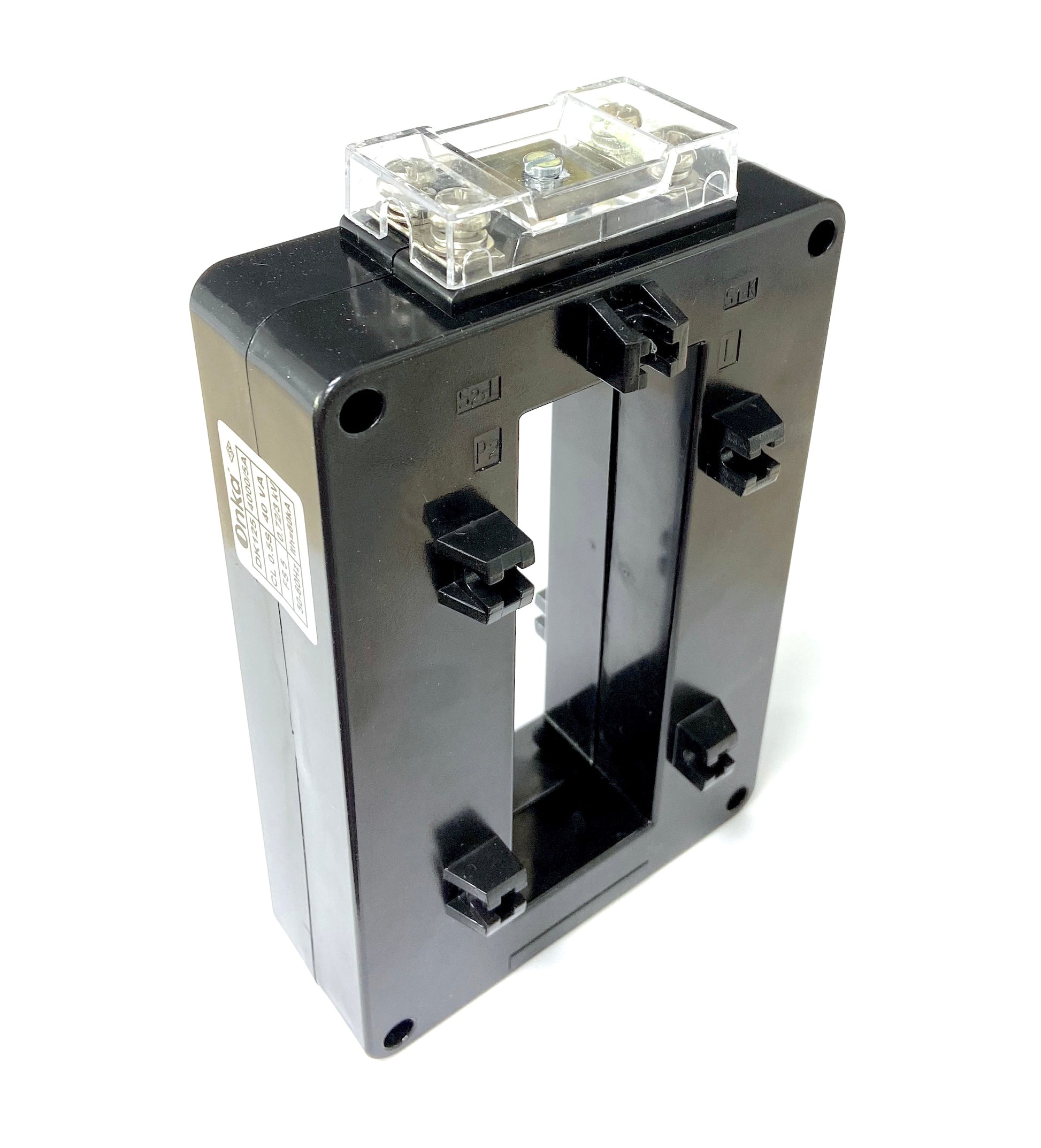

ONKA 4000/5 instrument measurement current transformer for busbar mounting applications with burden 30 VA, accuracy class 0.5s, sealable cover. Panel/busbar mount adapter included.

Moulded-case current transformer for primary currents up to 4000A, with built-in sealable terminal covers. It transforms primary AC currents into a standard 5A secondary current and accepts busbar 38,5mm x 126,5 mm

Technical specifications:

  • Current ratio 4000/5A
  • Burden: 30VA
  • Accuracy Class: 0,5s
  • Mount Type: Panel, busbar

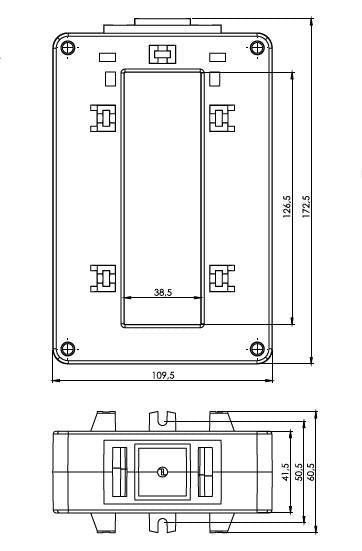

  • Bore Size: 38,5mm x 126,5 mm
  • Rated short time thermal current: Ith = 60 * In
  • Rated continuous thermal current: Id = 1.2*In
  • Ambient temperature -25°C to + 85°C (0-95% relative humidity, non condensing)
  • Rated frequency: 50 Hz ... 60 Hz
  • Over current limiting factor: FS5
  • Rated isolation level: 0.72/3 kV
  • Standards/Approvals: IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN57414, BS3938, BS7626, EN 61869-2



Each instrument current transformer is supplied with its own unique serial number and test report.
