Digital 1 ph Panel Ammeter with Relay Output, High Low Current protection, X/5, 5/5....995/5 measurement range, TENSE
- Regular price
- £41.00
- Regular price
-
- Sale price
- £41.00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Download
- Payment methods
- Warranty

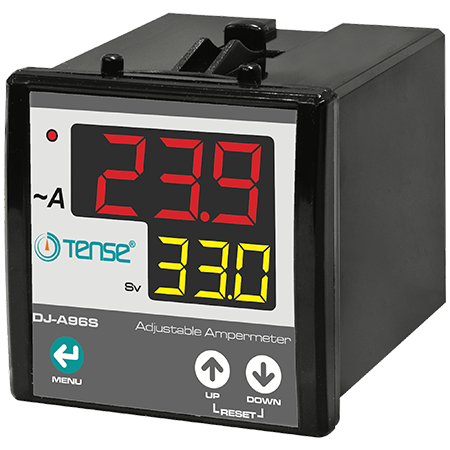

Digital 1 phase panel mount ammeter with NO-NC relay outputs, High / Low current protection, up to 995A range (with CTs), TENSE (Turkey)
This one phase panel mounting Ammeter is designed to control and limit extreme current deviation and protect your equipment of overcurrent caused by unexpected load or any fault in electrical system. In addition, this current meter is calculating maximum average every 15 minutes - so you can get general information about your demand values of connected loads.
Main features
- 5/5A…..995/5A
- High/Low Current Setpoint Adjustable
- High/Low Current Fault Waiting Time Adjustable
- High/Low Current Automatic Reset Time Adjustable
- Inrush Multiplier and Time Adjustable
- Maximum Reset Count for Auto Reset Function Adjustable
- High/Low Current Hysteresis Value Adjustable
- Saves Demand
This panel mounted device combines rigid PC flame retardant housing and bright 3 digits two LED displays for stable installation and clear electrical parameters visualisation.
Ideal for industrial electricians, facility maintenance team, and OEMs. Perfect for integration into control panel, machinery power distribution units and electrical cabinets.
Package Includes:
- 1 Piece 1 Phase Ammeter with relay
Technical Specification:
- Power supply: 150V...240V AC
- Frequency: 50/60 Hz
- Power consumption: <6VA
- Relay output: 5A, 250V AC (Resistive load)
- Working temperature: -20C...+55C
- Panel cut-out: 91x91mm(96S), 67x67mm(72S)
