Digital 3 / three phase Panel Ammeter, 1/4 DIN, 2% precision, X/5, 5/5.....5000/5, DJ-A96T, TENSE

SKU: DJ-A96T

Price including VAT:

Regular price: £28.50
Regular price
Sale price: £28.50
Unit price: per

20 in stock

Product variants

Description
Download
Payment methods
Warranty

Digital 3 phase Panel Ammeter 1/4 DIN, 2% precision, panel mount, X/5, 5/5.....5000/5 measurement range, DJ-A96T, TENSE (Turkey)

This 3 Ph panel ammeter delivers precise data within 0-5000A (via CTs) ranges for accurate current measurement and trend analysis in industrial power systems.

This panel mounted device combines rigid PC flame retardant housing and bright 4 digits LED display for stable installation and clear electrical parameters visualisation.
Ideal for industrial electricians, facility maintenance team, and OEMs. Perfect for integration into control panel, machinery power distribution units and electrical cabinets.

Package Includes:

1 Piece 3 Phase Ammeter

Technical Specification:

Power supply: 140V...270V AC
Current transformer primary side programmable up to 5000 A
Frequency: 50/60 Hz
Power consumption: <4VA
Working temperature: -20C...+55C
Panel cut-out: 91x91mm

Choosing current transformers for the DJ-A96T

Do I need separate CTs?
The DJ-A96T uses X/5 current-transformer inputs, meaning CTs with a 5 A secondary. The listed package contains the ammeter only, so order suitable CTs separately. If you want a meter without external CTs, choose a model specifically rated for direct connection to your circuit.

Which CT ratio should I choose?
The listed CT ratio range is 5/5 to 5000/5, with the primary setting programmable up to 5000 A. Match the CT’s primary rating to your circuit’s design current and expected operating load, then configure the ammeter to match. Check the available settings in the manual, along with the CT’s burden rating, conductor opening and installation requirements.

Examples with stock verified when checked: 300/5 A, Class 0.5s, 1.5 VA, 400/5 A, Class 0.5s, 2.5 VA, and 600/5 A, Class 0.5s, 3.75 VA.

Split-core or solid-core?
Split-core CTs open around a conductor, which can simplify retrofit installation. Solid-core CTs require the conductor to pass through a closed opening. The 250/5 A ONKA split-core CT was also in stock when checked; its listed specification is Class 1, 1 VA, with a 36 mm opening. Split-core construction is not permission to work on live equipment.

What accuracy do I need?
The DJ-A96T has a listed measurement precision of 2%. Choose CTs with the complete measurement chain in mind, including operating current, leads and connected burden. Adding a Class 0.5s CT does not make the complete system Class 0.5s. This is a current-measuring instrument, not an energy or billing meter.

Will it suit my supply and panel?

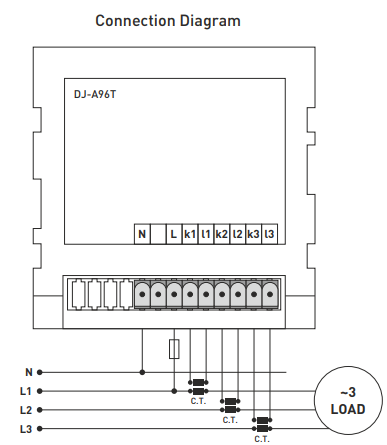

The DJ-A96T is a three-phase panel ammeter with a 91 × 91 mm panel cutout and a listed auxiliary supply of 140–270 V AC, 50/60 Hz. Confirm the supply arrangement, CT quantity and connections against the manufacturer’s wiring diagram before ordering.

Wiring and setup
Refer to the TENSE DJ-A96T manufacturer manual (PDF) for connection diagrams and configuration. Installation and CT selection should be handled by a qualified electrical professional.

Manual

https://cdn.shopify.com/s/files/1/0968/0411/0666/files/doc_en-dj-a96tpdf-products-2019-12-04-fc66b13ab90518db28bae0f86fb888fa-1_1.pdf?v=1768218875
