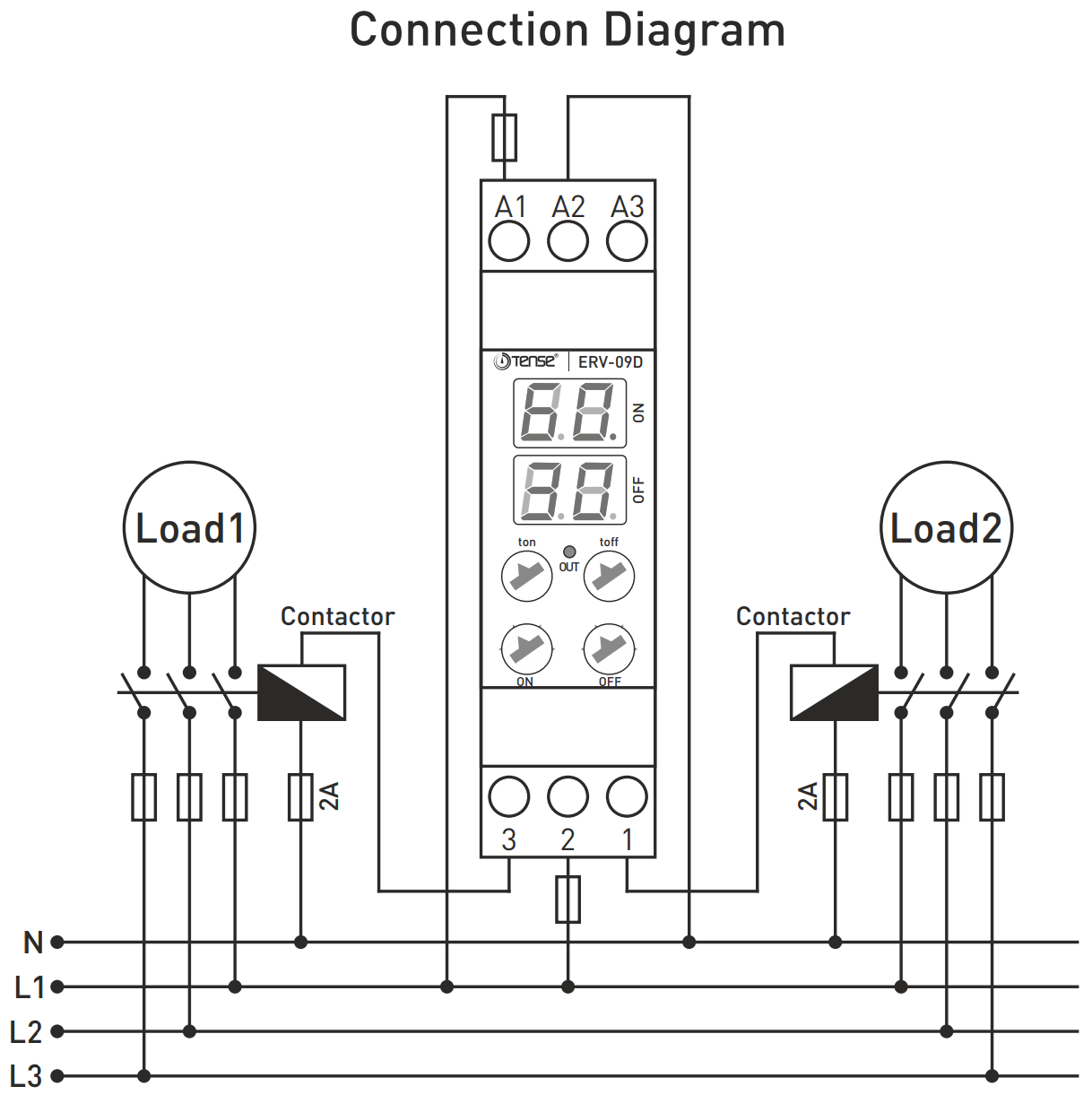

  • Digital Asymmetric / Symmetric Cycle Flasher Timer Relay, DIN rail Mount, SPDT, NO+NC, dual power 12V DC and 100V-240VAC ERV-09D, TENSE connection diagram
  • Technical drawing with dimensions of a mechanical component
  • Digital Asymmetric / Symmetric Cycle Flasher Timer Relay, DIN rail Mount, SPDT, NO+NC, dual power 12V DC and 100V-240VAC ERV-09D, TENSE connection diagram 1
1 5
Vendor: TENSE

Digital Asymmetric / Symmetric Cycle Flasher Timer Relay, DIN rail Mount, SPDT, NO+NC, dual power 12V DC and 100V-240VAC ERV-09D, TENSE

SKU: ERV-09D
£21.00
£21.00
20 in stock
  • Description
  • Download
  • Payment methods
  • Warranty

DIN-rail mount digital asymmetric and symmetric cycle flasher timer relay with dual power 12V DC and 100V-240VAC, 1C/O, SPDT, TENSE (made in Turkey)



Tense ERV-09D is a new digital double adjustable and multifunctional asymmetric / symmetric flasher relay (cyclic timer relay) with two LED displays manufactured by Tense Electronics. It is designed for applications requiring alternating "On" and "Off" time control, such as industrial equipment, ventilation, or lighting systems such as:

  • Regular room or pool ventilation;
  • Advertizing with light or turning parts;
  • Signalling / alarm equipment;
  • Cyclic dehumidification;
  • Signalling / alarm equipment;



Key features:

  • Operating Range: Both "On" (Working) and "Off" (Waiting) times are independently adjustable from 0,1 second up to 99 minutes.
  • Adjustable Stages: Includes four selectable time ranges: 9.9s, 99.9s, 9.9m, and 99.9m.
  • Operating Voltage: Dual supply options are typically available 100-220V AC (A1-A2) and 12V DC (A3-A2).
  • Output: 1 Relay (Changeover contact), rated at 5A / 250V AC.
  • Mounting: DIN rail.

Technical Specification:

  • Power supply: 12V DC (A2-A3), 100V...260V AC (A1-A2);
  • Frequency: 50/60 Hz;
  • Timer settings: 1s ...99.9 m;
  • Power consumption: <6VA;
  • Operating temperature: -20C...+55C ;
  • Mounting: 35mm DIN.
