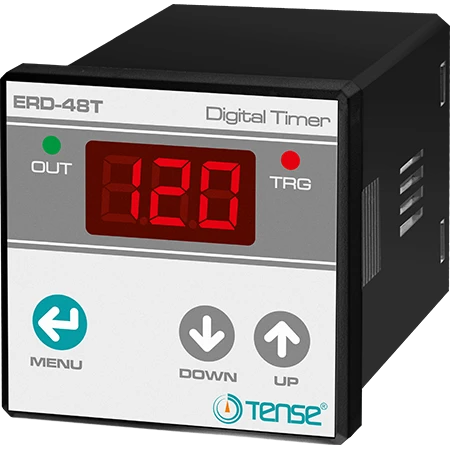

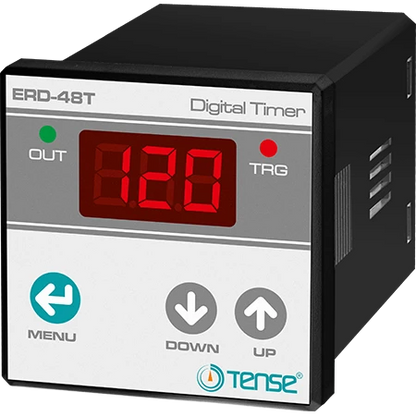

• ERD-48T Digital One Shot ON-Delay OFF-Delay (Impulse) Timer Relay With Trigger input, Panel mount, SPDT, NO+NC, LED Display, TENSE
  • Digital One Shot ON-Delay OFF-Delay (Impulse) Timer Relay With Trigger input, Panel mount, SPDT, NO+NC, LED Display, TENSE
  • ERD-48T Digital One Shot ON-Delay OFF-Delay (Impulse) Timer Relay With Trigger input, Panel mount, SPDT, NO+NC, LED Display, TENSE
  • da5070fdda06ad7923cddfa024a69533
  • 35b4bcb588e62529002f356ff789ecd0
1 5
Vendor: TENSE

Digital One Shot ON-Delay OFF-Delay (Impulse) Timer Relay With Trigger input, Panel mount, SPDT, NO+NC, LED Display, TENSE

SKU: ERD-48T
£22.50
£22.50
Low stock: 5 left
Height x Width: 48 mm x 48 mm (1/16 DIN)
  • Description
  • Download
  • Payment methods
  • Warranty

DIN rail mount digital "One Shot" or so called ON-Delay / OFF-Delay (Impulse) timer relay with trigger input and LED display , NO+NC, TENSE (Made in Turkey)

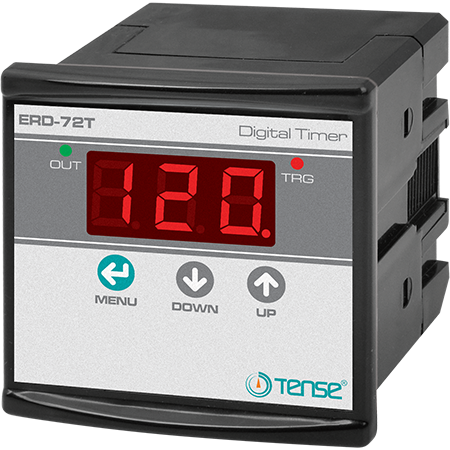

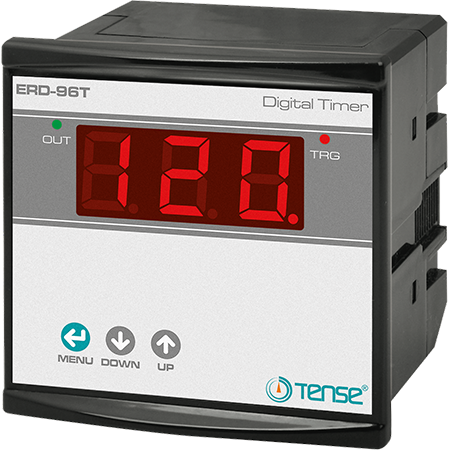

The Tense ERD-XXT series is a digital time relay designed for precision time-dependent control in industrial and automation systems. It is manufactured by Tense Electronics, a Turkish company specializing in smart power infrastructure and electrical protection devices.



Key Functions & Operation

The ERD-XXT is highly versatile, combining two primary modes in a single unit:

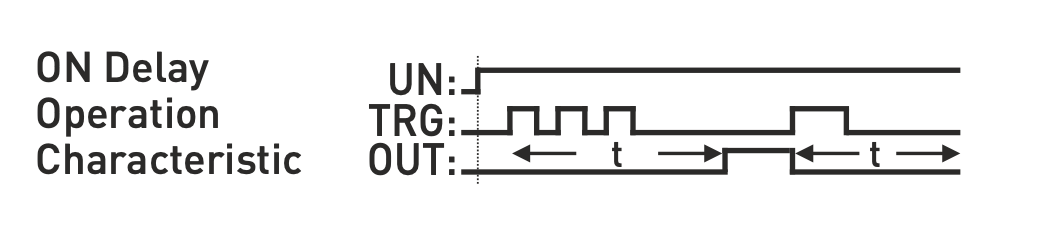

  • ON Delay: Delays the switching on of a device after a trigger is received;

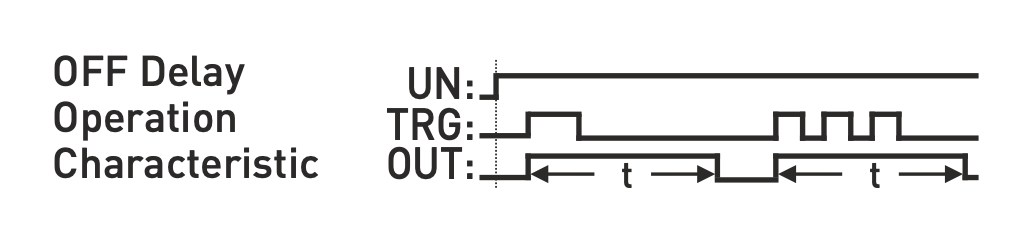

  • One Shot Leading Edge / OFF Delay / Impulse mode: Switching ON when impulse received on Trigger input and delays the switching OFF of a device once the trigger is removed;
  • Trigger Input: The timing sequence is initiated via a dedicated trigger (TR) input (24-240V).


Technical Specification:

  • Power supply: 24V AC/DC (A2-A3), 160-240V AC (A1-A2);
  • Frequency: 50/60 Hz;
  • Timer settings: 0,1s ...999 m;
  • Power consumption: <6VA;
  • Operating temperature: -20C...+55C ;
  • Panel cut-out: 91x91mm(96), 68x68mm(72), 45x45mm(48).
