Simple and Compact DIN rail Mount Controller for Submersible 1 ph Pump for deep well and tank water levels, MDK-24, TENSE
Price including VAT:
- Regular price
- £29.00
- Regular price
-
- Sale price
- £29.00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Download
- Payment methods
- Warranty
Simple DIN rail mount controller for submersible 1 phase pump , for deep well and tank water levels, MDK-24, TENSE

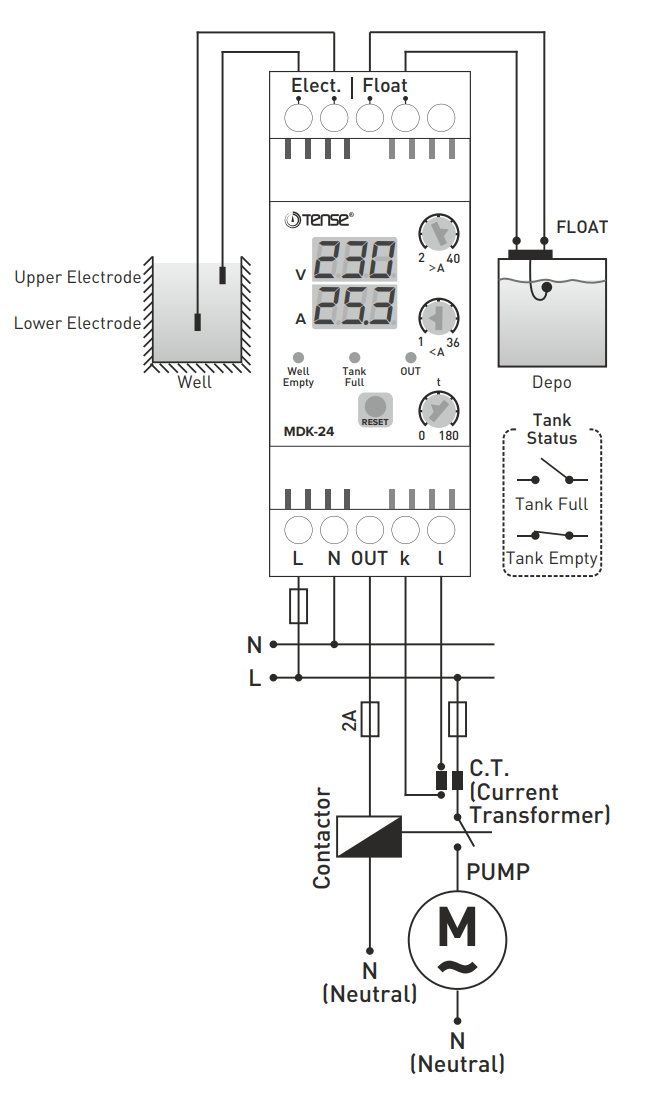

TENSE water level / submersible pump controller MDK-24 is designed to control process of proper work for a well-pump-tank combination. It offers a wide variety of functions, such as dry run protection, high/low voltage protection, high/low current protection and other features listed below.
Main features
- 2A – 40A current Pump via CT (included into scope of delivery)
- Dry-Running Protection: Monitors liquid levels via connected electrodes or floats to shut off the pump instantly if water runs out
- High/Low Voltage Protection
- High/Low Current Protection
- Voltage Asymmetry Protection
- Error Waiting Time (Fixed)
- Auto Reset Time (Adjustable for low current, fixed for voltages)
- Upper Electrode Waiting Time
- Fuse Current Protection
- Electrodes and Floater can be Connected
- Electrode Life Extender: Runs on a processor-controlled algorithm that limits electrode degradation over long-term fluid contact
