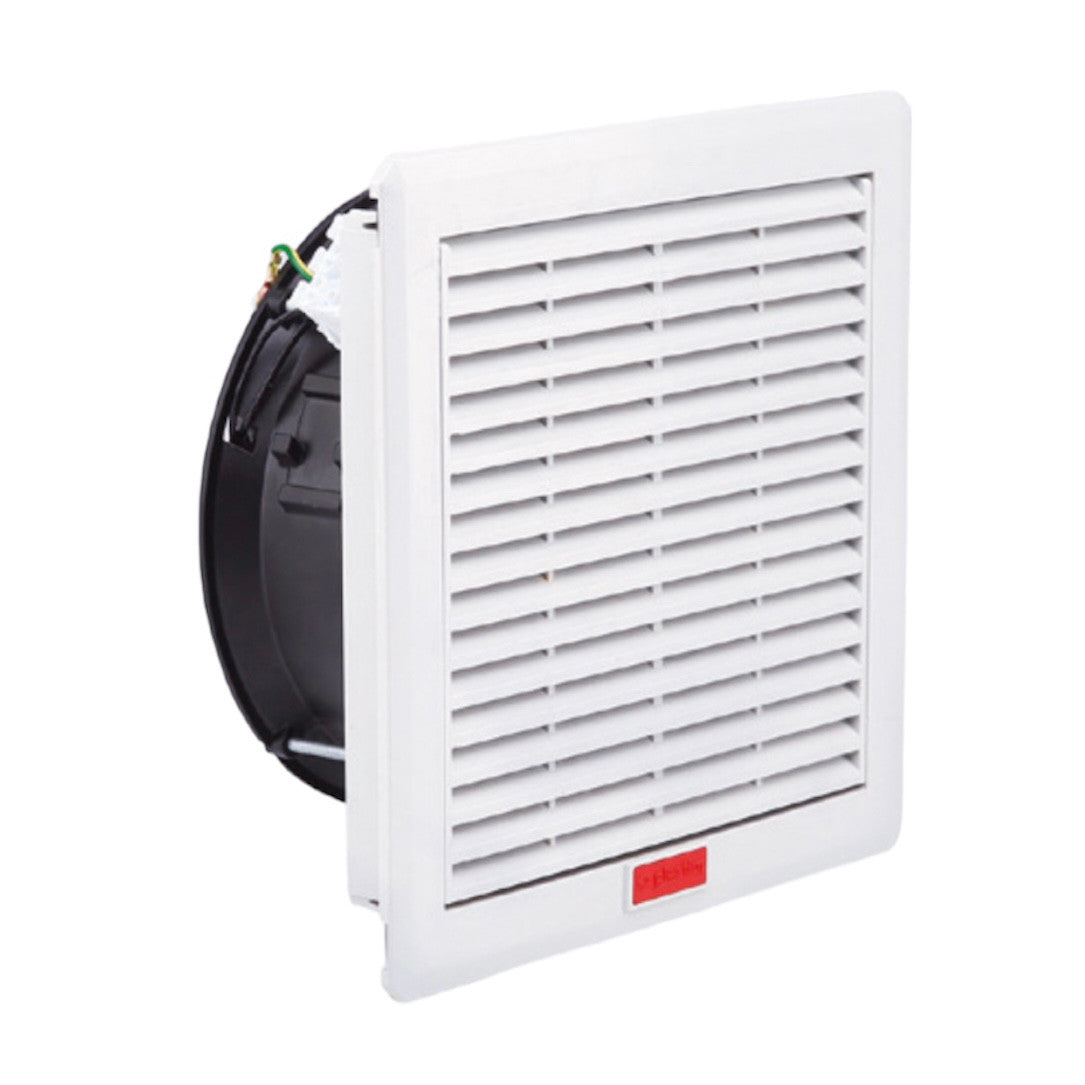

Ventilation grille with fan and filter, size 210x210 mm, for installation in electrical panel, automation cabinet, ATM or gaming terminal. PTF3000, manufacturer Plastim (Türkiye)
Used for outdoor air intake for electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, petrol stations. Usually installed in side walls of boxes to maintain IP.
The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
- External dimensions: 210x210x92 mm
- Installation size: 175x175mm
- Volume flow rate: 125 (175) m3/h
- Noise level: 52 (53) dB(A)
- Bearing: Ball bearing
- Operating Voltage: 220-230VAC, 50/60Hz
- Current consumption: 0.23(0.22) A
- Power rating: 37 (35) W
- Electrical connection: 3-pole terminal
- Direction of flow: Outside to inside (can be changed)
- Operating temperature: -10/+70 °C
- Degree of protection: IP54
- Plastic material: UL94 V0 ABS Flame retardant
- Seal: Polyurethane seal
- Colour: RAL 7035 (RAL 7032 on request)
- Weight: 1.45 kg
- Installation: Fast Clip-on
To provide automatic air exchange and temperature maintenance with this fan you will need either a simple bimetal thermostat or a more complex temperature controller, both devices can be purchased from our website.
