Fan with filter + scrubber clamp, 30 (41) m3/h, 120x120, 230V 50/60Hz IP54 PTF1000T Plastim
- Regular price
- £29.59
- Regular price
-
- Sale price
- £29.59
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Download
- Payment methods
- Warranty

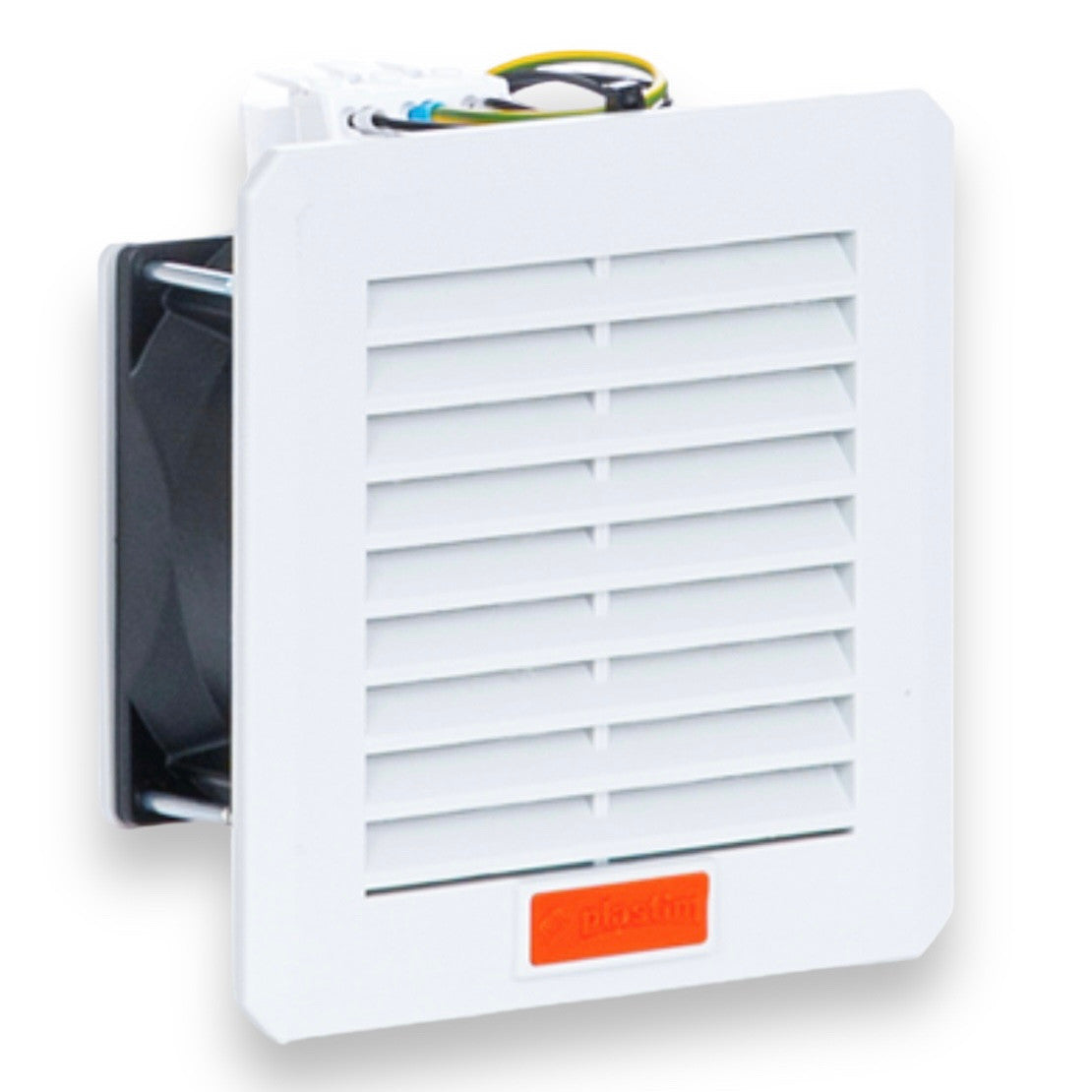

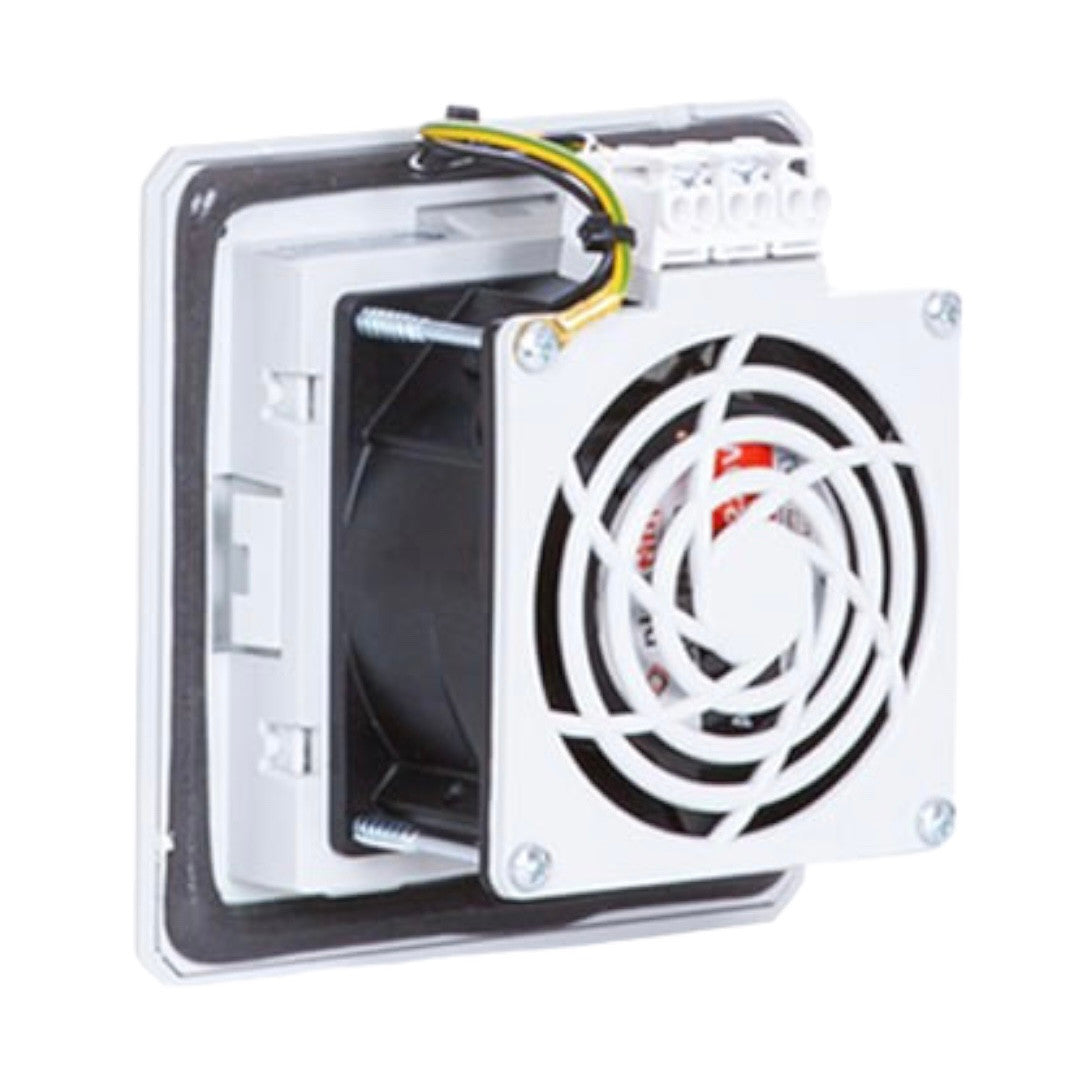

Ventilation grille with fan and filter, size 120x120 mm, for installation in electrical panel, automation cabinet, ATM or gaming terminal. PTF1000T, manufacturer Plastim (Türkiye)
Used for outdoor air intake for electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed in side walls of boxes to maintain IP.
- External dimensions: 210x210x58,5 mm
- Installation size: 92x92mm
- Volume flow rate: 30 (41) m3/h
- Noise level: 28 (31) dB(A)
- Bearing: Sleeve type bearing
- Operating Voltage: 220-230VAC, 50/60Hz
- Current consumption: 0.08(0.07) A
- Rated power: 14 (13) W
- Electrical connection: 3-pole 2.5 mm2 terminal
- Direction of flow: Outside to inside (can be changed)
- Operating temperature: -10/+70 °C
- Degree of protection: IP54
- Plastic material: UL94 V0 ABS Flame retardant
- Seal: Self-adhesive
- Colour: RAL 7035 (RAL 7032 on request)
- Weight: 0.4 kg
- Installation: Fast Clip-on
To provide automatic air exchange and temperature maintenance with this fan you will need either a simple bimetal thermostat or a more complex temperature controller, both devices can be purchased from our website.
