Vendor: MUCCO

Five-storey signal column with surface mounting and 10cm pipe

SKU: SNT-7013-F5-10U
£96.23
£96.23
Out of stock
Operating voltage: 12-24V AC/DC
  • Description
  • Payment methods
  • Warranty

Five-storey signal post with surface mounting and 10cm tube, 12-24, 40-250V AC/DC, SNT-7013 / SNT-7022, manufacturer MUCCO (Turkey)


Buzzer options No

Beacon type Flashing

TECHNICAL DATA

  • Category.
  • Current:

12~24V AC/DC: 174mA ±10%

40~250V AC/DC: 35mA ±10% 50-60 Hz

  • Body Material: Material: ABS (body) + polycarbonate (lens)
  • Lens Colors: (customizable colors): Red, Green, Yellow, Blue, White (customizable colors)

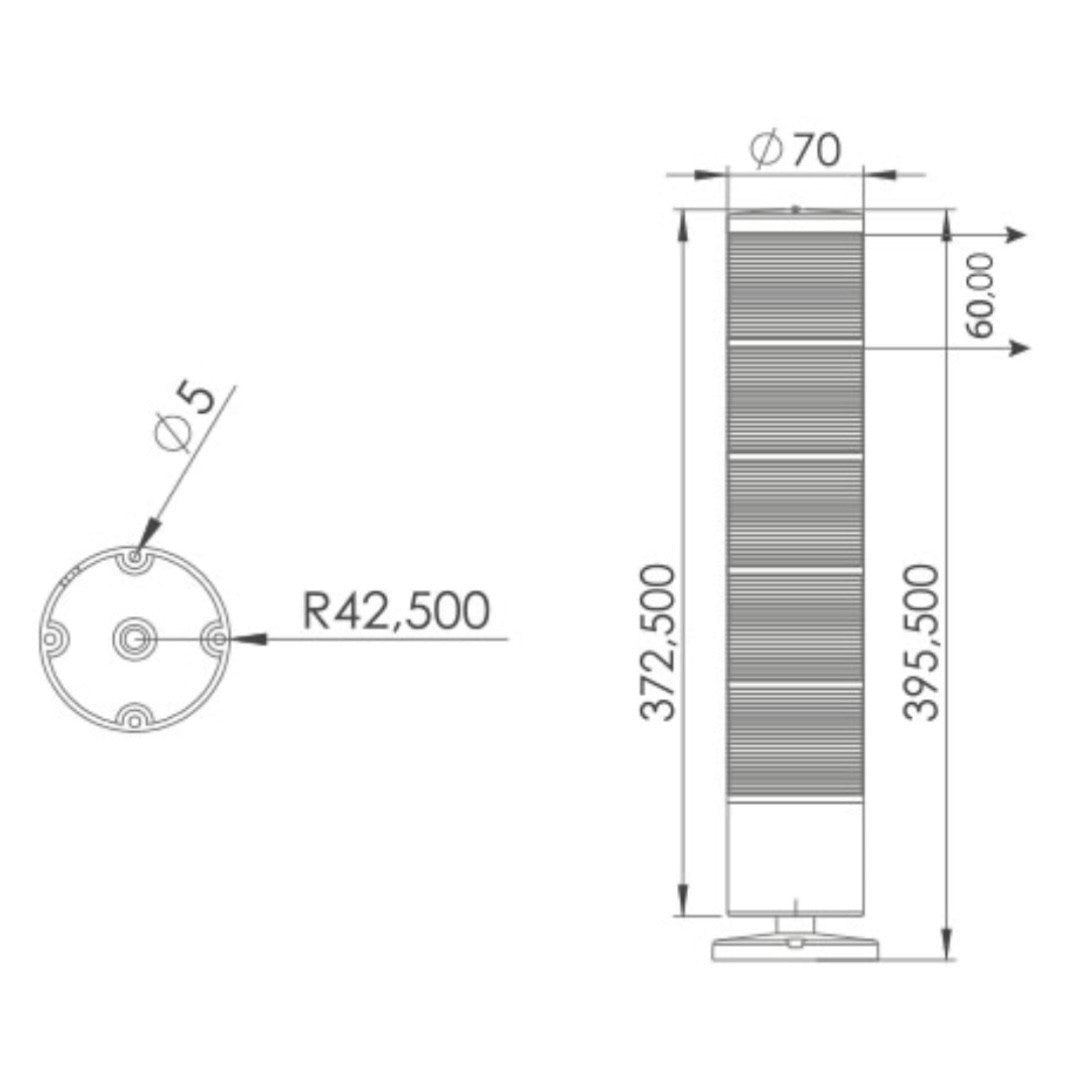

  • Lens diameter: ø70 mm
  • Light source: LIGHT SOURCE: LED SMD
  • Light mode: Steady, flashing, strobe, rotating.
  • Input response time: on/off: max. 10 ms
  • Tone: (wired control): Tone: 1 tone
  • Alarm: 103~116 dB at 1 m (3.3 ft)
  • Connection: wired connection:
  • Mounting Type: Folding base and options with external tube
  • Operating Conditions: -20°C to +50°C (-4°F to +122°F)
  • Life Expectancy: Additional issues may need to be noted if necessary. 50,000 hours
  • Degree of protection: IP65
  • Water, dust, heat and UV resistance.
  • ISO-9001, CE, RoHS2 and EAC
