Vendor: TENSE

Modbus interface converter RS485 to RS232 to PC via USB

SKU: USB-CON
£40.07
£40.07
Out of stock
  • Description
  • Download
  • Payment methods
  • Warranty

RS485/RS232 to USB protocol converter. Protocol converter/gateway for connecting devices with RS (MODBUS) port to a computer via USB port (sb connector). USB-CON. TENSE Turkey

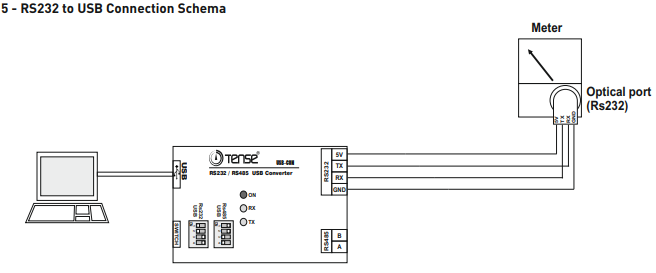

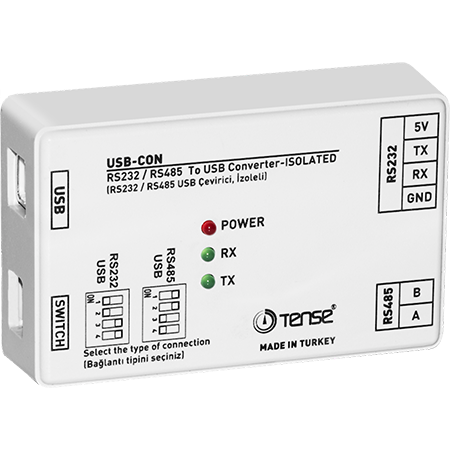

The USB-CON protocol converter manufactured by TENSE Turkey is a compact gateway for connecting any device with RS485/RS232 (MODBUS) port to a computer via USB port. You can connect devices such as power meters, multimeters, network analyzers and other devices.

The RS485/RS232/USB gateway does not require a separate power supply (the converter is powered via the USB port) and has the following parameters:

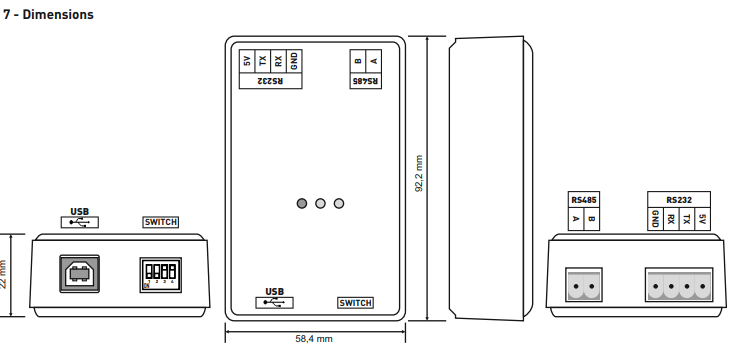

small size of the protocol converter - 9 cm x 6 cm x 3 cm;

fast connection via terminal blocks;

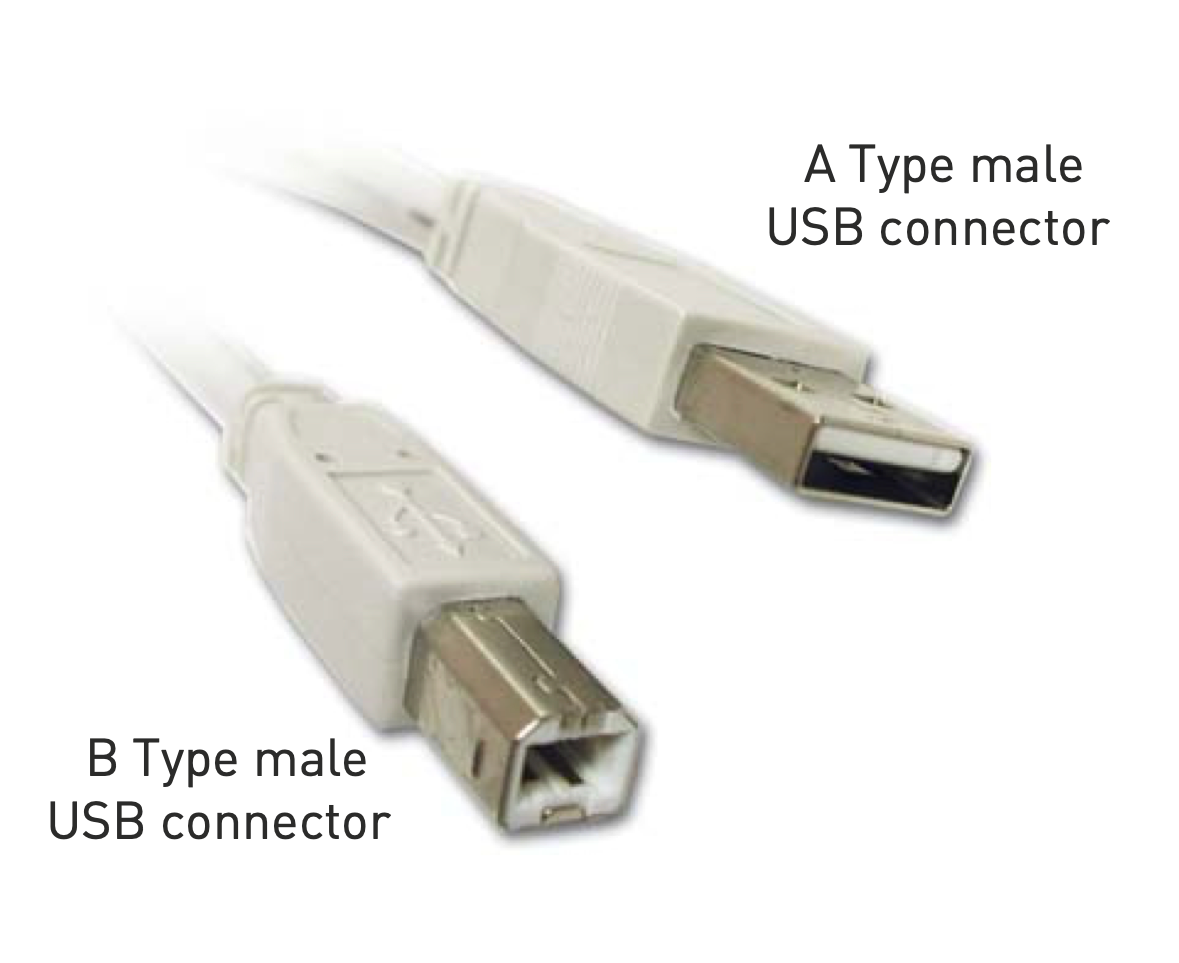

the converter kit includes a USB cable (1.2 m);

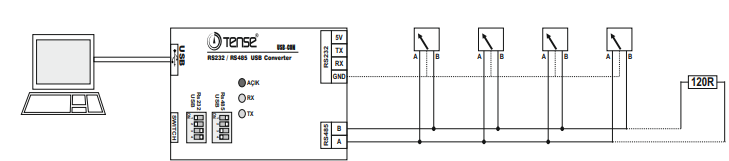

connection to 256 devices with RS485/ModBus;

light indication of power/data exchange;

high data exchange rate - up to 203400 bit/s;

galvanically isolated outputs/inputs

Wide operating temperature range: -20°C...+55°C (in most cases does not require additional heating or cooling);

free software for gateway configuration.

Online card / PayPal payment - after completing the order, you will be redirected to the payment gateway, payment confirmation will be sent to your email.

Bank deposit- you will transfers money from you bank account into our bank account to complete your purchase. You will receive an invoice to your email no later than the next working day.

We warrant that on delivery, and for a period of 12 months from the date of delivery any products which are goods shall:

  • conform in all material respects with their description and any relevant specification;
  • be free from material defects in design, material and workmanship;
  • be of satisfactory quality
  • In the event of any goods being materially defective, we will replace or repair the product or refund the purchase price.

These warranties shall not apply to any defect which arises from improper use, failure to follow the product instructions, or any repair or modification made without our consent.
