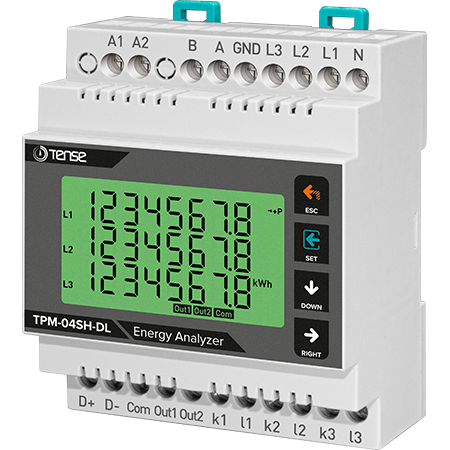

3-phase network analyzer / Network analyzer / Network analyzer - multifunction digital panel meter, current, voltage, frequency and total power indicator, with relay output, RS485 ModBus RTU - TPM-04SHDL manufacturer TENSE (Turkey) panel meters.

Power analyzers are designed to measure and monitor electrical values. Thanks to the communication function, the measured energy values can be monitored and reported independently. Analyses such as power quality, efficiency and unit cost calculation can be performed using the power analyzers.

Main advantages:

• RS485 Modbus RTU (1200-19200b/s)
• Three-phase voltage transformer and three-phase current transformer.

• It displays the harmonic components of voltage and current up to the 31st harmonic.

• Displays active power per phase (P)

• Displays reactive power per phase (Q, inductive and capacitive)

• Displays apparent power in phase (S)

• Displays the Cosφ and power factor values of each phase.

• Displays voltage (V) and current (I) values between phases and neutral phases and measures frequency.

• Displays total active energy import and export values (ΣkWh)

• Displays total inductive and capacitive reactive energy values (ΣkVArh).

• Displays minimum and maximum values, max. demand

• 2 relay outputs, 1 digital input

• Event logs (high/low voltage/current, voltage/current asymmetry, THD-I)

• Menu is password protected.

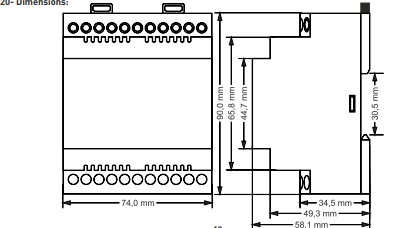

Usually this network analyzer is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. If you are going to connect the analyzer to the ModBus, we will send you a "Registration Table" with ModBus addresses on request.
