Vendor: TENSE

ON Delay, DIN Rail Mount Timer Relay, 12→240V AC/DC, NO+NC Output, SPDT, Single Function, ERV-08M, TENSE

SKU: ERV-08M
£16.00
£16.00
50 in stock
  • Description
  • Download
  • Payment methods
  • Warranty

ON Delay, DIN-rail mounting time relay, multi voltage AC/DC, NO-NC output, ERV-08M, TENSE (Turkey)

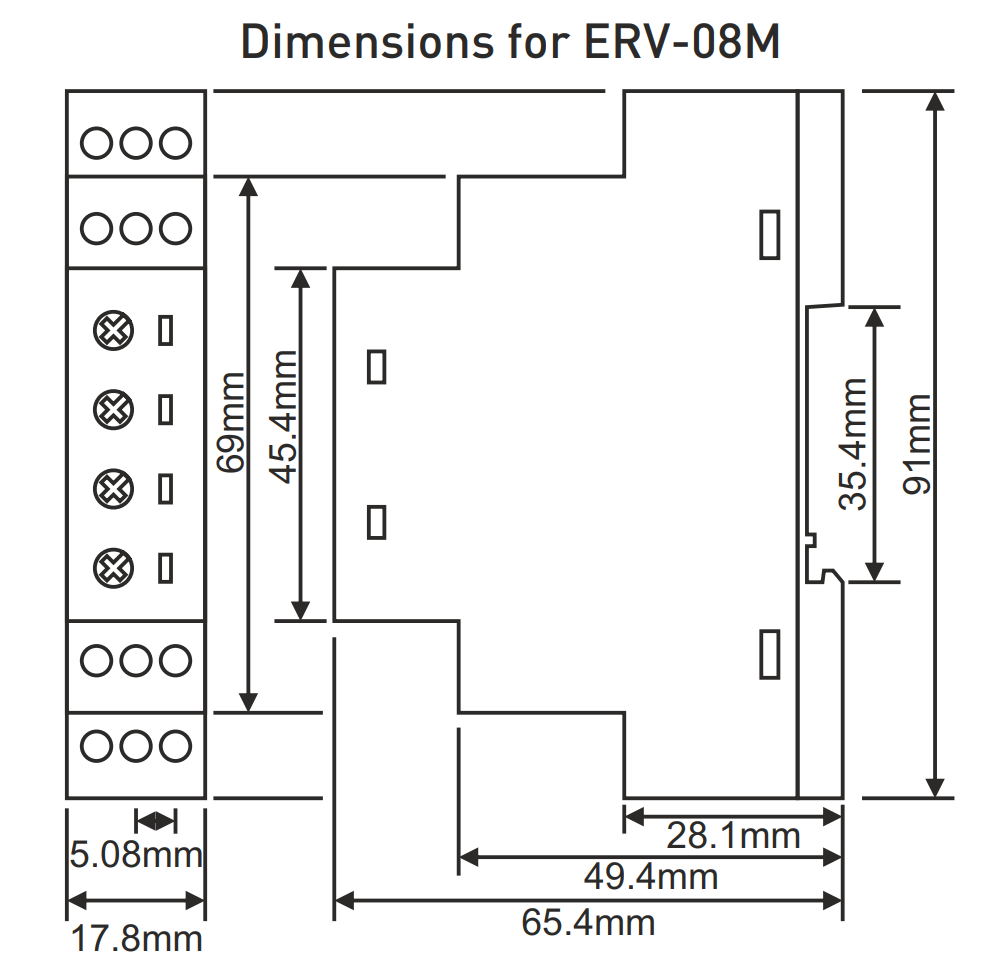

TENSE ERV-08M timer relay is designed for domestic, commercial and industrial applications. Wide range of ON delay time settings - from 1 second up 100 hours,  multi voltage operating range of 12-240V AC/DC, compact design (only 17,8 mm width), 5A resistive load NO+NC relay make possible to use this timer for switching different loads in steps to prevent current surges or to synchronise switching of several devices if it is needed.

The ON delay relay is used for electric boilers, furnaces, heaters, woodworking machines, conveyors, loaders, motors, fans, lights etc.

Technical Specification:

  • Power supply: 12-240V AC/DC;
  • Frequency: 50/60 Hz;
  • Timer settings: 0s.....100 hours;
  • Power consumption: <4VA;
  • Operating temperature: -20C...+55C ;
  • Mounting: 35mm DIN.
