0-1, IP65, 2 position rotary cam switch OFF-ON / 0-1, 3 poles, in plastic enclosure / box,YKT301, OPAS

Rotary cam switch ON-OFF / 0 - 1  , 3 poles, 16A 25A 32A 40A 50A 63A 80A 100A 115A 125A, YKT301, OPAŞ (Turkey)

OPAŞ rotary cam switches are specialized electrical devices designed to control multiple circuits through a single switch mechanism. They operate by rotating a shaft that engages various contacts, allowing the user to make or break connections between different electrical circuits. This functionality enables precise control over complex electrical systems, making rotary cam switches essential in various applications, from industrial machinery to household appliances.

Reliable OPAS rotary cam switches are being produced since 1982 and developed according to the standards EN6097-3, EIC and CE and designed for harsh industrial environments and use special materials for contacts (AR-GE) and terminals (screws and bolts are nickel-coated) are fully comply with EN60947-3 for a long mechanical and electric lifespan.

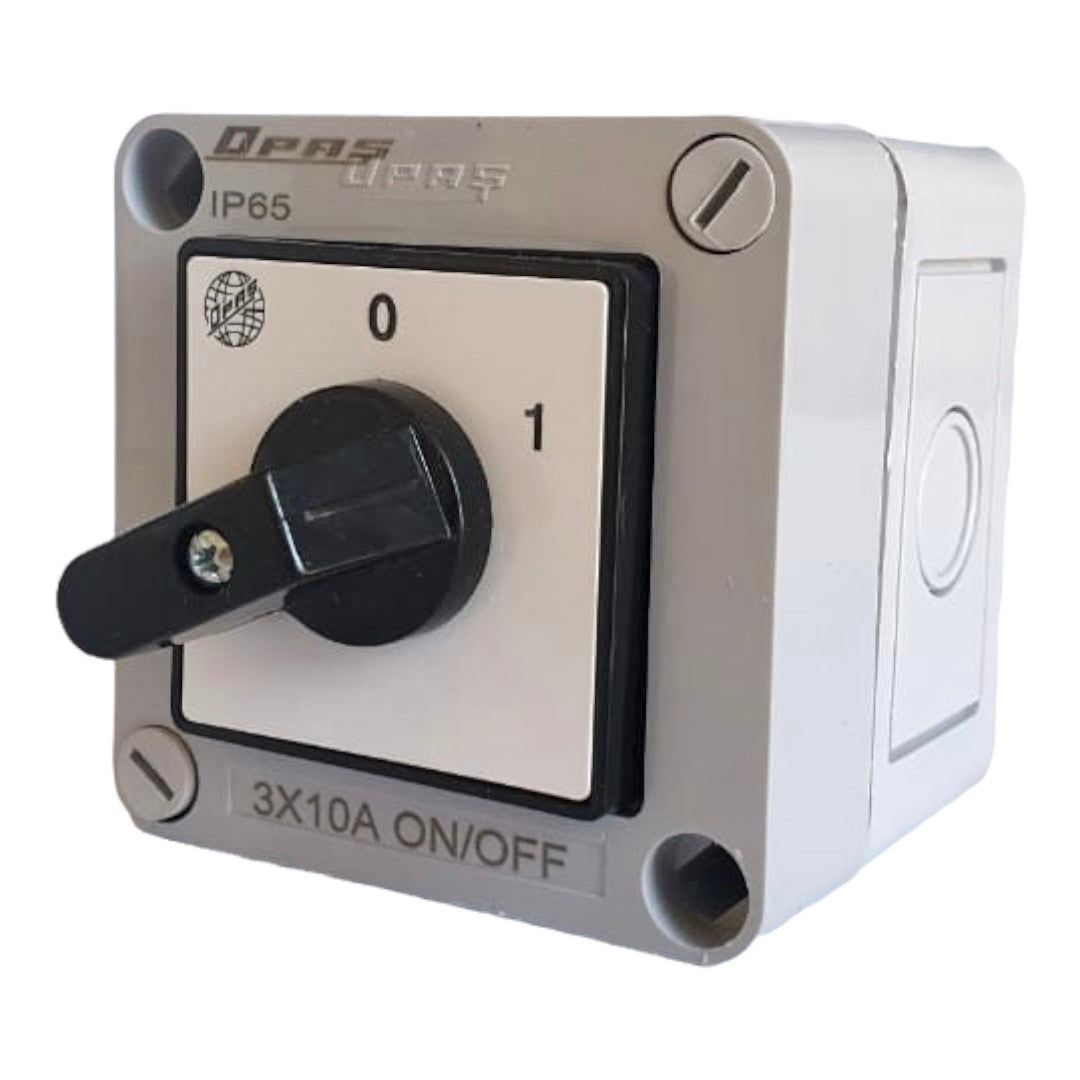

YKT301  OPAŞ is IP65, two-position rotary cam switches is universal device to be used when you need to connect/disconnect two electrical circuits both indoor and outdoor. Two positions - one "OFF"/"0", one "ON"/"1", switching between - by rotary handle.

Technical specifications:

• Type of switch: ON-OFF Switch with IP65 enclosure

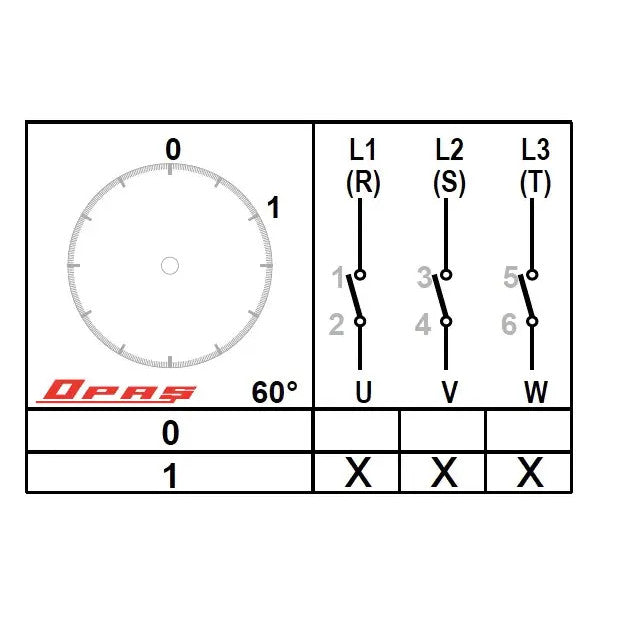

• Switching scheme: 0-1 (Off-On)
• Number of poles: 3
• Contacts rating (AC23): 16A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 115A, 125A
• Type: Built-in
• Degree of protection against dust and water: IP65
• Number of operating positions: 2
• Operation life (Mechanical cycles): 500000 (32A and up) / 750000 (up to 25A)
• Operation life (Electrical cycles): 50000
• Switching per hour: 600
• Ui: 660V
• Ue: 230V / 400V
• Frequency: 50 ... 60 Hz
• Body heat-resistant: up to 1200 °C
• Medium operating temperature range: -20 to +60 °C
• Standards: EN6097-3, EN60947-3, EIC, CE
• Manufacturer: OPAŞ
• Country of origin: Turkey
