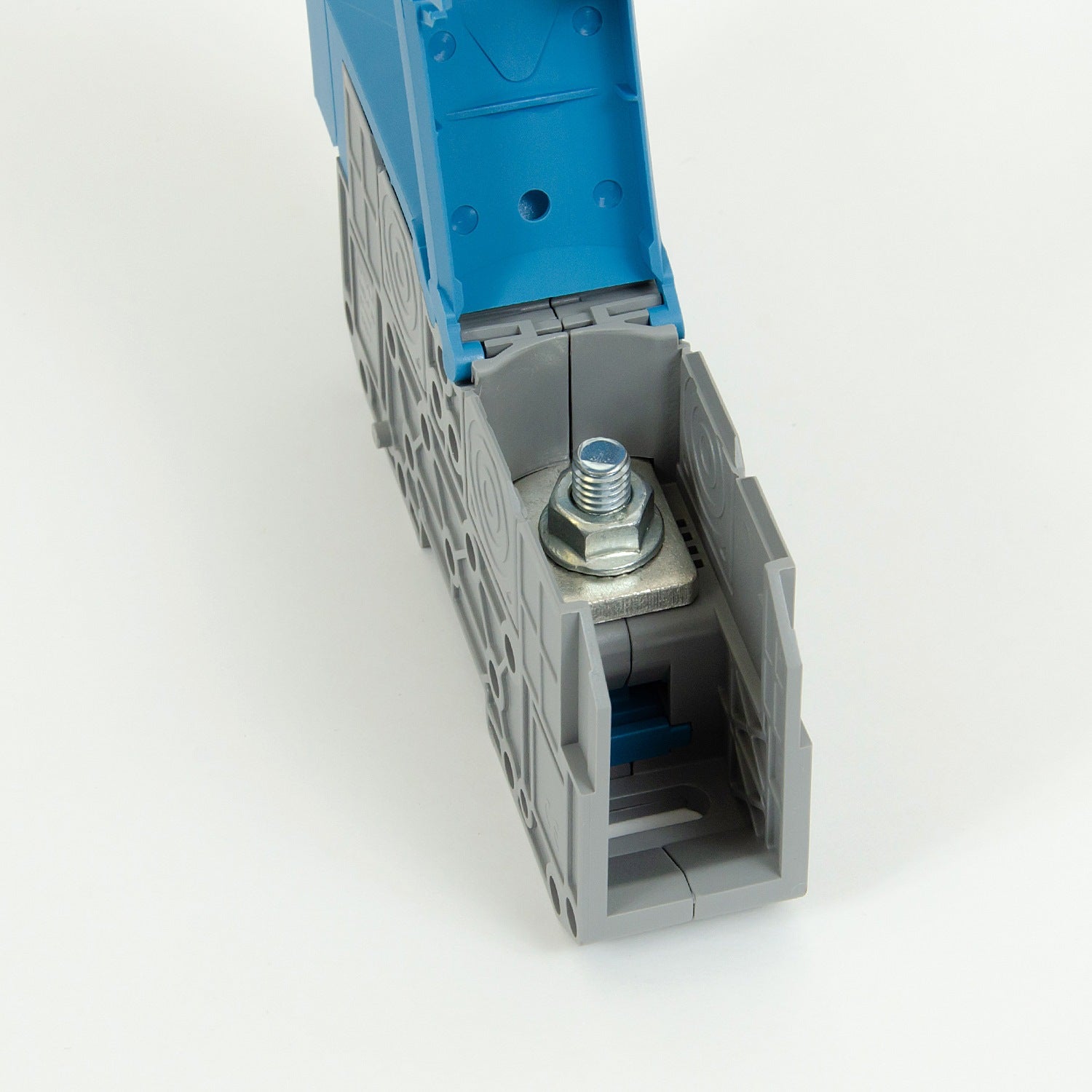

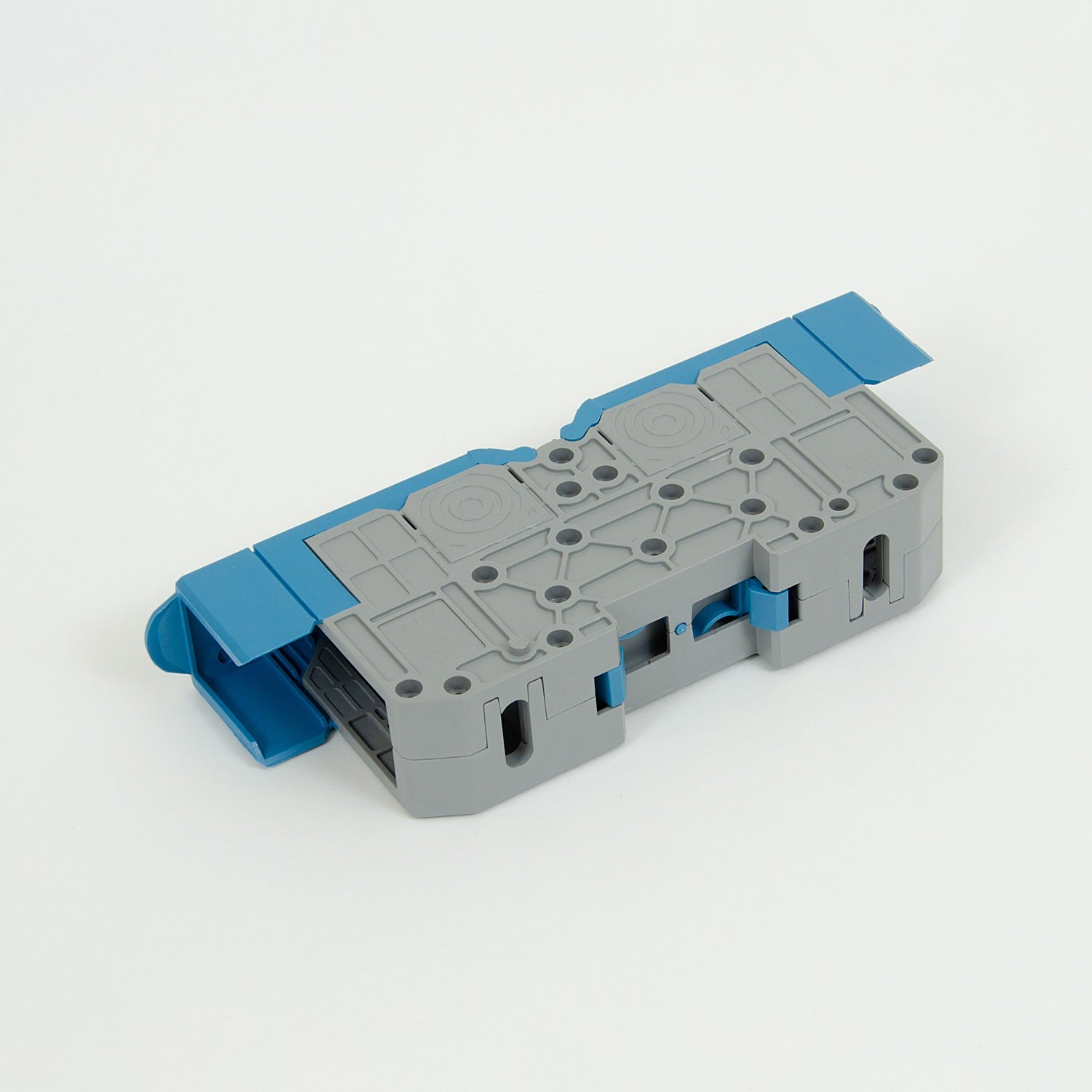

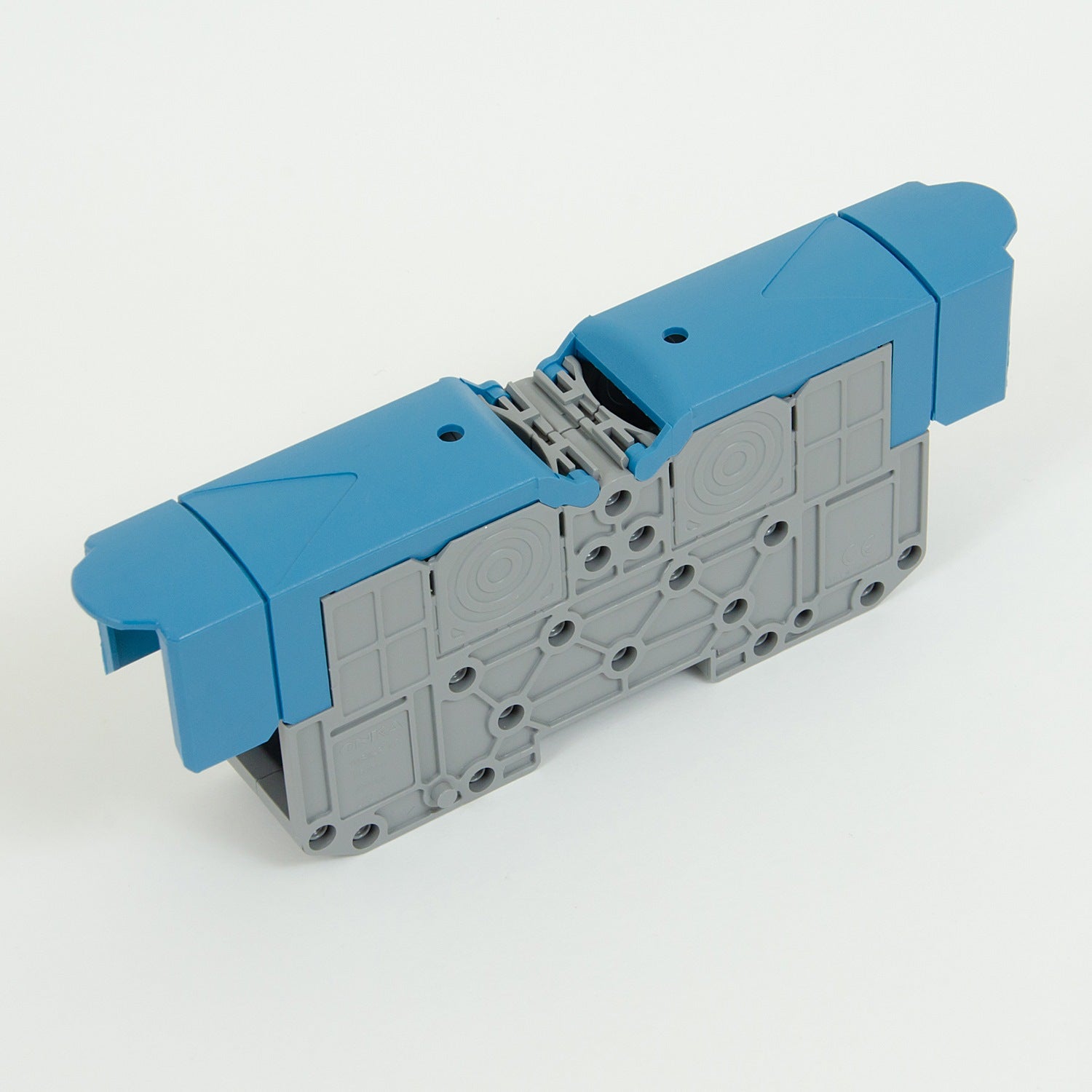

ONKA 95mm2 STUD terminal for M8 cable lugs, DIN rail mount with protective cover, blue, BR-1030062
- Regular price
- £28.74
- Regular price
-
- Sale price
- £28.74
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
STUD terminal for M8 cable lugs, up to 95mm2, with cover, blue, ONKA, made in Turkey
Designed to snap onto standard DIN rails, screw clamp type terminals offer an easy and secure way to connect electrical conductors in control panels, distribution boards, and industrial automation systems. These terminal blocks cut wiring time and minimize possible maintenance.
ONKA's compact installation rail couplers provide great possibilities for connecting any wire of different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. The original ONKA quick couplers are a convenience in installation and 100% connection reliability.
Technical parameters
Cross section of the connected single wire up to: 95mm2
Colour: blue
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 Steel/Copper
Connection position: lateral / lateral
Rated voltage: 1000V
Rated current: 232A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
