Vendor: ONKA
250/5A CT Current transformer - ONKA, Cl 0.5s, 30 mm bore, 2.5VA TK302505303 / BR-80011764
SKU:
BR-80011764
Price including VAT:
- Regular price
- £14.99
- Regular price
-
- Sale price
- £14.99
- Unit price
- per
30 in stock
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty

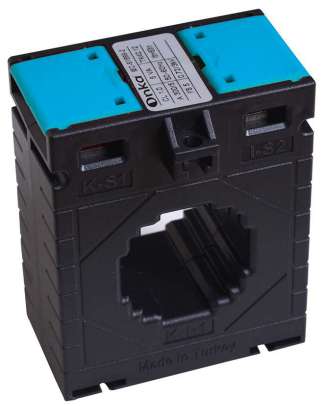

ONKA 250/5 instrument measurement current transformer with rated output 2.5 VA, accuracy class 0.5s, sealable cover, 30 mm bore. Panel/cable/busbar mount adapter included.
A compact, moulded-case current transformer for primary currents up to 250A, with built-in sealable terminal covers. It transforms primary AC currents into a standard 5A secondary current and accepts cables up to Ø30 mm., busbar 11mm x 31 mm, 21mm x 26mm.
Technical specifications:
- Current ratio 250/5A
- Burden: 2,5VA
- Accuracy Class: 0,5s
- Mount Type: Panel, cable, busbar

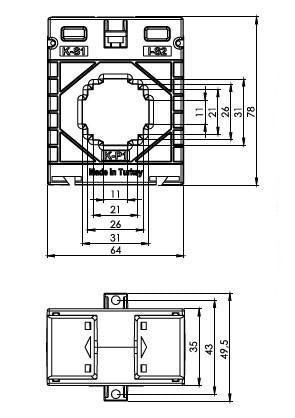

- Bore Size: Ø 30 mm, 11mm x 31 mm, 21mm x 26mm
- Rated short time thermal current: Ith = 60 * In
- Rated continuous thermal current: Id = 1.2*In
-
Ambient temperature -25°C to + 85°C (0-95% relative humidity, non condensing)
- Rated frequency: 50 Hz ... 60 Hz
- Over current limiting factor: FS5
- Rated isolation level: 0.72/3 kV
- Standards/Approvals: IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN57414, BS3938, BS7626, EN 61869-2
