1/8 DIN Panel Mount Digital Asymmetric / Symmetric Cyclic Flasher Timer Relay, 150V-270VAC, NO+NC, SPDT, TENSE
- Regular price
- £38.00
- Regular price
-
- Sale price
- £38.00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Download
- Payment methods
- Warranty

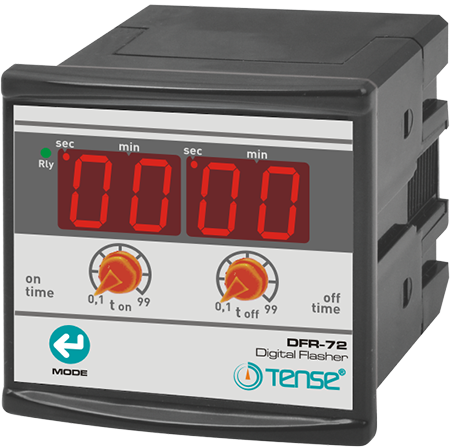

Panel mount 1/8 DIN digital asymmetric and symmetric cycle flasher timer relay 150V-270VAC, 1C/O, NO+NC, SPDT, TENSE (made in Turkey)
Tense DFR-72 is a new digital double adjustable and multifunctional asymmetric / symmetric flasher relay (cyclic timer relay) with two LED displays manufactured by Tense Electronics. It is designed for applications requiring alternating "On" and "Off" time control, such as industrial equipment, ventilation, or lighting systems such as:
- Regular room or pool ventilation;
- Advertizing with light or turning parts;
- Signalling / alarm equipment;
- Cyclic dehumidification;
- Signalling / alarm equipment;
Key features:
- Operating Range: Both "On" (Working) and "Off" (Waiting) times are independently adjustable from 1 second up to 99 minutes.

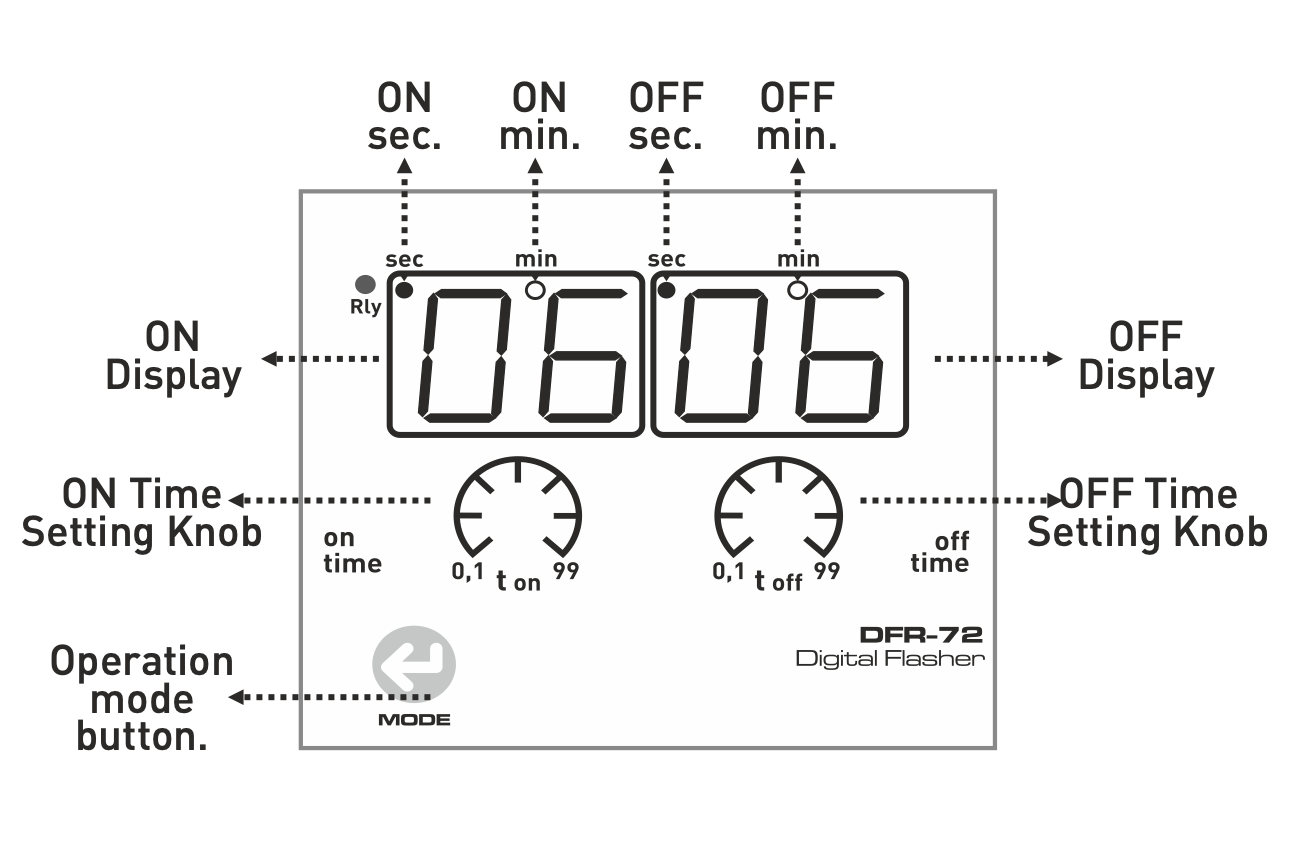

- Analogue knob time settings with display indication
- Wide Operating Voltage: 150-270V AC.
- Output: 1 Relay (Changeover contact), rated at 5A / 250V AC.
Technical Specification:
- Power supply: 150V...270V AC;
- Frequency: 50/60 Hz;
- Timer settings: 1s ...99.9 m;
- Power consumption: <4VA;
- Operating temperature: -20C...+55C ;

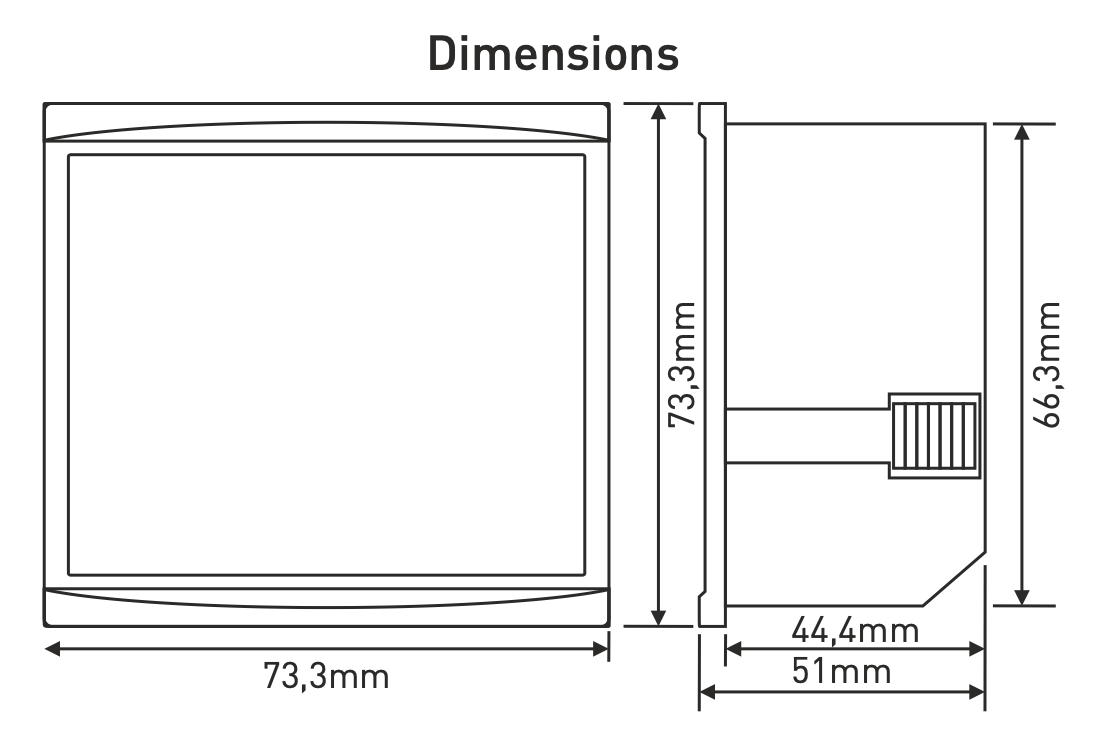

- Panel cut-out: 68mm x 68mm.
