PHG02 Hygrostat setting range 10-90 %RH, Plastim
- Regular price
- £57.02
- Regular price
-
- Sale price
- £57.02
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty

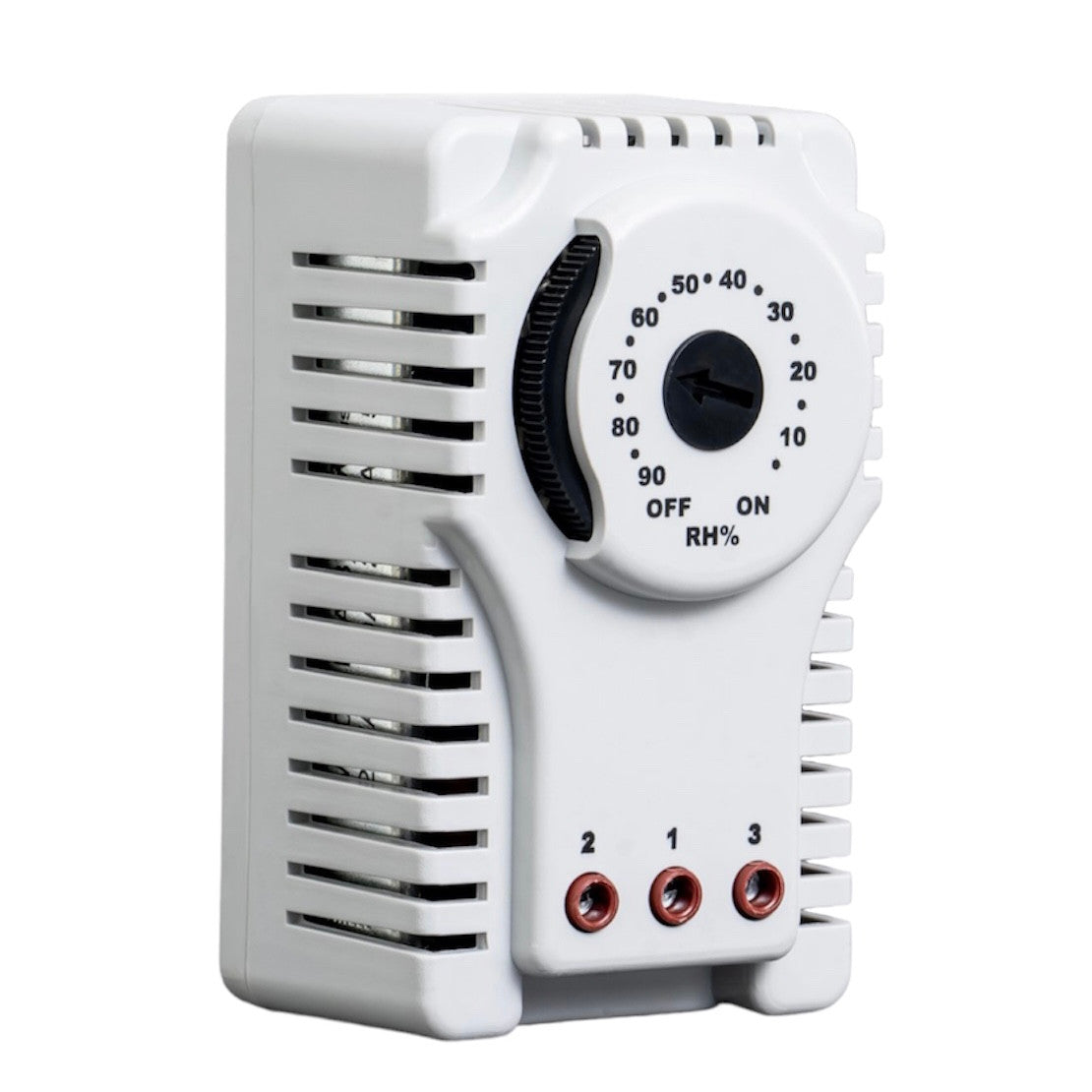

PLASTIM PHG02 hygrostat 110-250VAC (10A-5A current load), 10 - 90%RH, screw terminals IP20
This hygrostat (mechanical relay for humidity level control or hygrometer or hygrostat ) can be used for both processes - for humidity reduction and for humidity increase. For this purpose, the device is equipped with a switching contact that allows the use of this hygrostat for any humidity control task.
This humidity level control relay is designed to be installed in electrical or automation panels, ATMs, payment terminals, gaming machines or other volumes to control humidity levels and turn on the corresponding heating or drying devices.
Manufacturer's code |
Unit |
PHG02 |
Voltage |
V AC |
110-250 |
Setting range |
% RH |
10-90 |
Color potentiometer |
- |
Black |
Current |
A |
(10-5) |
Hysteresis |
- |
%5 - %10 |
Sensor type |
- |
Polyamide ribbon |
Electrical connection |
- |
3-pole terminal |
Wire size |
- |
0.75 mm² - 4.0 mm² |
Operating temperature |
°C |
+10/+60 |
Storage temperature |
°C |
+10/+60 |
Degree of protection |
- |
IP20 |
Body colour |
- |
RAL7035 |
Installation |
- |
DIN rail 35mm |
Dimensions |
mm |
94x54x56 |
Weight |
g |
180 |
