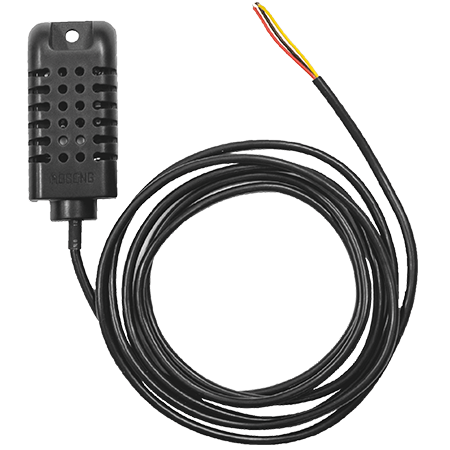

Probe for measuring temperature and humidity

Relay for temperature and humidity control. Humidity and temperature controller with separate outputs and hysteresis, dimensions 72x36x100 mm, flush mounting. HT-310 TENSE.

Main characteristics:

Type of sensor used for humidity and temperature controller - one common - NT-310;

Measured temperature range: -19,9 °C..+80,0 °C; measurement step 1 °C;

Humidity measurement range: 5%....95%; measurement step 1%;

Control principle - ON-OFF;

2 groups of output contacts: switching control contact "°C OUT", 2A resistive load for temperature and normally disconnected "%RH OUT" 2A resistive load for humidity

2 operating modes of temperature control "Cooling" and "Heating" ("COOLING" and "HEATING")

2 operating modes of humidity control "Dehumidification" "Humidification";

Separate setting of hysteresis parameters for temperature and humidity control; Choice between absolute, relative temperature or sensor error for ALARM contact

Option to set the ON/OFF delay for COOLING mode (used for compressors); Option to set a fixed offset for temperature or humidity (when changing the sensor wire length);

Password protection of parameters set in the temperature controller;

Non-volatile memory (EEPROM) for data storage;

Easy disconnection/connection to the controlled device - connection is made via quick couplers.

Extended operating voltage range - 100...240V, 50-60 Hz

This controller can also be used as a hygrostat, hygrometer, humidity or density meter (hygrometer, hygrometer), thermostat, thermal relay or in other words a relay for measuring humidity levels and air temperature!

Warning!!!

Observe polarity when connecting the temperature sensor - failure to do so may lead to incorrect operation of the temperature controller and damage to the sensor.

When connecting the controller to the power supply, use a 250mA 250V fuse, use a cable with an appropriate cross-section, and observe the electrical safety rules.

For the signal contacts, use a shielded twisted pair cable with grounded shielding. Place this cable at the locations... Protect from strong electromagnetic fields, contactors or power cables.
