Programmable Digital Potentiometer, 0-10V, 100..240VAC and 24VDC/AC, Two Digital Inputs, 4-Digit LED, PTM-01, TENSE
- Regular price
- £39.00
- Regular price
-
- Sale price
- £39.00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Download
- Payment methods
- Warranty
0-10V digital potentiometer with wide voltage supply range and two digital inputs (+/-), TENSE (Made in Turkey)
The Tense PTM-01 is a microprocessor-based digital potentiometer designed to produce an analog output of 0-10V for use in industrial automation and control systems. It is manufactured by Tense Electronics, a Turkish company.
Key Features
- Analog Output: Provides a precise 0-10V DC analog voltage output (or 4-20mA in PTM-02).

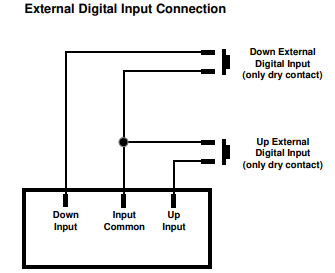

- User Control: Output values can be adjusted via up/down push buttons on the front panel or through external up/down digital inputs (dry contact only).
- Display: Features a bright and clear 4-digit, 7-segment LED display.
- Programmable Limits: The user can set adjustable upper and lower limits for the analog output and the set value.
- Wide range voltage supply.
- Memory: Settings are stored in EEPROM memory to retain them in case of power failure.
- Design: Compact, space-saving design intended for DIN rail or permanent panel installation.
- Applications: Ideal for applications such as motor speed control (VFDs), dimming systems, and PLC analog input management.
- Password protection.
TECHNICAL SPECIFICATION
- Dimensions: 35x77mm
- Panel Cut-out: 29x71mm
- Display: 4 Digits 7 Segment
- Analog Output: 0-10V
- 0-10V Load Imped.: >5K
- Resolution: 2mV (0-10V)
- Accuracy:±%1;(Over full scale)
- User Control: Via Up/Down Front Panel Keys or Up/Down Digital Inputs
- Digital Inputs: Dry contact input only
- Supply Voltage: 100..240VAC, 50-60Hz or 24VDC/AC.
- Power Consumption: < 6VA
- Humidity: 80% up to 30oC, then linearly decreases to 50% at 50oC (non-condensing)
- Altitude: < 2000 m
- Protection Class: IP20
- Operation Temp.: 0 .. 50 oC
- Storage Temperature: -10oC .. 60oC (no icing)
- Weight: < 0.5 kg
