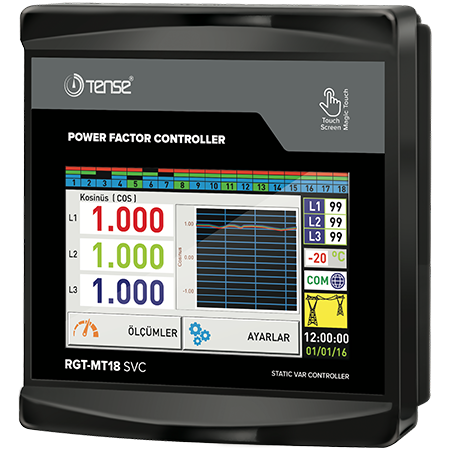

RGT-MT18 - Reactive power controller 18 level +TCR with RS485 ModBus

18 steps + TCR Power factor controller for symmetrical/asymmetrical networks with 5 inch touch screen and RS-485 (TENSE)

Reactive power control relays are designed to reduce reactive power (inductive and capacitive) that is not used by the load and is drawn from the grid. When inductive power is drawn from the grid, it intervenes by removing a capacitor at an appropriate value. If the capacitive power is drawn from the mains, it intervenes by taking a shunt inductor at the appropriate value. In this way, it attempts to reduce the inductive/active and capacitive/active speeds of the system. It is designed to provide more reasonable compensation in unbalanced inductive and capacitive systems with the RGT-MT18 TCR step

• Generator input and generator compensation

• Voltage, harmonic current/voltage, inductive and capacitive alarm output

• Hit, discharge and settling times can be adjusted

• Remote communication with RS485 (RS485 ModBus RTU)

• Single-phase, two-phase and three-phase capacitor and shunt reactor can be connected

• Harmonic voltage and current can be observed up to 61st harmonics

• Total energy (import/export) can be monitored

• THD-V and THD-I values of each phase can be observed

• Create power analysis (20 samples 9999 min.) - for capacitor selection

• Temperature alarm output

• Demand registration (active and reactive and apparent power and current demand)

• Minimum, maximum and average current and voltage values of each phase can be monitored

• Actual date and time
