Roof fan, switchboard fan, 560m3/h, 230VAC, 364x364x107mm, IP54, PTS5500
- Regular price
- £299.48
- Regular price
-
- Sale price
- £299.48
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty

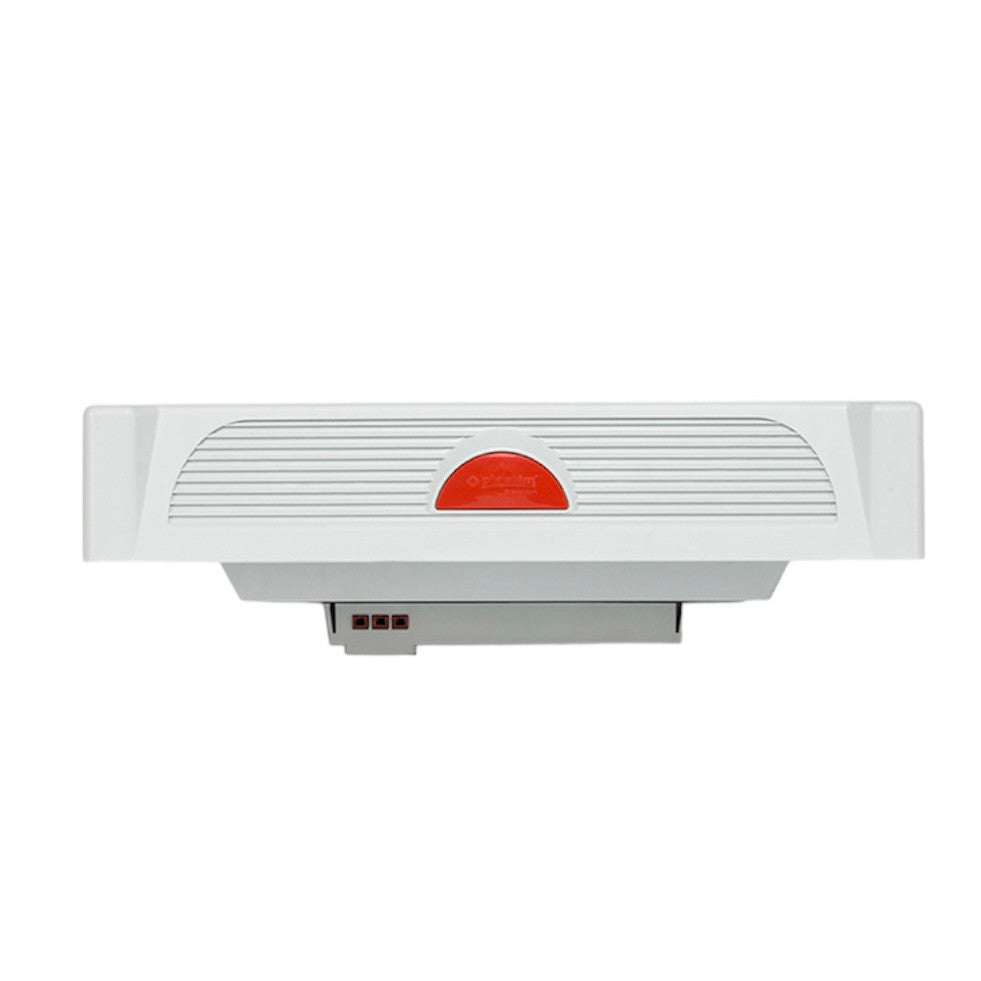

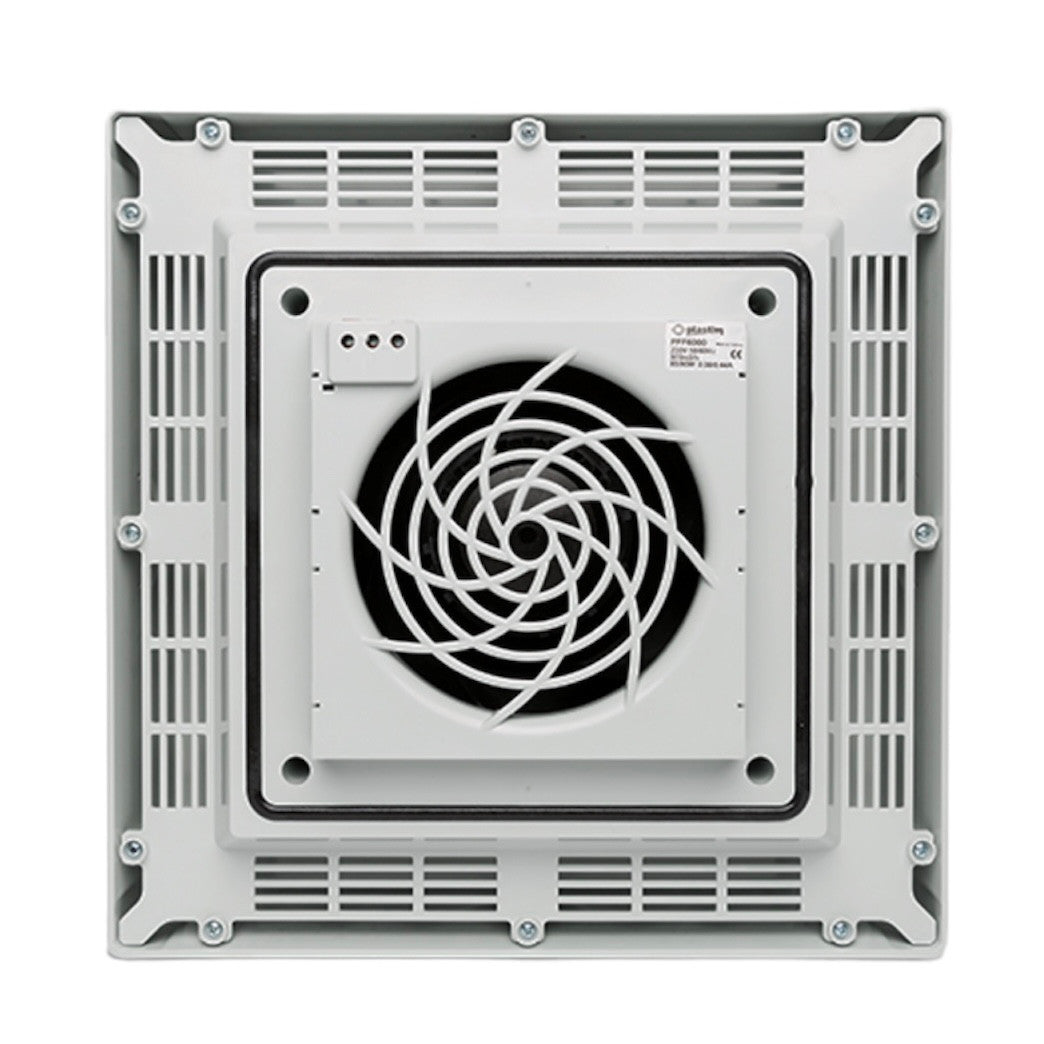

Fan in housing for installation on the roof of the switchboard, PTS5500, PLASTIM (Türkiye)
This fan is designed for use in a microclimate system in a distribution board or automation panel and is typically used with a PTVT or PTHVT thermostat. It is installed on the roof of the enclosure, allowing excess hot air to be extracted from the enclosure volume as efficiently as possible.
Although the fans have the same overall dimensions, they differ in the volume of air emitted and noise level.
- External dimensions: 364x364x107 mm
- Installation size: 178x178mm
- Volume flow rate: 560 m3/h
- Noise level: 62 (64) dB(A)
- Bearing: Ball bearing
- Lifetime: 50000 h
- Operating voltage: 220-230VAC, 50/60Hz
- Current consumption: 0.26/0.34 A
- Power rating: 58/75 W
- Electrical connection: 3-pole 2.5 mm2 terminal
- Direction of flow: Air flow is directed from inside to outside of the cabinet
- Operating temperature: -10/+70 °C
- Degree of protection: IP54
- Plastic material: UL94 V0 ABS Flame retardant
- Seal: Polyurethane seal
- Colour: RAL 7035
- Weight: 3.16 kg
- Installation: Fast Clip-on
To provide automatic air exchange and temperature maintenance with this fan you will need either a simple bimetal thermostat or a more complex temperature controller, both devices can be purchased on our website.
Online card / PayPal payment - after completing the order, you will be redirected to the payment gateway, payment confirmation will be sent to your email.
Bank deposit- you will transfers money from you bank account into our bank account to complete your purchase. You will receive an invoice to your email no later than the next working day.
We warrant that on delivery, and for a period of 12 months from the date of delivery any products which are goods shall:
- conform in all material respects with their description and any relevant specification;
- be free from material defects in design, material and workmanship;
- be of satisfactory quality
- In the event of any goods being materially defective, we will replace or repair the product or refund the purchase price.
These warranties shall not apply to any defect which arises from improper use, failure to follow the product instructions, or any repair or modification made without our consent.
