Vendor: TENSE

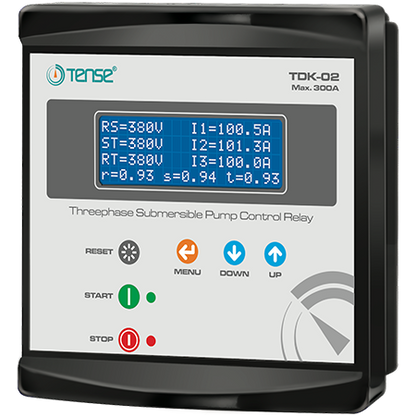

Panel Mount Submersible 3 ph Well Pump Controller, for deep well and tank water levels, 3 CTs included, TDK, TENSE

SKU: TDK-02
£147.00
£147.00
Low stock: 3 left
Pump current: 2-300A
  • Description
  • Download
  • Payment methods
  • Warranty

Well-PUMP-Tank , Panel Mount Submersible 3 phase Pump Controller, 3 Current Transformers are included, TDK, TENSE (Turkey)

TENSE water level / submersible pump controller TDK is designed to control process of proper work for a well-pump-tank combination. It offers a wide variety of functions, such as dry run protection, high/low voltage protection, high/low current protection, asymmetry protection, password protection, incorporates alarm outputs, Star/Delta output and many more features listed below.

Features

  • 2A – 300A Pumps control
  • Easy Installation and Operation with 4×20 Graphic LCD Display
  • Without Neutral
  • Ability to Work without Electrode
  • High and Low Cosine Set
  • High/Low Voltage Protection
  • High/Low Current Protection
  • Voltage Asymmetry Protection
  • Upper Electrode Waiting Time
  • Liquid Sensitivity Adjustable
  • Keeps Error Records
  • Star-Delta Contact Output
  • Flasher Mode
  • Continuation from the Last Working Position (Start/Stop)
  • Report Engine Maintenance Time
  • Manual, Semi-Automatic and Automatic Reset Mode
  • External Start Stop Input
  • 2 Adjustable Alarm Outputs
  • 50Hz and 60Hz Operating Frequency Selection
