Heating-Cooling Digital Thermostat / Temperature controller, 0.1 °C resolution, ON-OFF, panel mount, -19.9 °C - +99.9 °C, 2 relay outputs NO+NC

Digital Thermostat / Temperature controller / Temperature meter, ON-OFF, panel mounted, -19.9 °C - +99.9 °C, 2 relay outputs NO+NC, NTC probe, TENSE (Turkey)

Compact panel mounted DT-322 TENSE digital thermostat is low cost single set point temperature controller for heating and cooling applications such as:

• HVAC
• catering
• water heating control
• cooling fans
• refrigerated cabinets
• water/air temperature
• incubators,
• R&D and lab equipment,
• hot plates
• furnaces
• plastic processing machines.

Easy to set up, clear 3 digit red color display, sensitive touch keyboard, easy mount/dismount, wide temperature range and high accuracy make DT-322 economical solution for any environment or occasion.

DT-322 features

• Measuring and Control Scale: -19.9 °C - +99.9 °C
• Step/Resolution: 0,1°C
• Microprocessor Based
• Probe Type: NTC
• ON-OFF Control Form
• OUT and ALARM Outputs
• Selectable Heating and Cooling Function
• Upper and Lower Limit for SET and ALARM Settings
• Adjustable Separate Hysteresis for SET and ALARM Settings
• Selectable Relative, Absolute or Band Alarm
• ON-delay for OUT in Cooling Mode
• Adjustable ON/OFF Timers for OUT Output in Case of Sensor Failure
• Input “Offset" Feature
• Excellent Linearity with °C/mV and °C/W Look-up Tables
• Password Protection
• High Accuracy
• EEPROM Memory to Store Settings
• Easy Connection with Plug-in Connectors

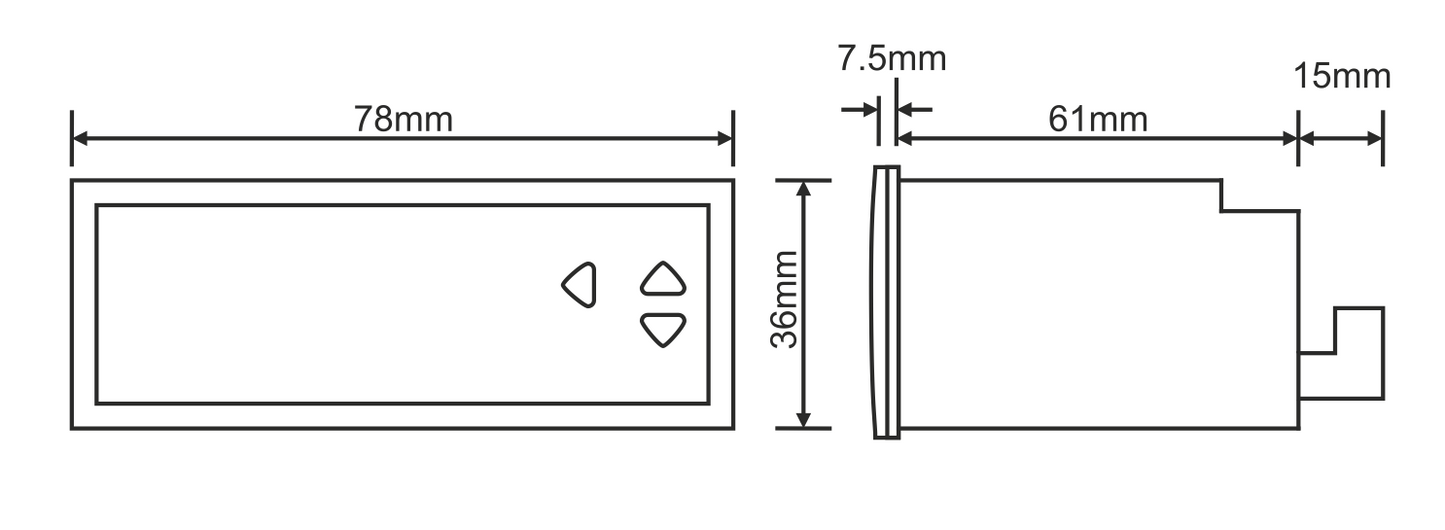

• Dimensions 35x77x84mm, panel cut-out 29x71mm
• Supply voltage: 100...240V AC, 50/60Hz

Simple NTC probe supplied together with this temperature controller has -30 °C – +105°C temperature range. If you need another probe please follow this link.

Scope of delivery:

1x DT-322 temperature controller with mounting brackets
1x NTC (probe), length of the wire is approximately 145 cm.*
1x user manual (English)

* - You can add up to 15 meters but need to adjust parameter "oFS" (please see "Programming Parameters" section in the User manual) to compensate additional wire resistance.
